1000ft 4 Pair CAT8 22 AWG Solid Shielded S/FTP CMP Plenum Bu
Click the image to zoom

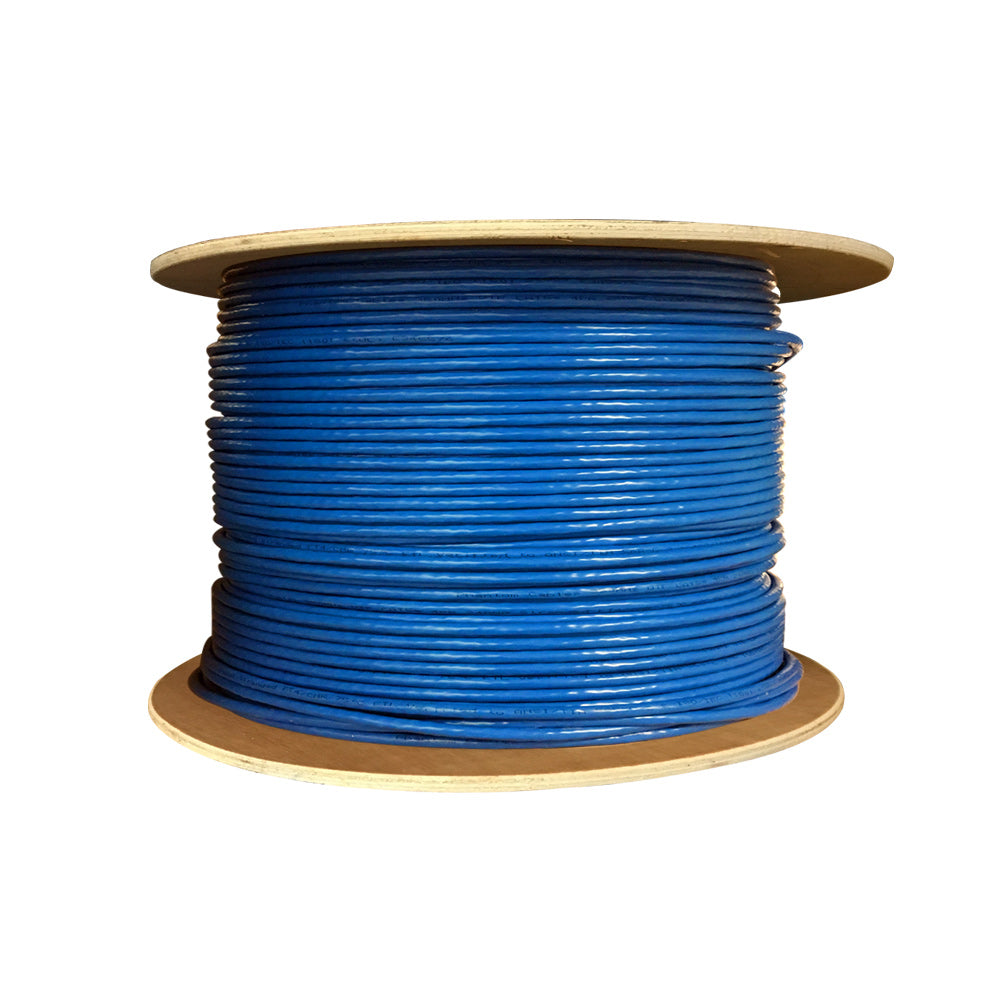

1000ft 4 Pair CAT8 22 AWG Solid Shielded S/FTP CMP Plenum Bulk Cable - BLUE
$2,371.25
In stock
— ships in 1 business day
Description
This bulk plenum rated Cat8 cable is 1000 feet in length and consists of 4 pairs of 22AWG solid wires with individually foil shielded pairs plus an overall braid. It is designed for use in data centers and server rooms for high-speed switch-to-switch communications, typically supporting 25G and 40G networks. The cable is riser (CMP) rated and ETLus / c(UL)us and CSA listed, RoHS and REACH Compliant. It is typically used in plenum environments terminated directly onto a CAT8 patch panel or CAT8 jack.
Features:
Applications
Specifications
1000ft 4 Pair CAT8 22 AWG Solid Shielded S/FTP CMP Plenum Bulk Cable - BLUE
This bulk plenum rated Cat8 cable is 1000 feet in length and consists of 4 pairs of 22AWG solid wires with individually foil shielded pairs plus an overall braid. It is designed for use in data centers and server rooms for high-speed switch-to-switch communications, typically supporting 25G and 40G networks.
Cable Length: 1000 foot [305m]
Cable Diameter: 8.2 mm
Number of Pairs: 4 Pairs
Wire Gauge: 22 AWG Solid
Conductor Material: 100% Bare Copper
| Product | 1000ft 4 Pair CAT8 22 AWG Solid Shielded S/FTP CMP Plenum Bulk Cable - BLUE |
| Cable Length | 1000 foot [305m] |
| Cable Diameter | 8.2 mm |
| Number of Pairs | 4 Pairs |
| Wire Gauge | 22 AWG Solid |
| Conductor Material | 100% Bare Copper |
| Braid | Tinned Copper (>40 % coverage) |
| Insulation | Foam Polyolefin (PO) |
| Color code & Diameter | Blue & White : 1.50± 0.02 mmOrange & White : 1.50± 0.02 mmGreen & White : 1.50± 0.02 mmBrown & White : 1.50± 0.02 mm |
| Jacket Material | Low smoke flame retardant polyvinyl chloride (LSFRPVC |
| Jacket Rating | CMP [Plenum Rated] |
| Jacket Outer Diameter | 8.2mm±0.2mm |
| Jacket Nominal Thickness | 0.45±0.05mm |
| Pair Shield | Al Mylar tape (100 % coverage and aluminum side facing out) |
| Temperature Range | Operation : -20°C to 60°CInstallation : 0°C to 60°CStorage : -20°C to 75°C |
| Minimum Bending Radius | ≥4 times of overall diameter |
