RG6 18AWG Bare Copper 60% AL Braid +100% Foil 75 Ohm CMR Bul
Click the image to zoom
RG6 18AWG Bare Copper 60% AL Braid +100% Foil 75 Ohm CMR Bulk Cable
$128.75
In stock
— ships in 1 business day
Description
This bulk RG6 cable consists of a 18AWG solid center conductor. It is ideal for CATV video applications.
Specifications

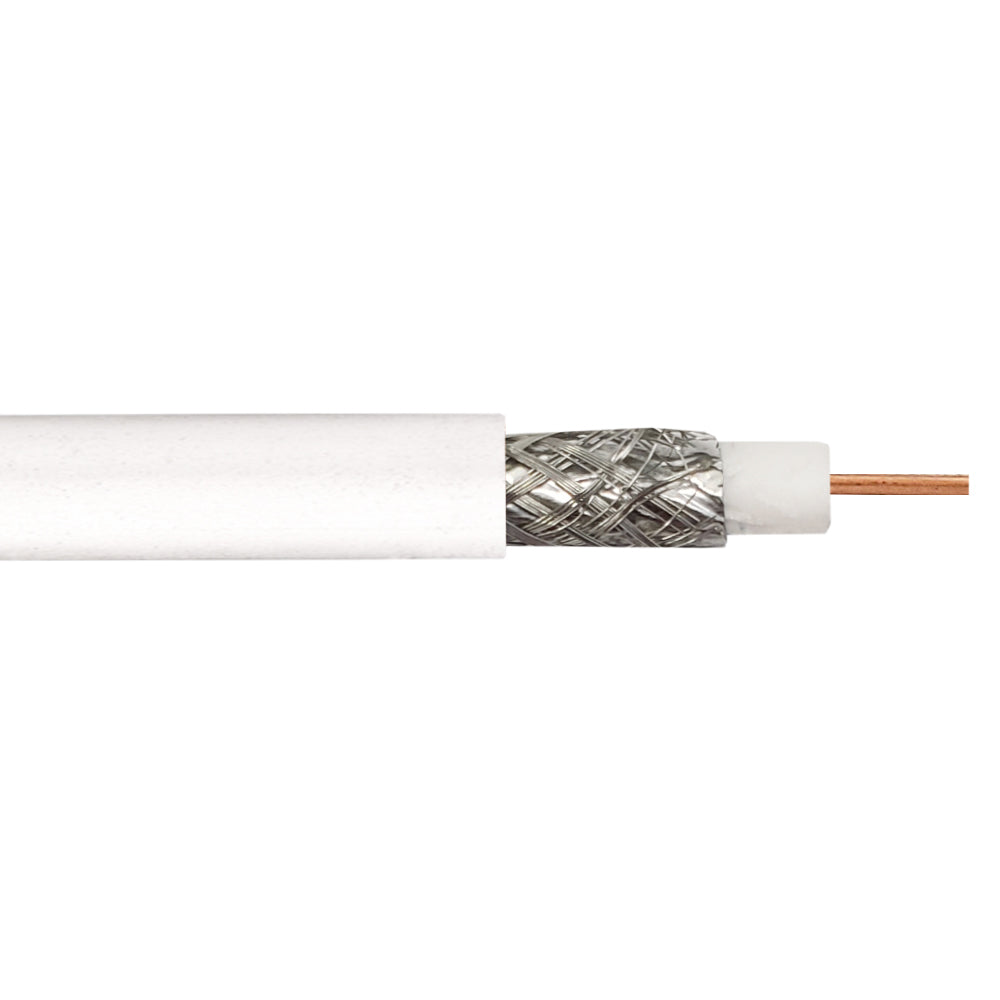

RG6 18AWG Bare Copper 60% AL Braid +100% Foil 75 Ohm CMR Bulk Cable
This bulk RG6 cable consists of a 18AWG solid center conductor. It is ideal for CATV video applications.
Cable Lengths Available: 250 foot1000 foot Pull Box
Color: Black/White
Cable Diameter: 6.90mm
Wire Gauge: 18AWG
Inner Conductor: 1/1.02mm Solid Bare Copper - Oxygen-Free
| Product | RG6 18AWG Bare Copper 60% AL Braid +100% Foil 75 Ohm CMR Bulk Cable |
| Cable Lengths Available | 250 foot1000 foot Pull Box |
| Color | Black/White |
| Cable Diameter | 6.90mm |
| Wire Gauge | 18AWG |
| Inner Conductor | 1/1.02mm Solid Bare Copper - Oxygen-Free |
| Insulation | 4.57mm Foamed Polyethylene |
| Shield 1 | Bonded Aluminum Foil |
| Shield 2 | 5*16*0.12mm 60% AL |
| Jacket Material | PVC - Polyvinyl Chloride |
| Jacket Rating | CMR/FT4 [Riser Rated] |
| Impedance | 75±3Ω |
| Capacitance | 54±3pF/m |
| Return Loss | 20dB Min |
| Operating Temperature | -20℃ ~ 75℃ |
| c(ETL)us | Compliant |
