Flexible Electrical Cord Cable - 14AWG 3C SOOW 600V 90C - Bl
Click the image to zoom

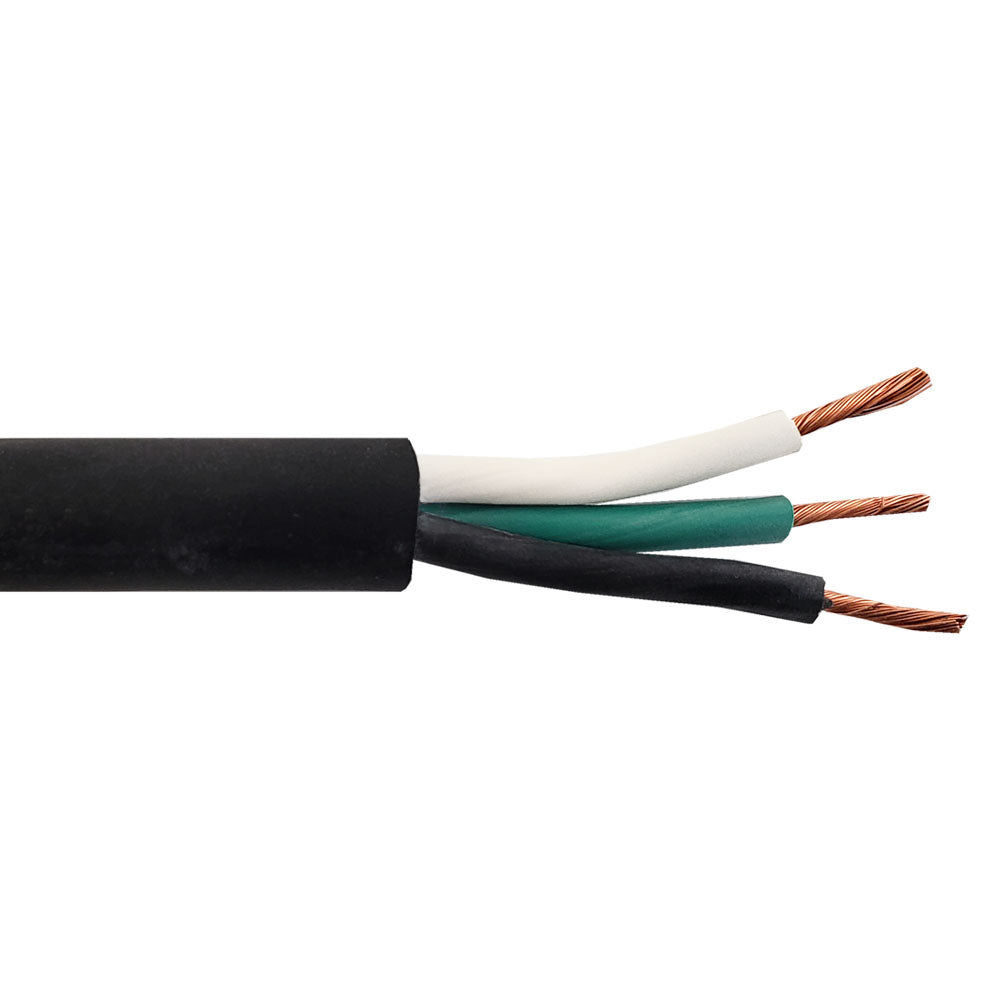

Flexible Electrical Cord Cable - 14AWG 3C SOOW 600V 90C - Black (Per Meter)
$7.55
In stock
— ships in 1 business day
Description
This bulk power cable consists of three 14 gauge conductors with a 600V SOOW jacket. It is typically used with industrial and processing equipment, cranes and hoists, track systems, construction equipment and other electrical equipment. It has excellent flexibility, resistance to oil, solvents, ozone, weather, sunlight and water. The cable is sold in bulk per meter.
Features:
Specifications
Flexible Electrical Cord Cable - 14AWG 3C SOOW 600V 90C - Black (Per Meter)
This bulk power cable consists of three 14 gauge conductors with a 600V SOOW jacket. It is typically used with industrial and processing equipment, cranes and hoists, track systems, construction equipment and other electrical equipment. It has excellent flexibility, resistance to oil, solvents, ozone, weather, sunlight and water.
Color: Black
Color Code: ICEA S-58-679, Method 1, table 1; black, white, green
Wire Gauge: 14AWG
Wire Standard: SOOW
Number of Conductors: 3
| Product | Flexible Electrical Cord Cable - 14AWG 3C SOOW 600V 90C - Black (Per Meter) |
| Color | Black |
| Color Code | ICEA S-58-679, Method 1, table 1; black, white, green |
| Wire Gauge | 14AWG |
| Wire Standard | SOOW |
| Number of Conductors | 3 |
| Conductor Material | Flexible Stranded Bare Copper, ASTM B-174 and UL 62 |
| Insulation Material | EPR Compound, 90℃ compound class 3, table 8, UL 62 |
| Assembly | Insulated conductors cabled together with integral filled or rubber fillers |
| Separator | Talc for 18-10 AWG |
| Number of Power Conductor Stranding | 41 / 30 |
| Nominal Insulation Thickness | 1.14mm |
| Nominal Jacket Thickness | 2.03mm |
| Nominal Outer Diameter | 13.3mm |
| Jacket | Black CPE 90℃ compound class 1.4, table 22, UL 62 |
| Jacket Fire Rating | VW-1, FT2, and MSHA |
