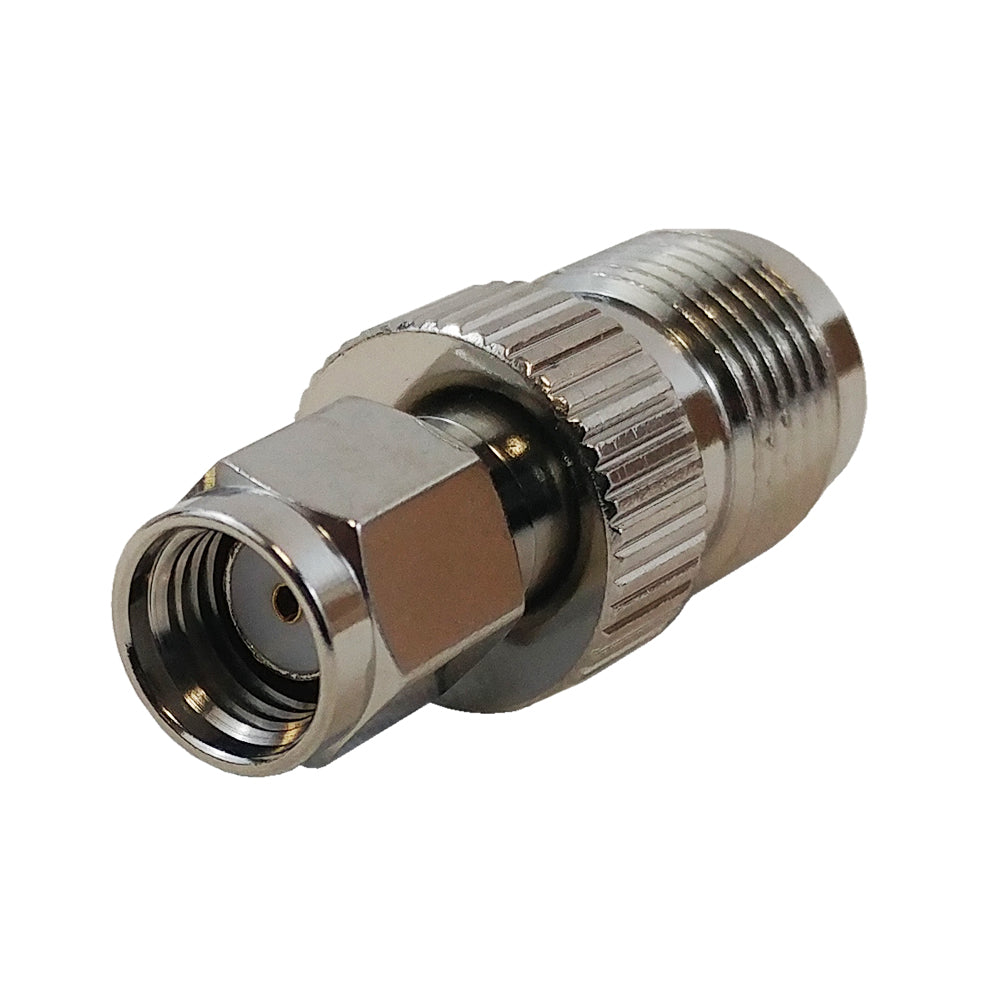

SMA-RP Male to TNC-RP Female Adapter
$6.81
In stock
— ships in 1 business day
Description
This adapter consists of a SMA-RP (reverse polarity) male on one end and a TNC-RP (reverse polarity) female on the other. It is typically used to convert a TNC-RP male cable to a SMA-RP male cable.
Specifications
SMA-RP Male to TNC-RP Female Adapter
This adapter consists of a SMA-RP (reverse polarity) male on one end and a TNC-RP (reverse polarity) female on the other. It is typically used to convert a TNC-RP male cable to a SMA-RP male cable.
Connector Plating: Nickel
Contact Material: Gold Plated Brass Copper
Insulator Material: Teflon
Temperature Range: -60°C ~ +85°C
Weatherproof: No
| Product | SMA-RP Male to TNC-RP Female Adapter |
| Connector Plating | Nickel |
| Contact Material | Gold Plated Brass Copper |
| Insulator Material | Teflon |
| Temperature Range | -60°C ~ +85°C |
| Weatherproof | No |
| Temperature Cycling | No Test |
| Moisture Resistance | No Test |
| Corrosion | No Test |
| Vibration | No Test |
| Connector A | SMA-RP Male |
| Connector B | TNC-RP Female |
| Impedance | 50 Ohm |
| Frequency Range | 0-3Ghz |
| Voltage Rating | No Test |
| Dielectric Withstanding Voltage | 500 VRMS min |
