DB9 Null Modem Slimline Gender Changer Male to Female
Click the image to zoom

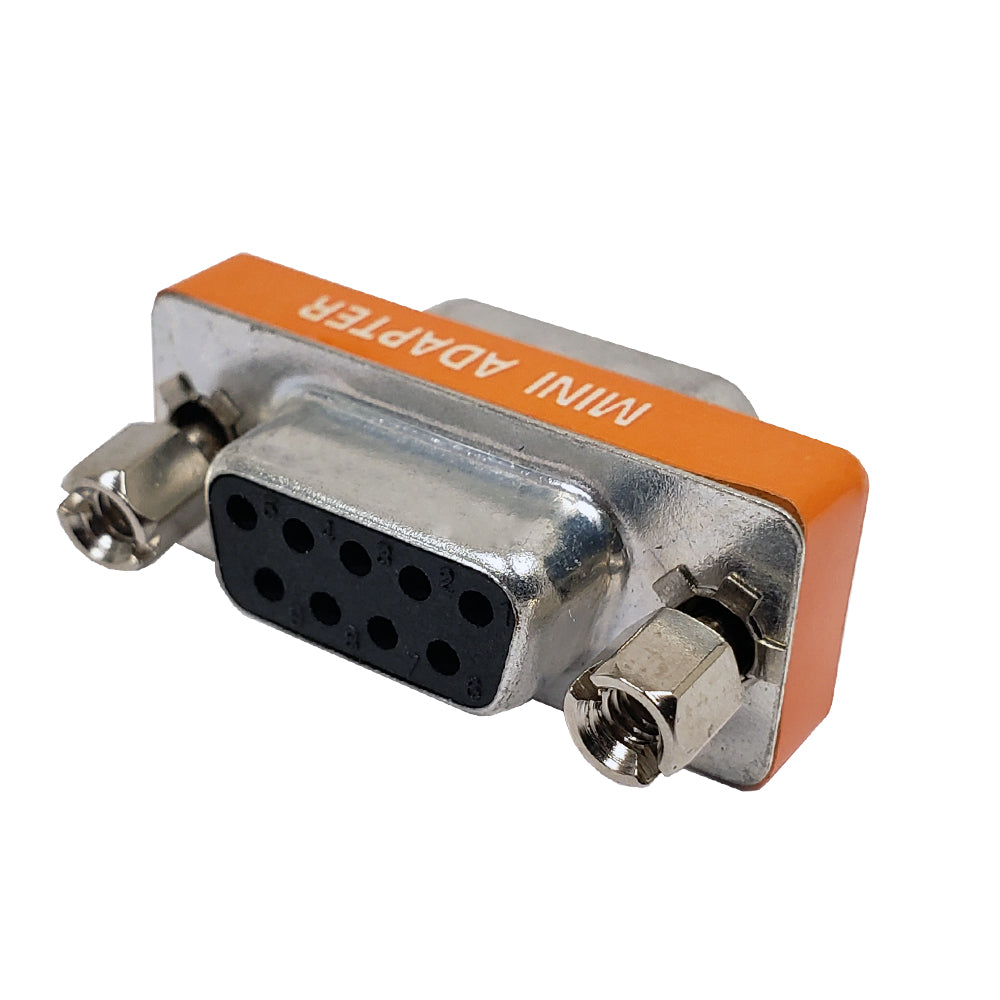

DB9 Null Modem Slimline Gender Changer Male to Female
$4.44
In stock
— ships in 1 business day
Description
This slimline null modem adapter consists of a DB9 male on one end and a DB9 female on the other. It is primarily used to convert a DB9 female straight through cable to a DB9 male null modem cable.
Specifications
DB9 Null Modem Slimline Gender Changer Male to Female
This slimline null modem adapter consists of a DB9 male on one end and a DB9 female on the other. It is primarily used to convert a DB9 female straight through cable to a DB9 male null modem cable.
Connector Plating: Nickel
Contact Plating: Brass Gold flash over Nickel Plated
Shell: SPCC Nickel Plated
Insulator: PBT+30%GF UL94V-0 Blue
Screw: Steel 12L14 Nickel Plated
| Product | DB9 Null Modem Slimline Gender Changer Male to Female |
| Connector Plating | Nickel |
| Contact Plating | Brass Gold flash over Nickel Plated |
| Shell | SPCC Nickel Plated |
| Insulator | PBT+30%GF UL94V-0 Blue |
| Screw | Steel 12L14 Nickel Plated |
| Pin Assignment | Null Modem |
| Body Style | Slimline |
| Dielectric Strength | 1000V AC for one minute |
| Insulation Resistance | 1000M Ohm min. at 500V DC |
| Temperature | -55°C ~ +105°C |
| Rating Current | 3 AMP |
| Connector A | DB9 Male |
| Connector B | DB9 Female |
| Packaging Quantity | 1 |
| Product Weight | 0.02 lbs [0.01 kg] |
