USB 3.1 Type-C to HDMI, 2x USB-A 3.0, USB Type-C, RJ45, SD/M
Click the image to zoom
USB 3.1 Type-C to HDMI, 2x USB-A 3.0, USB Type-C, RJ45, SD/Micro SD - DP 1.4 Alt Mode - Black
$55.13
In stock
— ships in 1 business day
Description

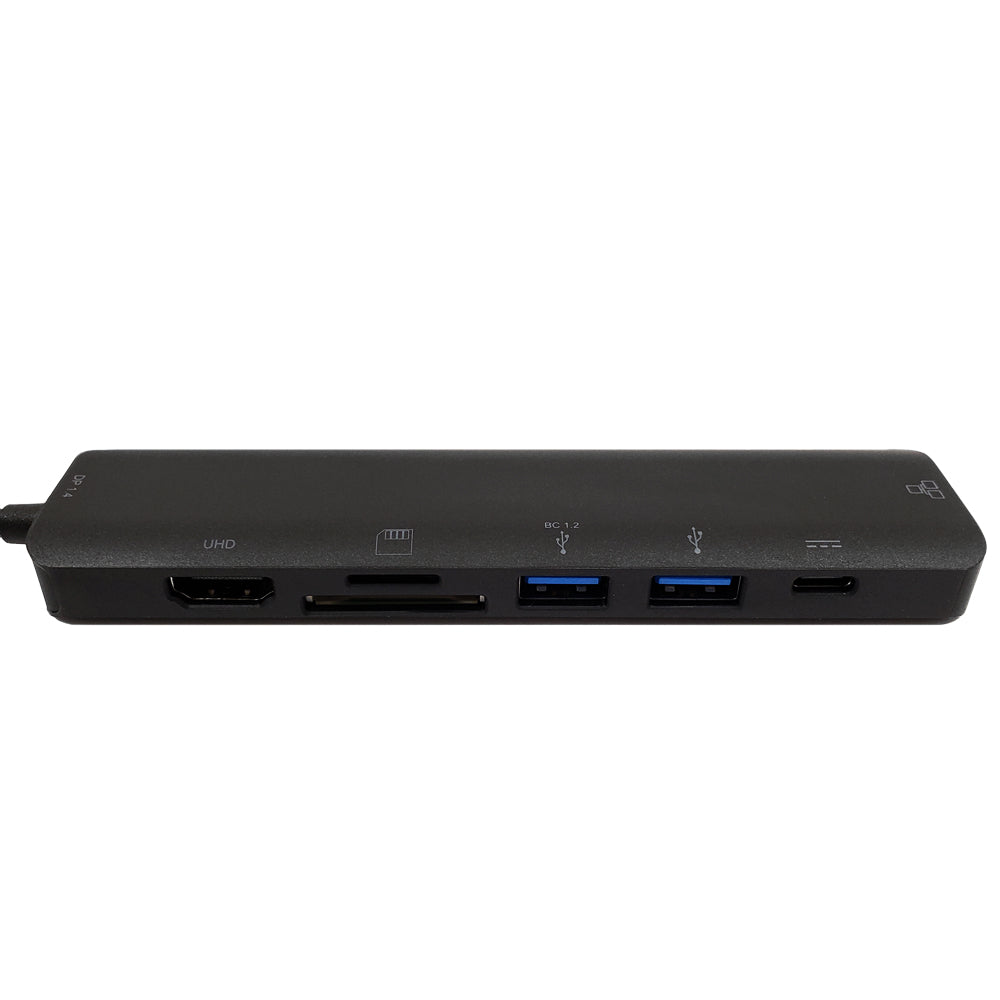

This USB 3.1 Type-C adapter consists of a USB 3.1 Type-C male connector on one end and a HDMI female, USB 3.1 Type-C female, two USB 3.0 A female ports, an RJ45 port and a SD/Micro SD slot on the other end. It allows you to connect additional devices through your USB Type-C port and create a permanent or temporary workstation. The USB Type-C port on the input side can be used to simultaneously charge your device. It can work on all Type-C and Thunderbolt 3 hosts that support DP Alt mode (including DP1.4 and DP1.2 Alt mode).
Note: When connecting a DP1.4 Alt mode supported host, the max resolution of HDMI is 4K@60Hz. When connecting a DP1.2 Alt mode supported host, the max resolution of HDMI is 4K@30Hz due to bandwidth limitation.
Specifications
USB 3.1 Type-C to HDMI, 2x USB-A 3.0, USB Type-C, RJ45, SD/Micro SD - DP 1.4 Alt Mode - Black
This USB 3.1 Type-C adapter consists of a USB 3.1 Type-C male connector on one end and a HDMI female, USB 3.1 Type-C female, two USB 3.0 A female ports, an RJ45 port and a SD/Micro SD slot on the other end. It allows you to connect additional devices through your USB Type-C port and create a permanent or temporary workstation.
Cable Length: 6 inches
Color: Black
Connector Plating: Nickel
Connector A: USB 3.1 Type-C Male
Connector B: HDMI Female
| Product | USB 3.1 Type-C to HDMI, 2x USB-A 3.0, USB Type-C, RJ45, SD/Micro SD - DP 1.4 Alt Mode - Black |
| Cable Length | 6 inches |
| Color | Black |
| Connector Plating | Nickel |
| Connector A | USB 3.1 Type-C Male |
| Connector B | HDMI Female |
| HDMI Resolution | Supports 4Kx2K@60Hz, 4:4:4, 8bit with 18Gbps bandwidthSupports 6/8/10/12 bit color depth outputSupports output pixel format RGB4:4:4/YCbCr4:4:4/YCbCr4:2:2Supports HDCP 2.2/1.4Supports HDR |
| USB Type A Ports | 1 USB-A supports BC 1.2 with max 7.5W (5V/1.5A) downstream charging, 2 USB-A share max 8W (5V/1.6A) downstream chargingMax 5Gbps bandwidth |
| RJ45 Port | 10M/100M/1000M |
| SD/Micro SD Slot | Supports Secure Digital v3.0 UHS-I (Ultra High Speed): SDR12 (12.5Mbytes/s) / SDR25(25Mbyte/s) / SDR50(50Mbyte/s) / SDR104(104Mbyte/s) |
| Supports | DP1.4 Alt mode, with bandwidth max 2 lanes 16.2Gbps (8.1Gbps per lane), Downward compatible with DP1.2 Alt modeNote: To get max bandwidth, the host should support standard DP1.4 Alt mode with DSC format |
| Compatibility | Compliant with USB 3.1,Backward Compatible with USB 3.0 and USB 2.0 |
| Windows Compliant | Compliant |
| Mac Compliant | Compliant |
| FCC | Compliant |
| CE | Compliant |
