USB 3.1 Type-C to Docking Station with PD Charging - Black
Click the image to zoom

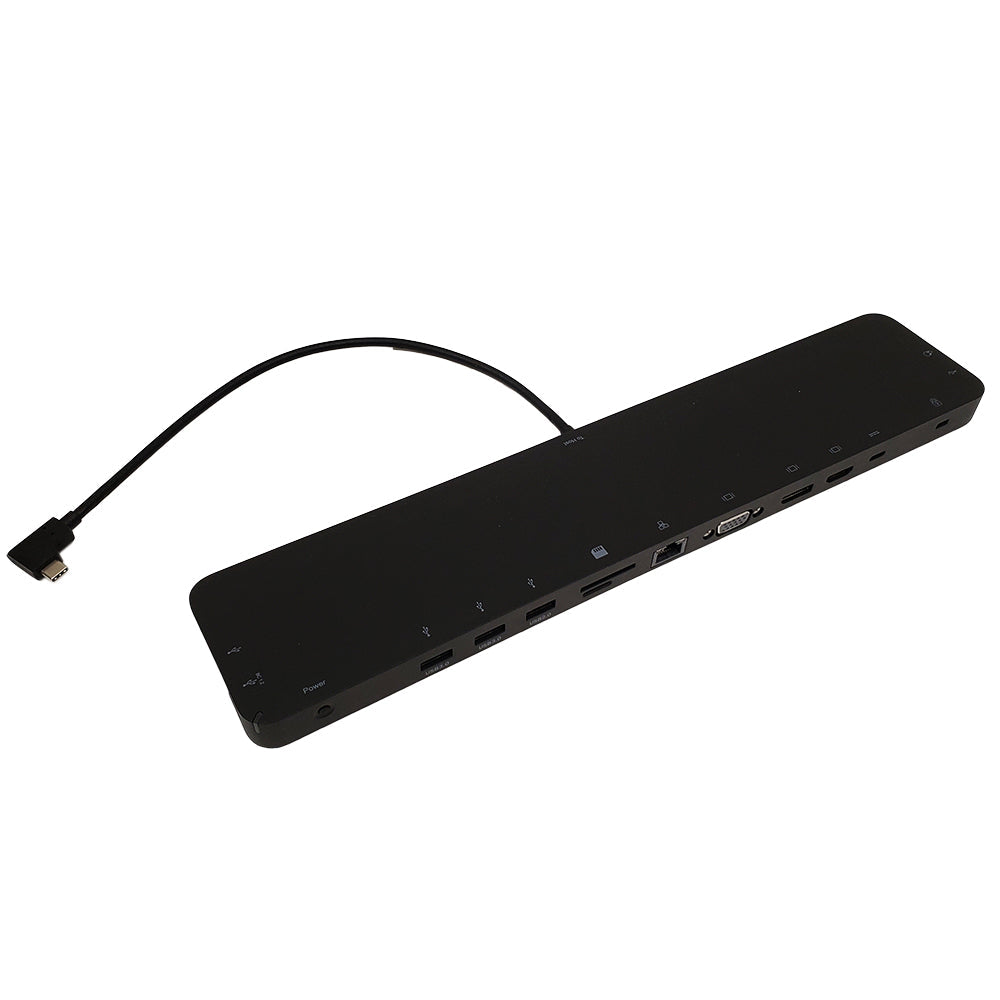

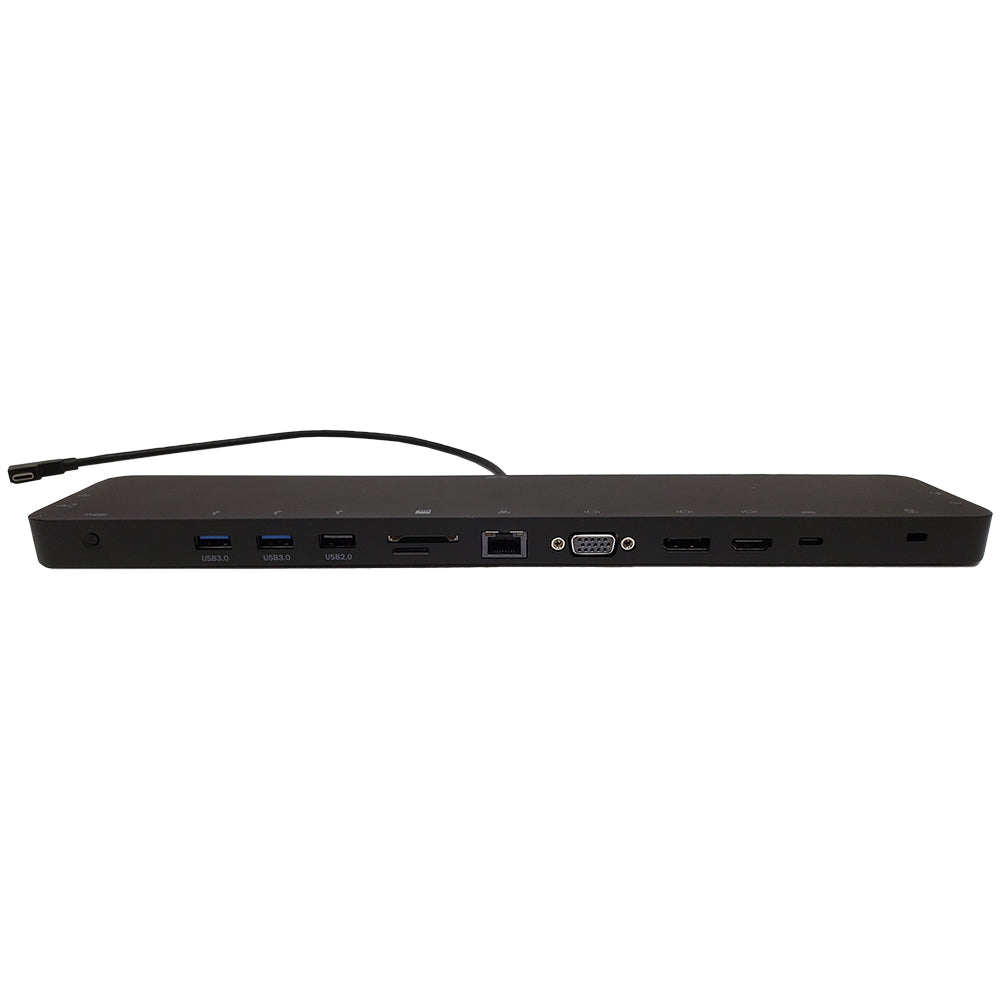

USB 3.1 Type-C to Docking Station with PD Charging - Black
$120.81
In stock
— ships in 1 business day
Description
This USB 3.1 Type-C adapter consists of a USB 3.1 Type-C female on one end and a Type-C female (PD charging), HDMI female, DP female, VGA female, RJ45 port, SD/Micro SD 3.0 slot, two USB-A 2.0 female, two USB-A 3.0 female, Type-C female (data) and combo audio jack on the other end. It allows you to connect additional devices through your USB Type-C port and create a permanent or temporary workstation.
Features
Specifications
USB 3.1 Type-C to Docking Station with PD Charging - Black
This USB 3.1 Type-C adapter consists of a USB 3.1 Type-C female on one end and a Type-C female (PD charging), HDMI female, DP female, VGA female, RJ45 port, SD/Micro SD 3.0 slot, two USB-A 2.0 female, two USB-A 3.0 female, Type-C female (data) and combo audio jack on the other end.
Cable Length: 6 inches
Color: Black
Connector Plating: Nickel
Connector A: Type-C Female
Connector B: Type-C Female (PD charging)
| Product | USB 3.1 Type-C to Docking Station with PD Charging - Black |
| Cable Length | 6 inches |
| Color | Black |
| Connector Plating | Nickel |
| Connector A | Type-C Female |
| Connector B | Type-C Female (PD charging) |
| Type-C Female (Connect Host at the bottom) | Supports DP1.2 Alt Mode, with max bandwidth of 21.6Gbps (5.4Gbps per lane) |
| Type-C Female (near USB-A, connect Type-C device) | Supports max 5Gbps data transmission and 1.5A downstream charging |
| USB3.0-A (near Type-C data port) | Support max 7.5W (5V/1.5A) downstream chargingSupport max 5Gbps data transmission |
| USB 3.0-A x 2 (near power switch) | Support max 5Gbps data transmissionSupport max 900mA downstream charging |
| USB 2.0-A x 2 | Support max 500mA downstream charging and 480Mbps data transmission |
| RJ45 | Support 10/100/1000 Mbps for Ethernet port |
| SD/Micro SD | Support Secure Digital v3.0 UHS-I (Ultra High Speed)?SDR12 (12.5Mbyte/s)/SDR25(25Mbyte/s)/SDR50(50Mbyte/s)/DDR50(50Mbyte/s)/SDR104(104Mbyte/s)Allow SD/Micro SD slots to work simultaneously |
| Combo Audio | Support both microphone and headphoneSupports 48KHz and CTIA |
| HDMI | Supports HDMI max resolution: 4k/30HzSupports 6/8/10/12 bit color depth outputSupports output pixel format RGB4:4:4/YCbCr4:4:4/YCbCr4:2:2Supports HDCP 1.4 |
| VGA | Supports VGA max resolution: 1920x1200/60Hz |
