6 inch DisplayPort v1.4 Male to HDMI Female 8K@60Hz Adapter, Active
$35.44
In stock
— ships in 1 business day
Description
This adapter consists of a DisplayPort v1.4 male on one end and a HDMI female on the other. It is used to connect a DisplayPort source to an analog HDMI display. It does not work from a HDMI source to a DisplayPort monitor.
Specifications
6 inch DisplayPort v1.4 Male to HDMI Female 8K@60Hz Adapter, Active
This adapter consists of a DisplayPort v1.4 male on one end and a HDMI female on the other. It is used to connect a DisplayPort source to an analog HDMI display. It does not work from a HDMI source to a DisplayPort monitor.

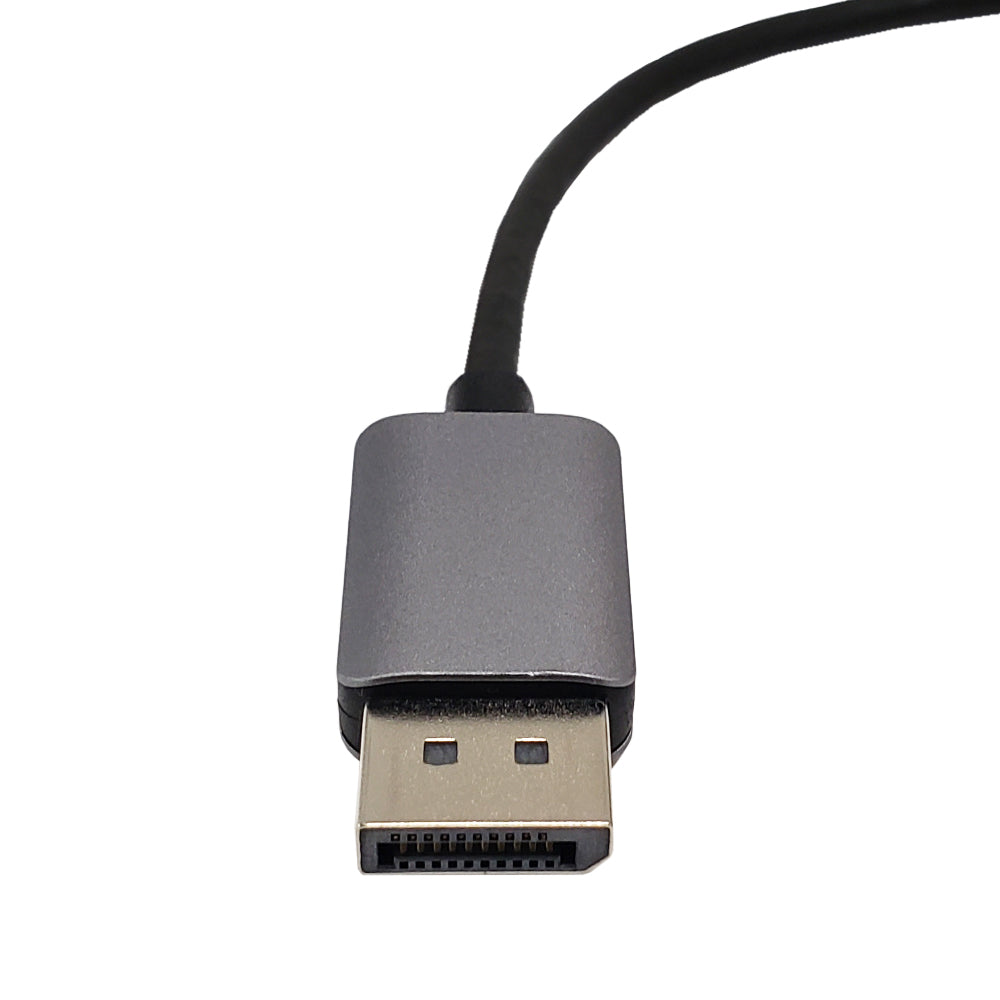

Connector A: DisplayPort Male v1.4

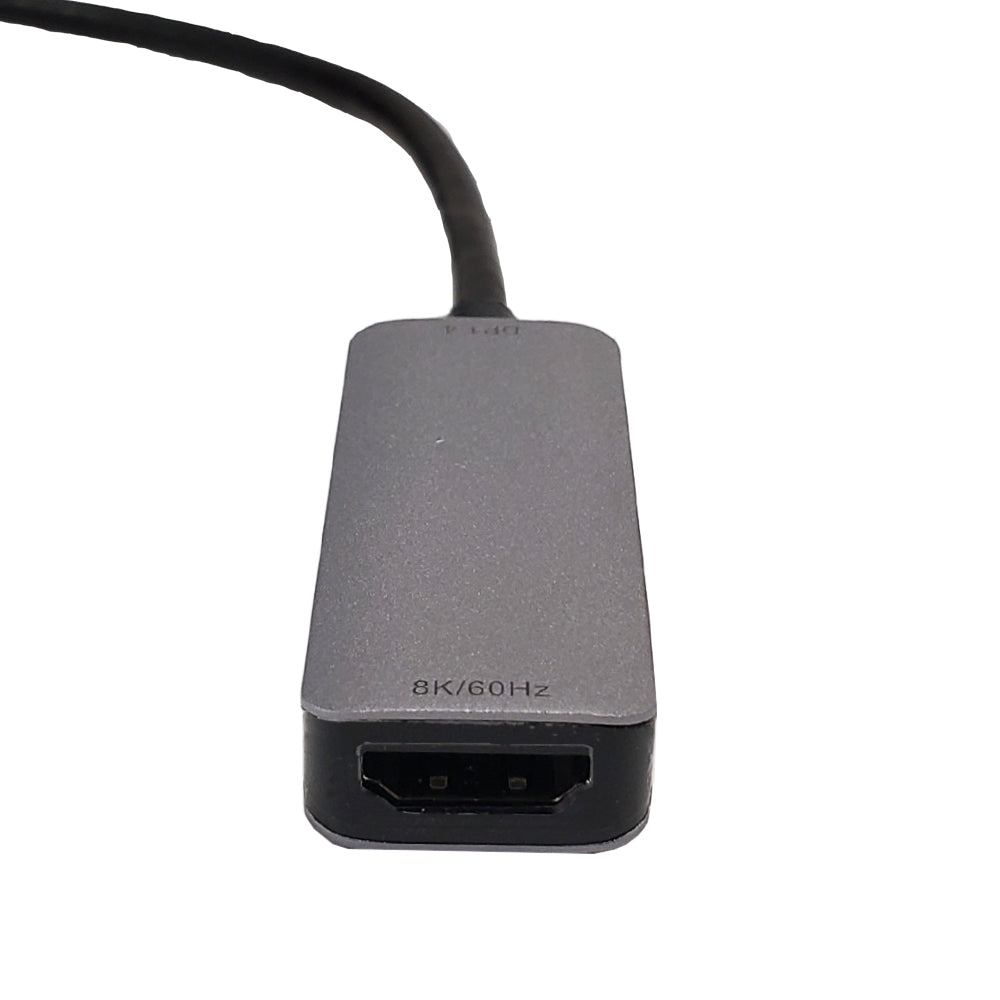

Connector B: HDMI Female
Resolution: 8K@60Hz
Supported Application: DisplayPort input and HDMI output
DisplayPort Features: Supports DP1.4Supports DSC1.1/1.2a or uncompressed videoSupports DSC 1.1/1.2a decoderSupports 8/10/12 bit color depthSupports pixel format RGB/YCbCr4:4:4/YCbCr4:2:2/YCbCr4:2:0
| Product | 6 inch DisplayPort v1.4 Male to HDMI Female 8K@60Hz Adapter, Active |
| Connector A | DisplayPort Male v1.4 |
| Connector B | HDMI Female |
| Resolution | 8K@60Hz |
| Supported Application | DisplayPort input and HDMI output |
| DisplayPort Features | Supports DP1.4Supports DSC1.1/1.2a or uncompressed videoSupports DSC 1.1/1.2a decoderSupports 8/10/12 bit color depthSupports pixel format RGB/YCbCr4:4:4/YCbCr4:2:2/YCbCr4:2:0 |
| HDMI Features | Supports Dynamic HDR10+Supports HDCP1.4 and HDCP2.3 specificationSupports HPDSupports DSC 1.1/1.2a decoderSupports 8/10/12 bit color depth outputSupports pixel format RGB/YCbCr4:4:4/YCbCr4:2:2/YCbCr4:2:0Supports 1 to 32 channels LPCM 192kHz audio outputSupports HBR audio up to 1536kHz |
| FCC | Compliant |
| CE | Compliant |
| RoHS | Compliant |
| Reach | Compliant |
| Conflict Minerals | Compliant |
| Packaging Quantity | 1 |
| Product Weight | 0.50 lbs [0.23 kg] |
