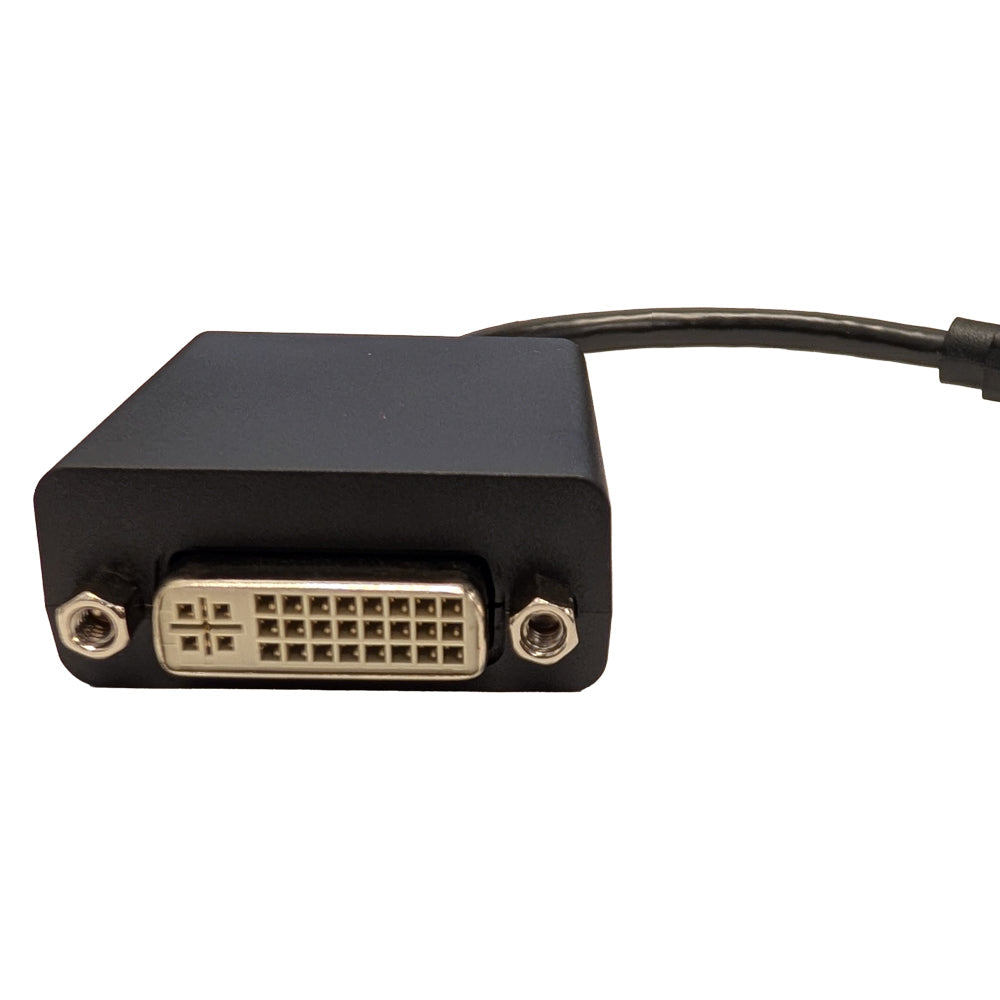

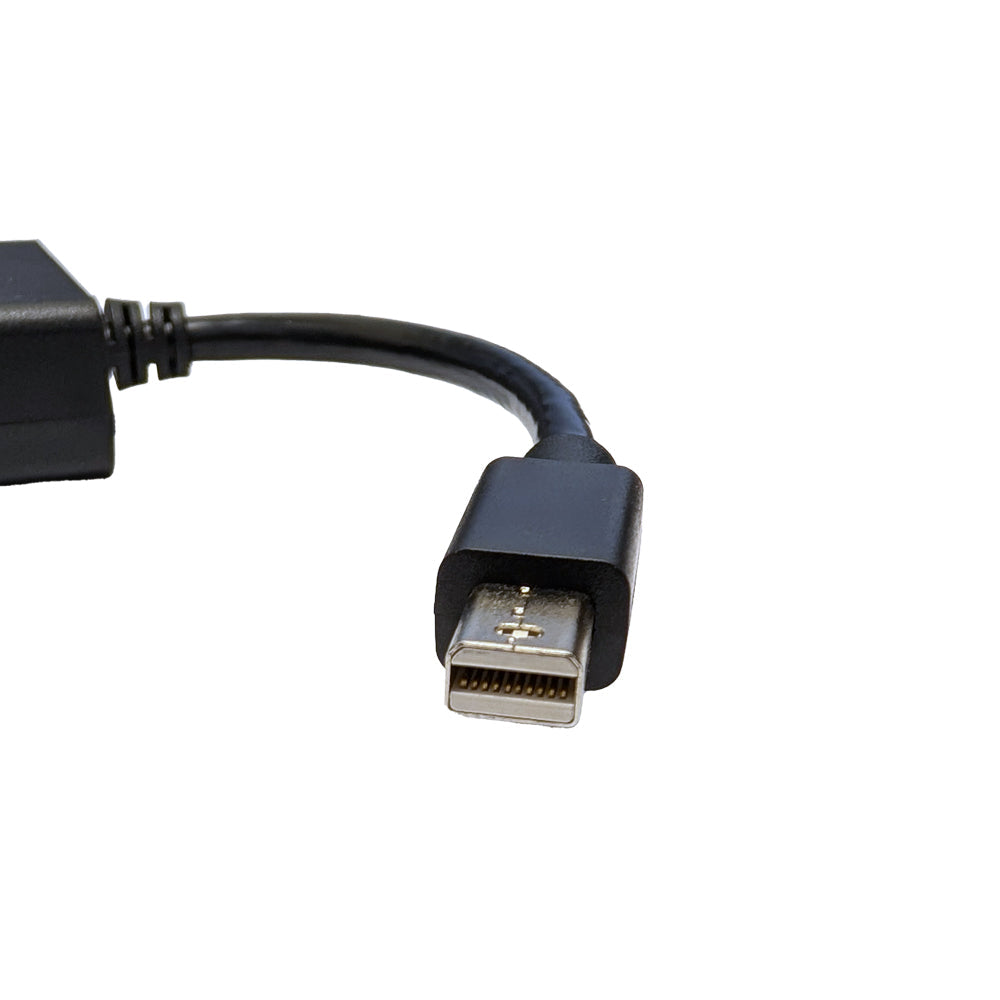

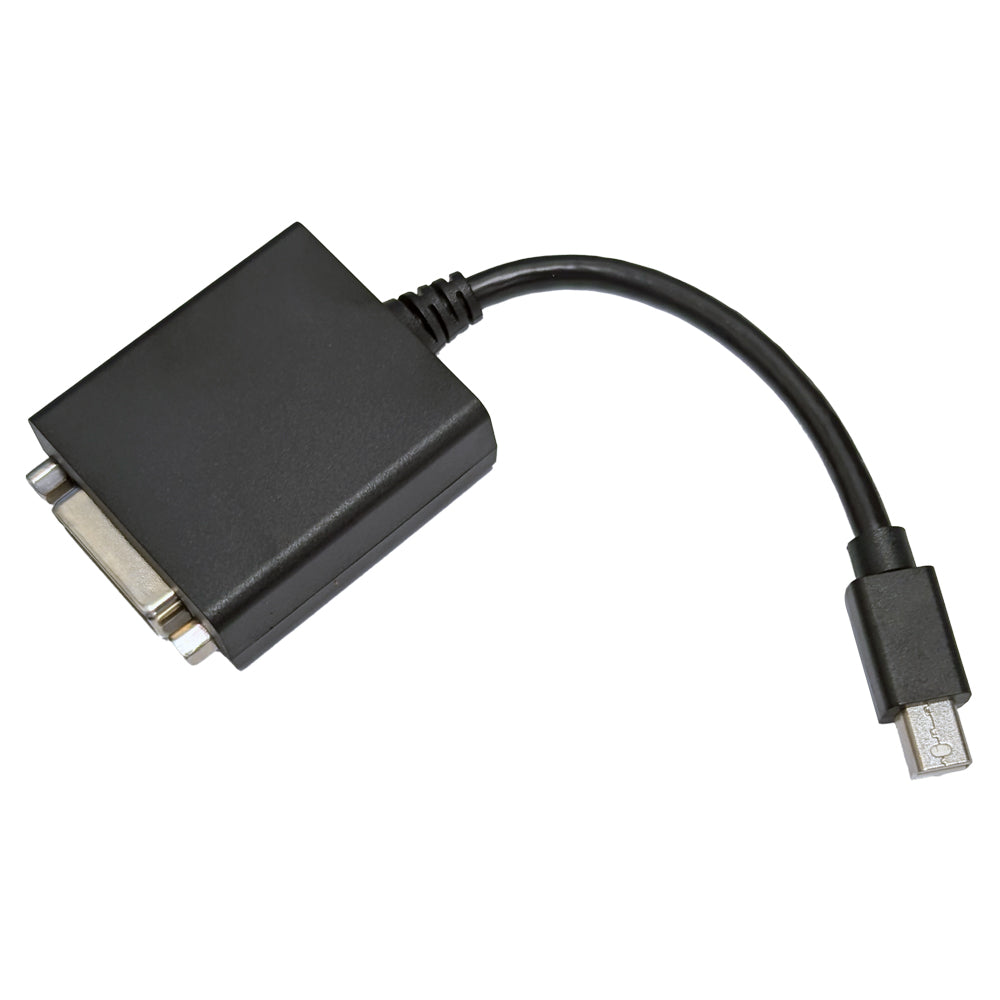

6 inch Mini-DisplayPort Male to DVI Single-link Female Adapter
$9.63
In stock
— ships in 1 business day
Description
This adapter consists of a Mini-DisplayPort male on one end and a DVI female on the other. It is primarily used to connect a Mini-DisplayPort devices such as MacBooks to a DVI monitor or projector.
Features:
Specifications
6 inch Mini-DisplayPort Male to DVI Single-link Female Adapter
This adapter consists of a Mini-DisplayPort male on one end and a DVI female on the other. It is primarily used to connect a Mini-DisplayPort devices such as MacBooks to a DVI monitor or projector. Features:
Cable Length: 6 Inch
Color: Black
Temperature Range: Operating : 0 ℃ to +45℃
Storage: -10℃ to +80℃
Humidity Range: Operating : 10% to 85 % RH (no condensation)
| Product | 6 inch Mini-DisplayPort Male to DVI Single-link Female Adapter |
| Cable Length | 6 Inch |
| Color | Black |
| Temperature Range | Operating : 0 ℃ to +45℃ |
| Storage | -10℃ to +80℃ |
| Humidity Range | Operating : 10% to 85 % RH (no condensation) |
| Storage | 5% to 90 % RH (no condensation) |
| Connector A | Mini-Display Port Male (20 Pin) |
| Connector B | DVI Female |
| Speed | DVI 225Mhz/2.25 Gbps per channel (6.75Gbps all channels) |
| Input Video Signal | 5 Volts p-p (TTL) |
| Maximum Single Link Range | 1920x1080P |
| Resolution | Interlaced(50&60Hz) : 480i, 576i, 1080i |
| Progressive(50&60Hz) | 480p, 576p, 720p, 1080p |
| Vertical Frequency Range | 50/60Hz |
| Power consumption (Max) | 3W |
