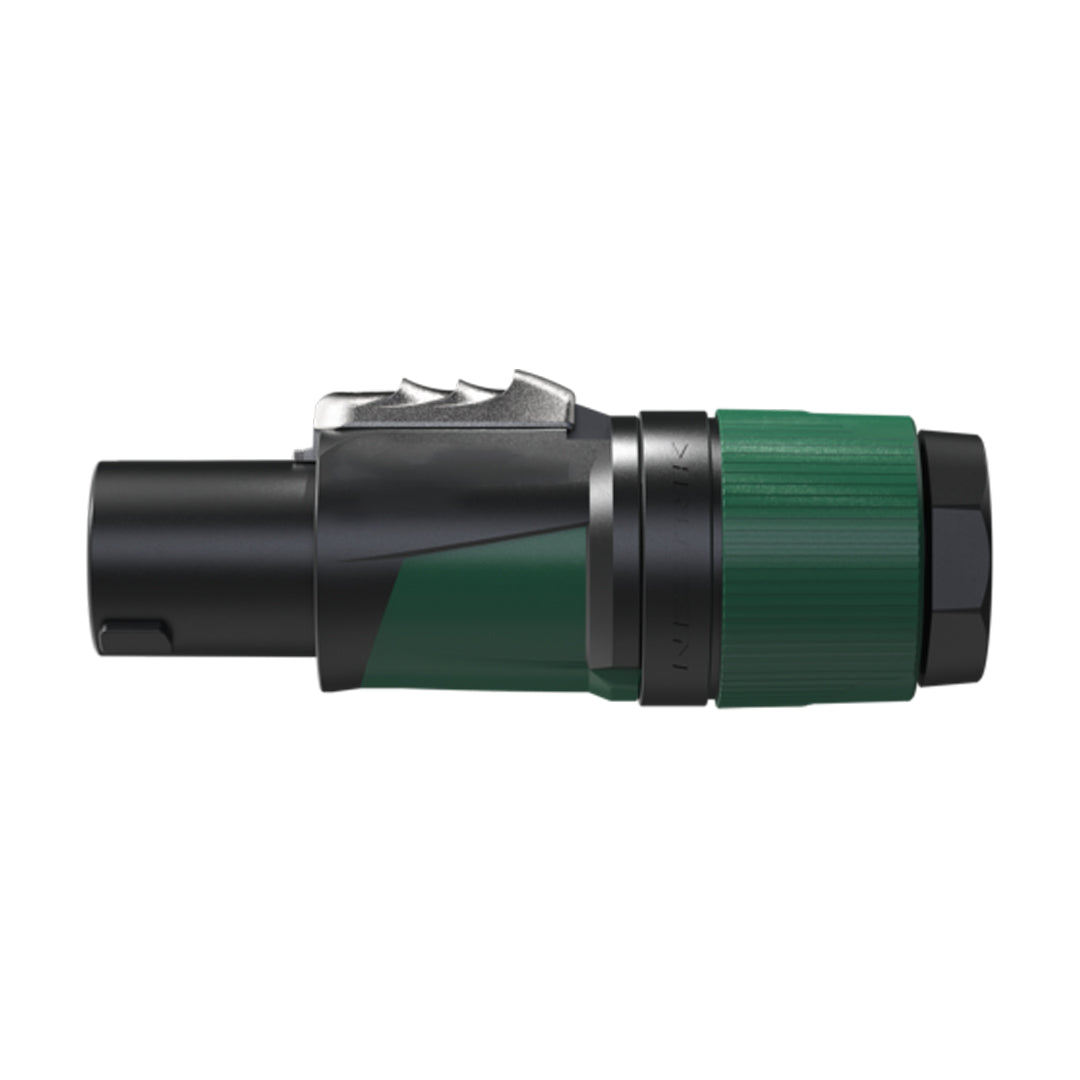

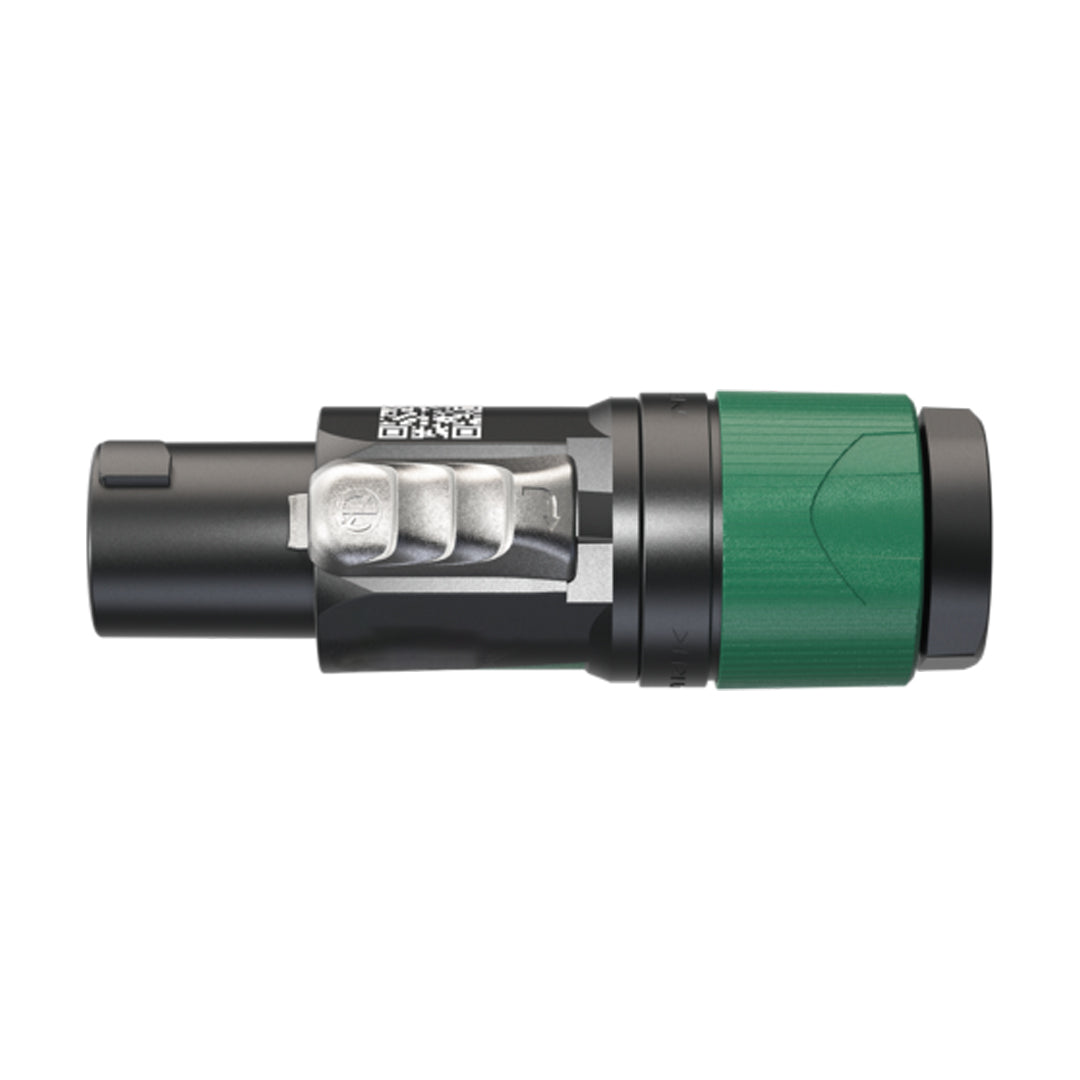

Neutrik 4-Pole speakON Connector (Female)
$12.56
In stock
— ships in 1 business day
Description
This connector is extremely robust and offers a reliable locking system as speaker cable terminations. It features solid contacts with screw-type terminals including a stranded wire protection which also offers solder termination.
Features:
Specifications
Neutrik 4-Pole speakON Connector (Female)
This connector is extremely robust and offers a reliable locking system as speaker cable terminations. It features solid contacts with screw-type terminals including a stranded wire protection which also offers solder termination. Features:
Color: Green
Connector Type: speakON
Temperature Range: -33℃ to +80℃
Contact Plating: Ag
Contacts: Copper Alloy
| Product | Neutrik 4-Pole speakON Connector (Female) |
| Color | Green |
| Connector Type | speakON |
| Temperature Range | -33℃ to +80℃ |
| Contact Plating | Ag |
| Contacts | Copper Alloy |
| Insert | Polyamide (PA6.6) |
| Locking Element | Zinc Diecast |
| Shell | Polyamide (PA6) / TPE |
| Strain Relief | Polyketone |
| Bushing | Polypropylene / TPE |
| Gender | Female |
| Contact Resistance | ≤ 2 mΩ |
| Dielectric Strength | 2.8 kVac |
| Insulation Resistance | > 10 GΩ (initially) |
| Number of electrical contacts | 4z |
