Neutrik 4-Pole speakON Male to Male Coupler
Click the image to zoom

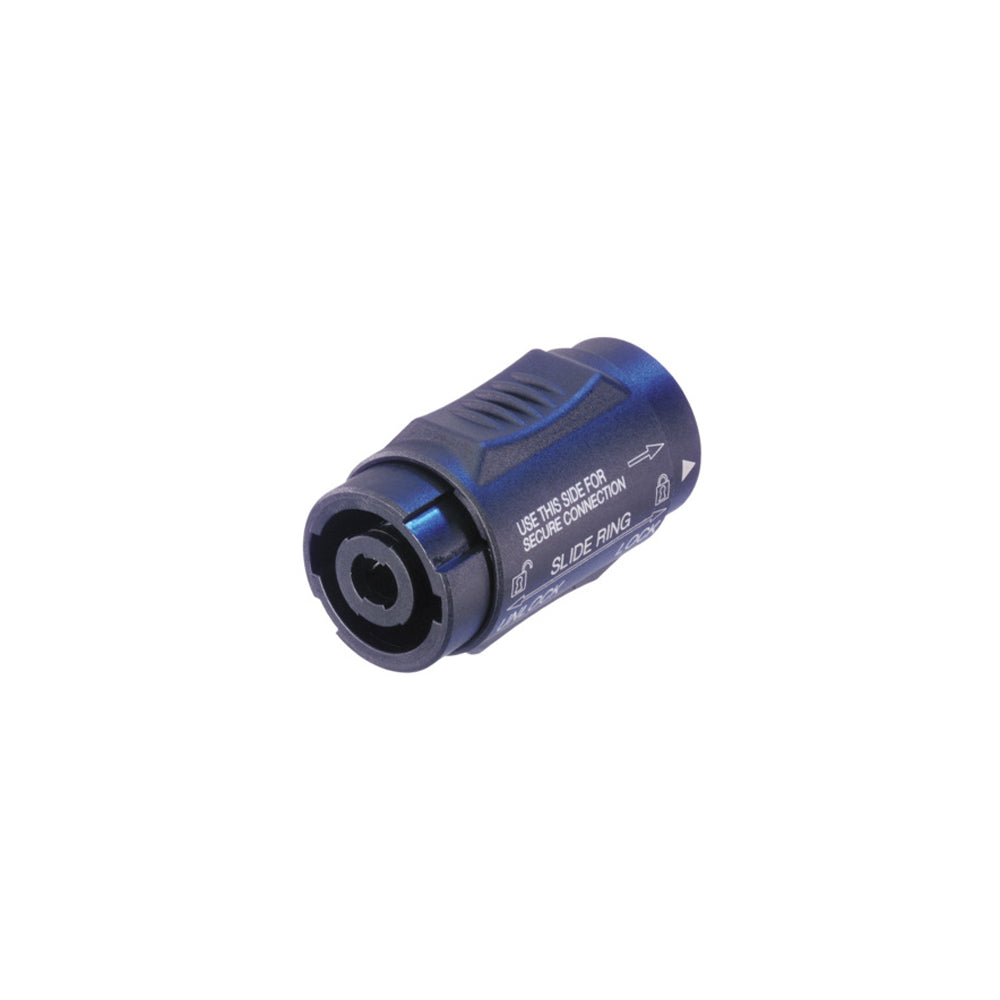

Neutrik 4-Pole speakON Male to Male Coupler
$13.69
In stock
— ships in 1 business day
Description
This coupler can be used for cable extension and changes the gender to male when locked onto the cable. It features a permanent secure connection on a speakON cable connector.
Specifications
Neutrik 4-Pole speakON Male to Male Coupler
This coupler can be used for cable extension and changes the gender to male when locked onto the cable. It features a permanent secure connection on a speakON cable connector.
Color: Blue
Connector Type: speakON
Temperature Range: -30℃ to +80℃
Contact Plating: 4 µm Ag
Contacts: Bronze
| Product | Neutrik 4-Pole speakON Male to Male Coupler |
| Color | Blue |
| Connector Type | speakON |
| Temperature Range | -30℃ to +80℃ |
| Contact Plating | 4 µm Ag |
| Contacts | Bronze |
| Insert | Polyamide |
| Shell | Polyamide |
| Gender | Male |
| Contact Resistance | ? 3 mΩ (after lifetime) |
| Dielectric Strength | 4 kVdc (peak) |
| Insulation Resistance | > 1 GΩ (after damp heat) |
| Rated Current Per Contact | 15 A rms continuous30 A audio signal, duty cycle 50% |
| Rated Voltage | 250 V (Insulation) |
| Lifetime | > 5000 mating cycles |
| Locking Device | Quick Lock |
