Neutrik speakON 4-Pole Male to Solder D-Cut Connector
Click the image to zoom

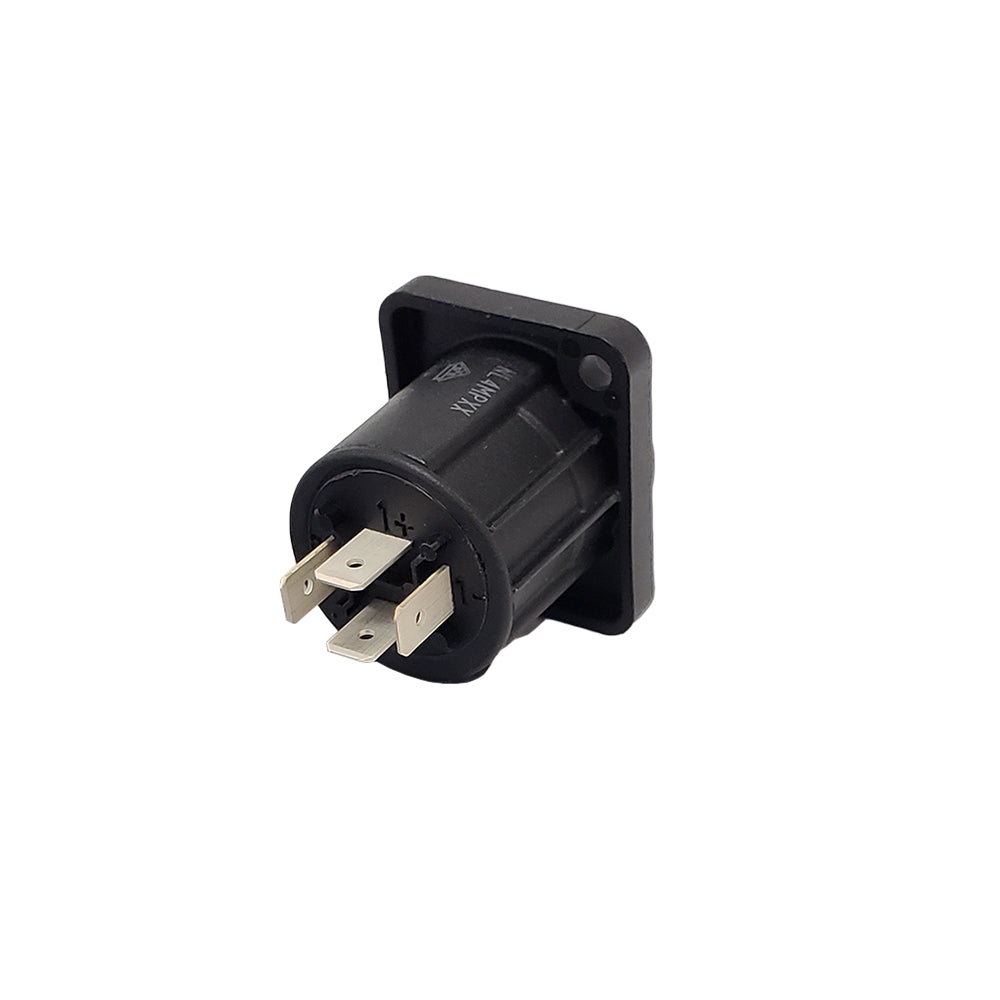

Neutrik speakON 4-Pole Male to Solder D-Cut Connector
$6.13
In stock
— ships in 1 business day
Description
This connector is typically used as the standard chassis connectors for loudspeaker/amplifier interconnections. They feature a unique metal locking system, making contact once fully locked. They are versatile, robust and easy to terminate.
Specifications
Neutrik speakON 4-Pole Male to Solder D-Cut Connector
This connector is typically used as the standard chassis connectors for loudspeaker/amplifier interconnections. They feature a unique metal locking system, making contact once fully locked. They are versatile, robust and easy to terminate.
Color: Black
Connector Type: speakON
Temperature Range: -30℃ to +80℃
Contact Plating: Ag
Contacts: Copper Alloy
| Product | Neutrik speakON 4-Pole Male to Solder D-Cut Connector |
| Color | Black |
| Connector Type | speakON |
| Temperature Range | -30℃ to +80℃ |
| Contact Plating | Ag |
| Contacts | Copper Alloy |
| Shell | Polyamide (PA 6.6) |
| Locking Element | Stainless Steel |
| Gender | Male |
| Contact Resistance | ? 2 mΩ |
| Dielectric Strength | 2.8 kVdc (peak) |
| Insulation Resistance | > 1 GΩ (after damp heat) |
| Rated Current Per Contact | 25 A rms continuous (audio rating significantly higher, depending on signal) |
| Rated Voltage | 250 V ac |
| Lifetime | > 5000 mating cycles |
| Locking Device | Quick Lock |
