DB25 Male Screw Down Field Termination Connector Kit
$9.83
In stock
— ships in 1 business day
Description

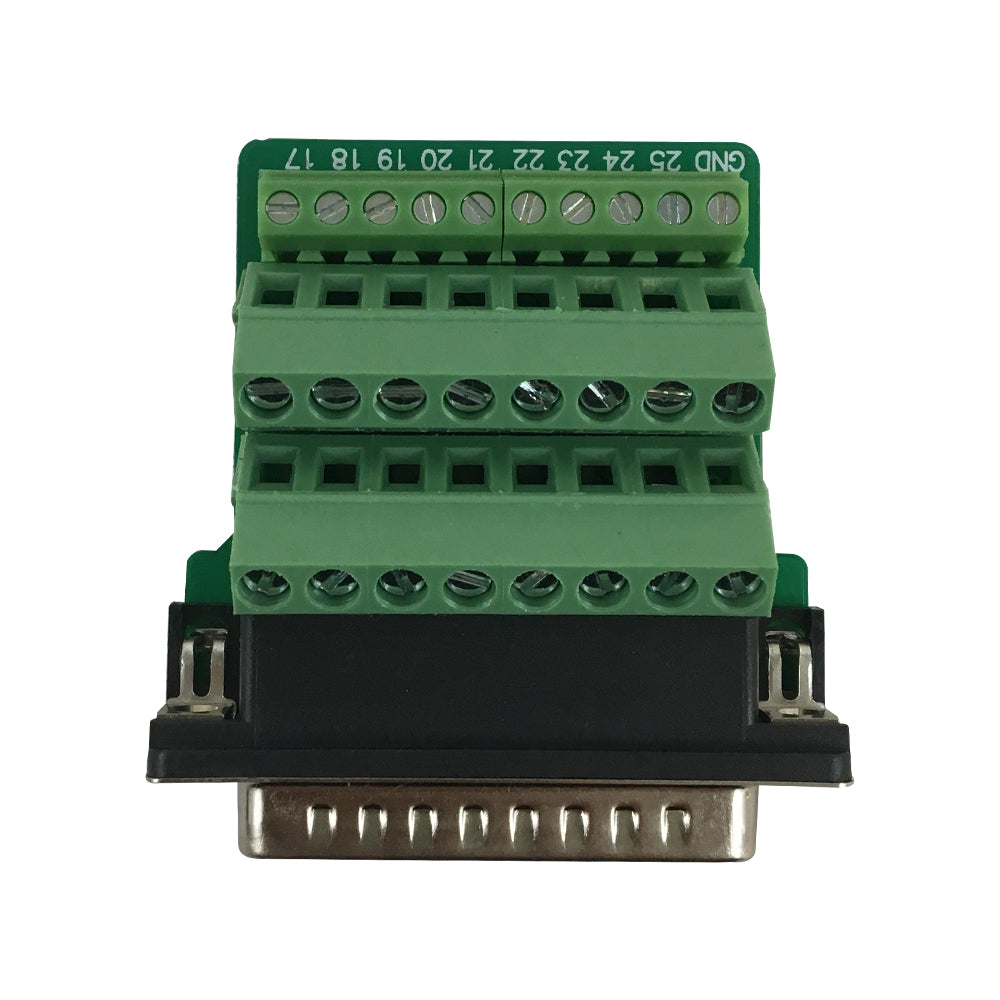

This field termination kit has a DB25 male connector on one end and accepts raw cable for a screw down termination on the other. It is typically used to terminate D-sub cables onsite quickly and easily without having to solder or crimp contacts.
Specifications
DB25 Male Screw Down Field Termination Connector Kit
This field termination kit has a DB25 male connector on one end and accepts raw cable for a screw down termination on the other. It is typically used to terminate D-sub cables onsite quickly and easily without having to solder or crimp contacts.
Color: Black
Housing Material: PVC
Connector Plating: Nickel
Wire Gauge: 12AWG – 24AWG
Max Voltage: 300V
| Product | DB25 Male Screw Down Field Termination Connector Kit |
| Color | Black |
| Housing Material | PVC |
| Connector Plating | Nickel |
| Wire Gauge | 12AWG – 24AWG |
| Max Voltage | 300V |
| Max Amperage | 2A |
| Connector | DB25 Male |
| RoHS | Compliant |
| Package Quantity | 1 |
| Product Weight | 0.15 lbs [0.07kg] |

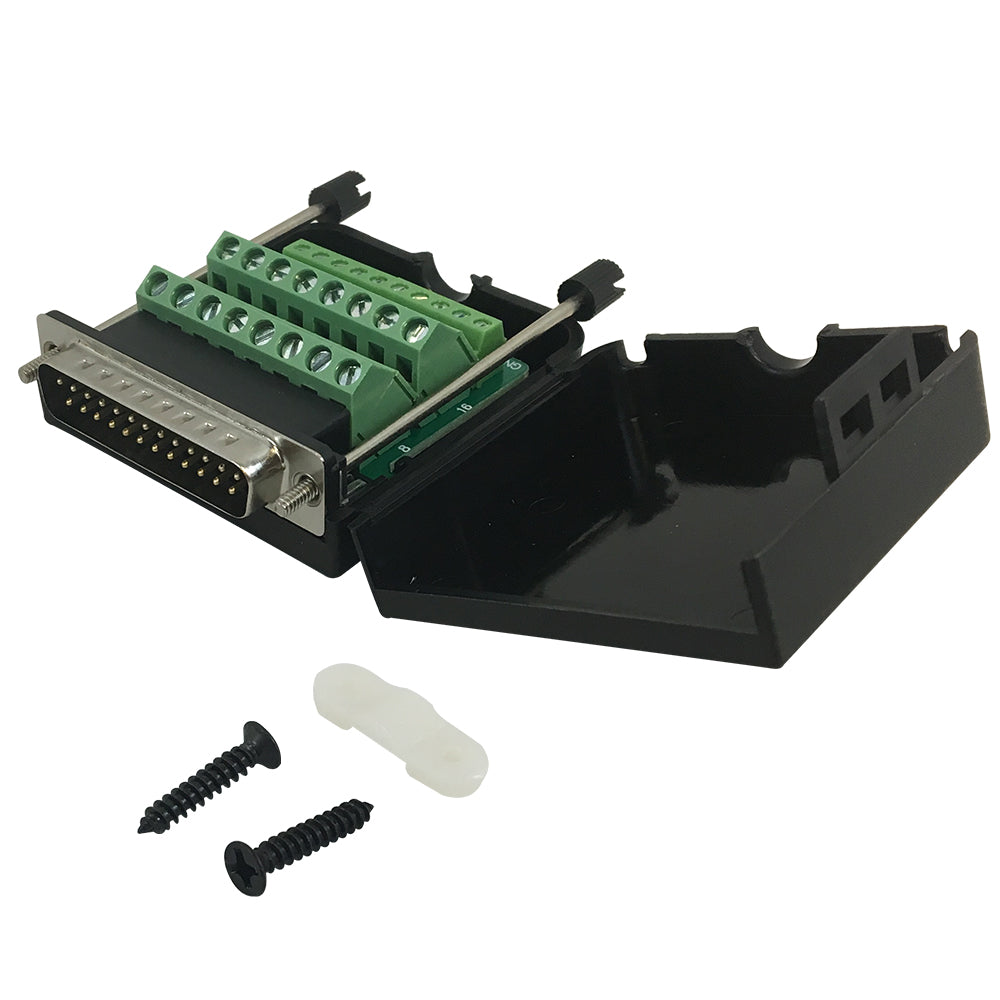

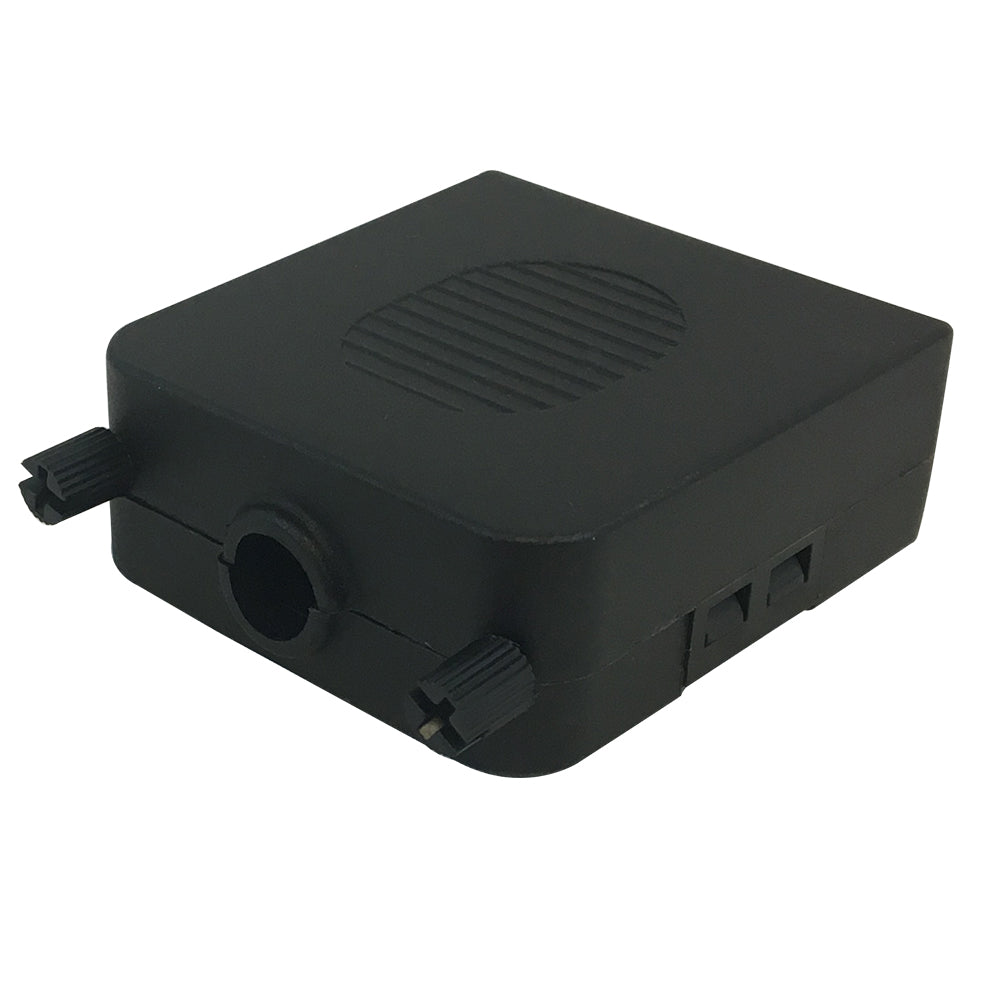

| Included in Package | 1 - Connector 1 - Cover 2 - Screws1 - Dust Cap |
