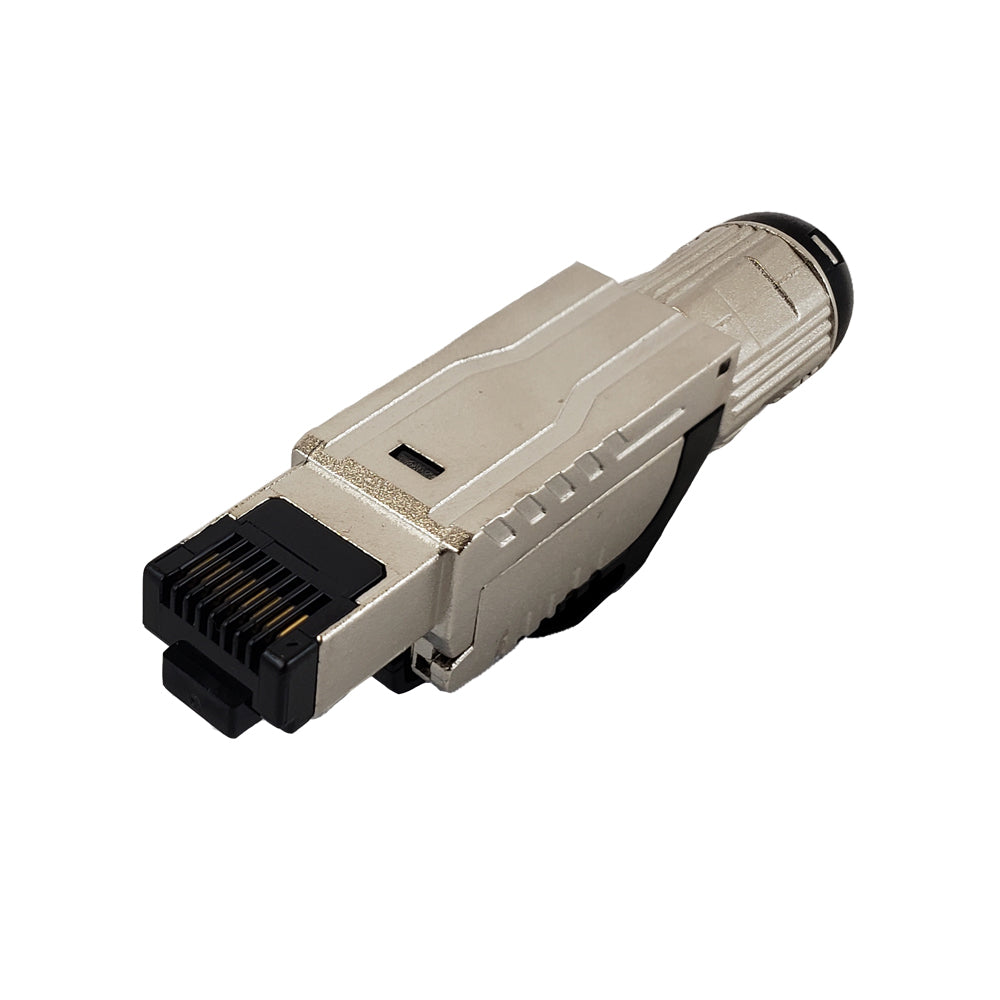

RJ45 Cat6a Shielded Field Termination Tool-Less Plug (Solid or Stranded) (8P 8C) - IP20
$15.63
In stock
— ships in 1 business day
Description
This modular IP20 rated field termination RJ45 Cat6a connector is an 8 position, 8 conductor plug. It is designed to terminate Cat6a cables (23AWG to 26AWG) with OD 6.0 to 7.5mm quickly and easily on-site.
Specifications
RJ45 Cat6a Shielded Field Termination Tool-Less Plug (Solid or Stranded) (8P 8C) - IP20
This modular IP20 rated field termination RJ45 Cat6a connector is an 8 position, 8 conductor plug. It is designed to terminate Cat6a cables (23AWG to 26AWG) with OD 6.0 to 7.5mm quickly and easily on-site.
Color: Nickel
Material: Polycarbonate
Contacts: Gold
Shielded: Compliant
Cable Type: Cat6a
| Product | RJ45 Cat6a Shielded Field Termination Tool-Less Plug (Solid or Stranded) (8P 8C) - IP20 |
| Color | Nickel |
| Material | Polycarbonate |
| Contacts | Gold |
| Shielded | Compliant |
| Cable Type | Cat6a |
| Number of Contacts | 8 |
| Number of Positions | 8 |
| IP Rating | IP 20 - (Anti Dust) |
| RJ45 Cat8 (8P8C) | Male, 23 - 26 AWG Solid or Stranded Cable |
| RoHS | Compliant |
| Package Quantity | 1 - Plug1 - SR Boot1 - RJ45 Cover1 - Copper Foil Tape |
| Product Weight | 0.06 lbs |
