RJ45 Cat5e/Cat6 Pass-Through Plug (Solid or Stranded) (8P 8C) - Pack of 50
$23.00
In stock
— ships in 1 business day
Description

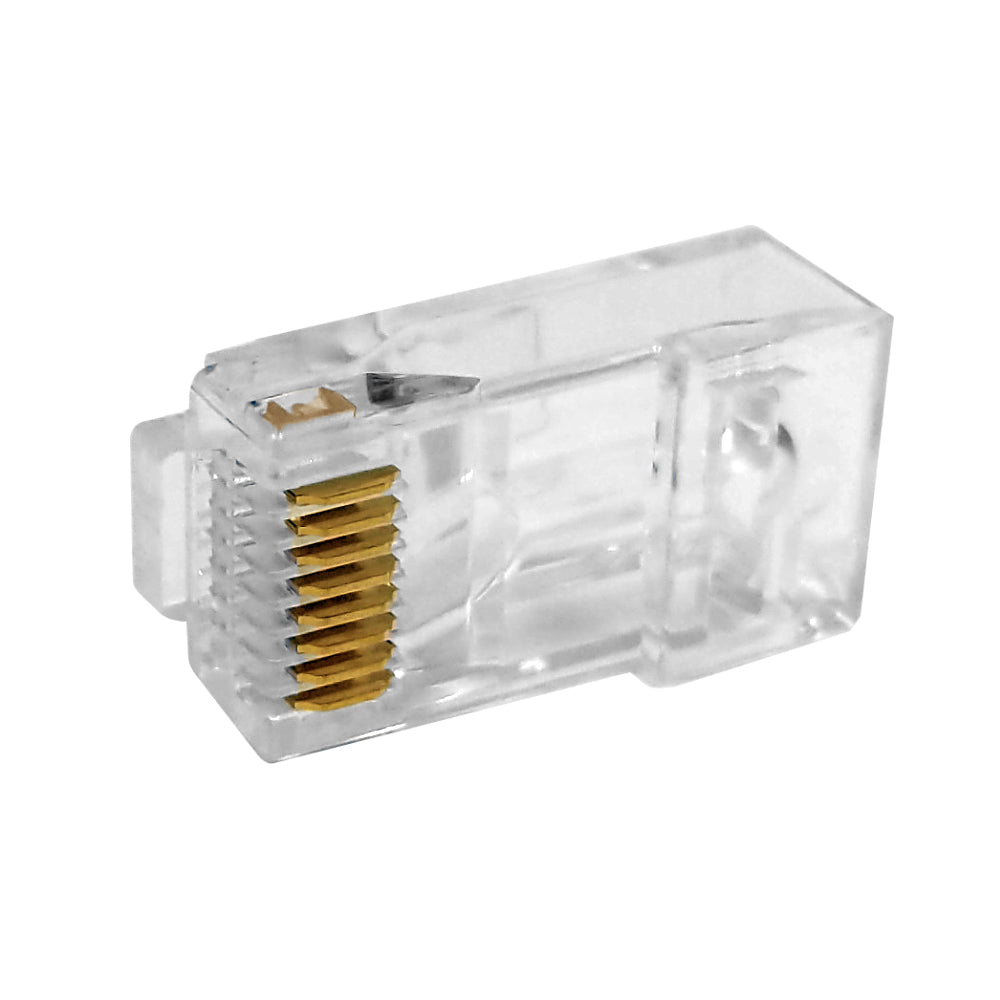

This modular RJ45 Cat5e/Cat6 connector is a pass through style, 8 position, 8 conductor plug. It's typically terminated on 4 pair solid or stranded round Cat5e/Cat6 cables. It's pass through style design makes the wire insertion process simple and quick.
Specifications
RJ45 Cat5e/Cat6 Pass-Through Plug (Solid or Stranded) (8P 8C) - Pack of 50
This modular RJ45 Cat5e/Cat6 connector is a pass through style, 8 position, 8 conductor plug. It's typically terminated on 4 pair solid or stranded round Cat5e/Cat6 cables. It's pass through style design makes the wire insertion process simple and quick.
Color: Transparent
Housing Material: Polycarbonate UL 94V-2
Contact Material: Bronze
Contact Plating: 50 micron Gold Plating
Contact Type: 3 prong
| Product | RJ45 Cat5e/Cat6 Pass-Through Plug (Solid or Stranded) (8P 8C) - Pack of 50 |
| Color | Transparent |
| Housing Material | Polycarbonate UL 94V-2 |
| Contact Material | Bronze |
| Contact Plating | 50 micron Gold Plating |
| Contact Type | 3 prong |
| Cable Type | Round, UTP |
| Number of Contacts | 8 |
| Number of Positions | 8 |
| Connector | RJ45 Male (8P8C) |
| Performance Rating | Cat5e/Cat6 |
| Conductor Type | Solid or Stranded Cable |
| Conductor Opening Diameter | 1.0mm |
| Wire Gauge Accepted | 24AWG to 26AWG (With a Conductor Insulation < 1.0mm) |
| RoHS | Compliant |
| Package Quantity | 50 |
