RJ45 Male Plug to 8x Screw Terminal
Click the image to zoom

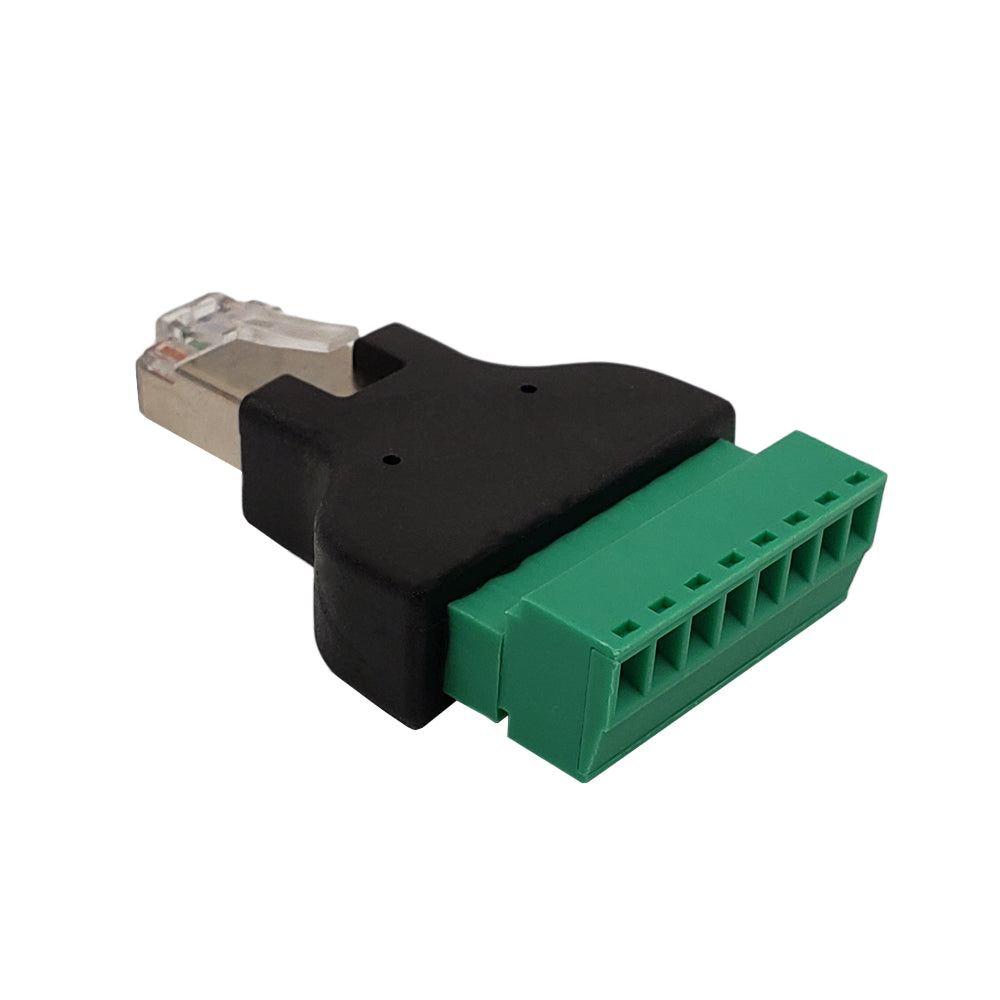

RJ45 Male Plug to 8x Screw Terminal
$6.19
In stock
— ships in 1 business day
Description

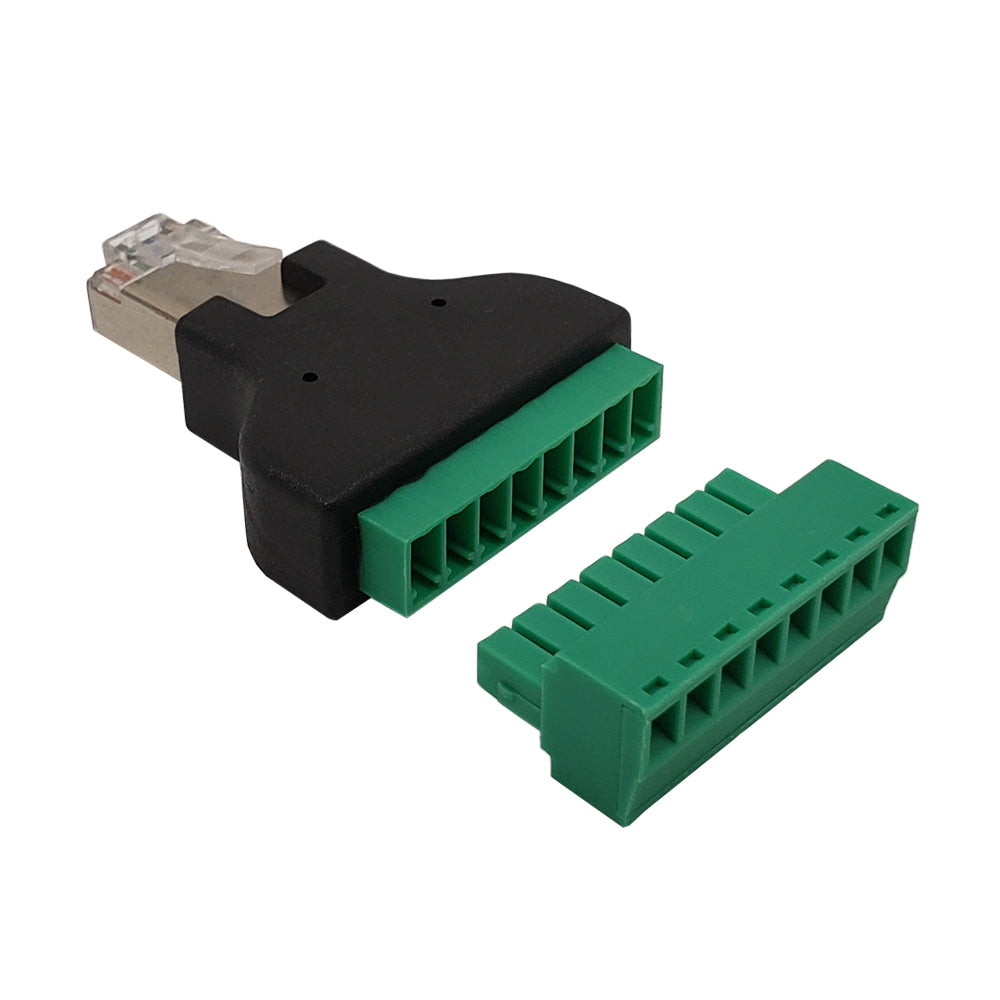

This connector consists of a RJ45 male on one end and eight screw terminals on the other end. It is typically used in a variety of PoE and CCTV applications. The terminal block is removable for easier termination.
Specifications
RJ45 Male Plug to 8x Screw Terminal
This connector consists of a RJ45 male on one end and eight screw terminals on the other end. It is typically used in a variety of PoE and CCTV applications. The terminal block is removable for easier termination.
Color: Black
Contact Plating: Gold
Attachment Method: Screw Down
Wire Gauge: 28AWG to 16AWG
Pinout: RJ45
| Product | RJ45 Male Plug to 8x Screw Terminal |
| Color | Black |
| Contact Plating | Gold |
| Attachment Method | Screw Down |
| Wire Gauge | 28AWG to 16AWG |
| Pinout | RJ45 |
| RJ45 | Terminal Block |
| 12345678 | 1 (+)2 (-)3 (+)4 (-)5 (+)6 (-)7 (+)8 (-) |
| Connector A | 1 - RJ45 (8P8C) Male |
| Connector B | 8 - Screw Down Terminals |
| RoHS | Compliant |
| Package Quantity | 1 |
| Product Weight | 0.02 lbs [0.01 kg] |
