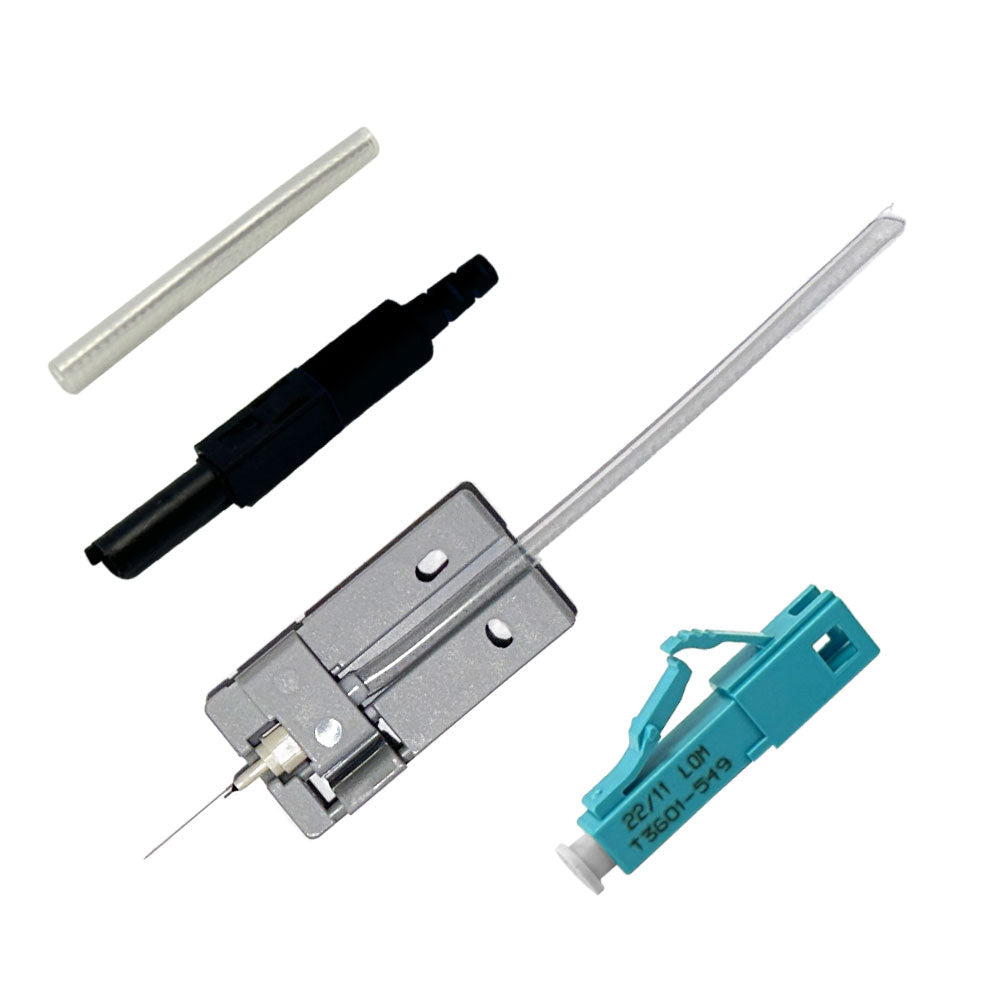

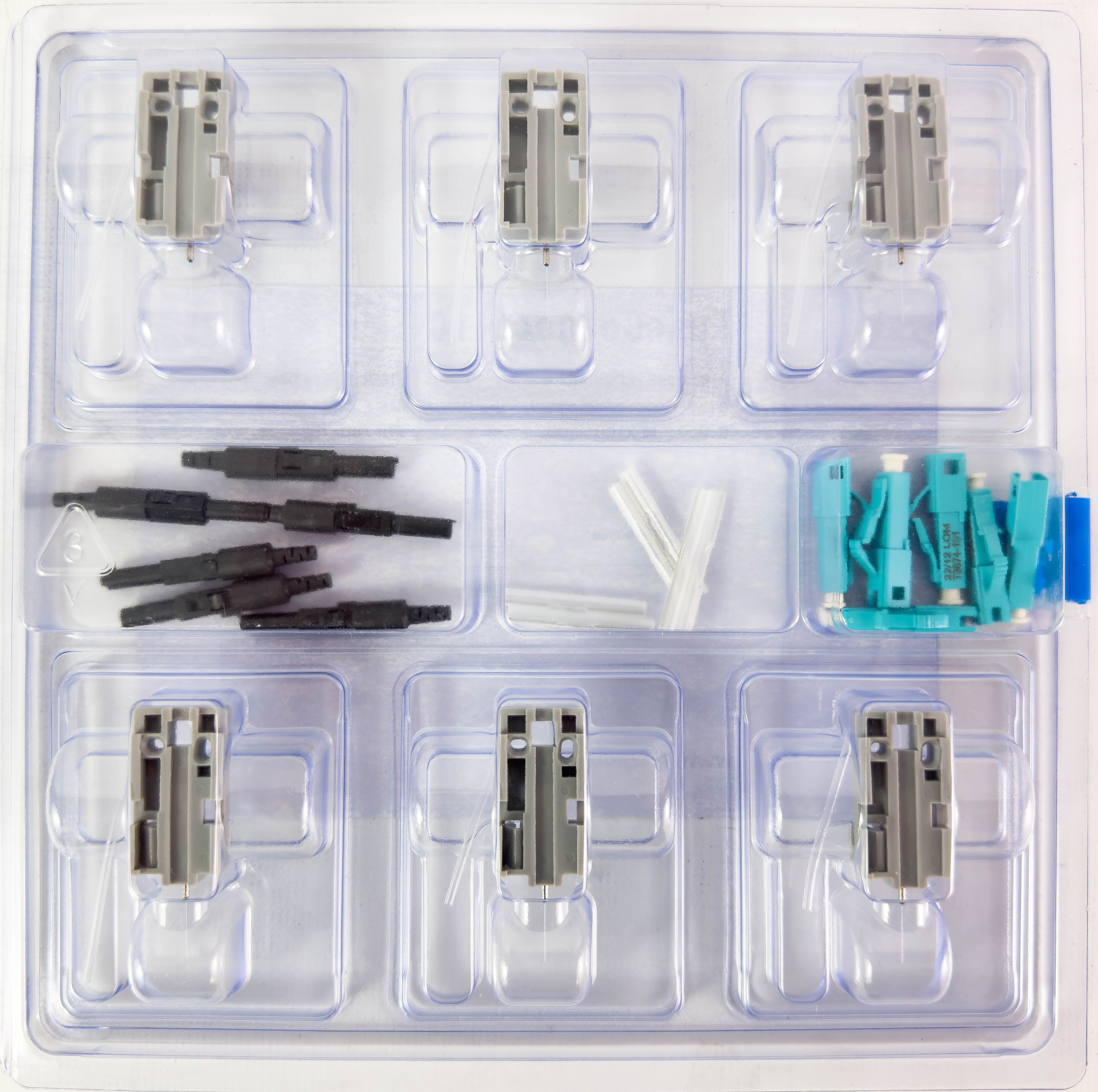

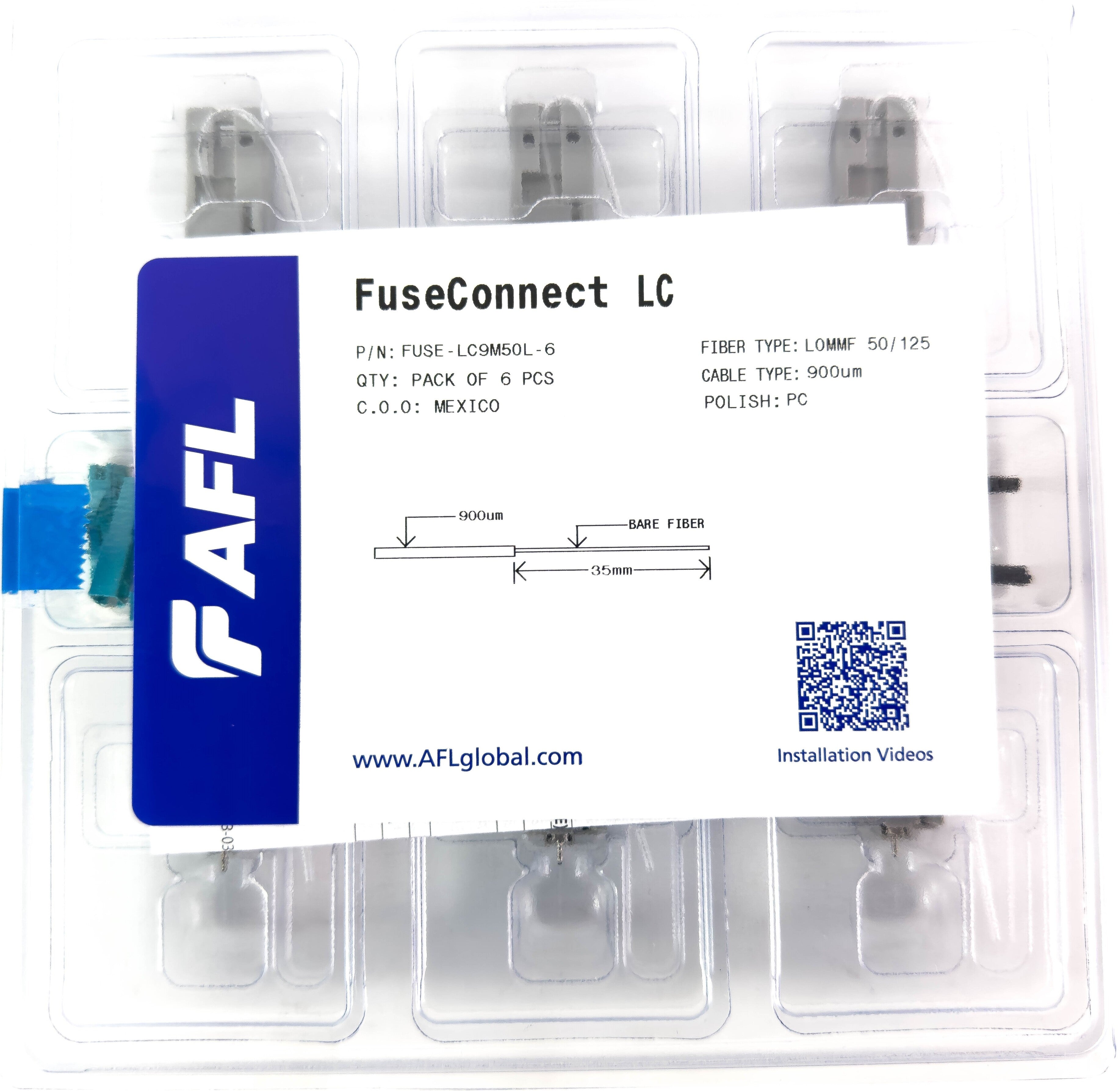

AFL FUSEConnect LC/PC MM 50u 10Gig Connector - 900um Aqua (6 pack)
$114.63
In stock
— ships in 1 business day
Description
These fiber optic FUSEConnect fusion-spliced LC connectors are factory pre-polished, field-installable connectors that completely eliminate the need for hand polishing in the field. FUSEConnect Connectors are compatible with 900 µm optical fibers, as well as 2 mm and 4.8 mm cordage. The connectors are color coded per industry standard requirements to aide in identification during and after installation. They utilize a fusion splicer to terminate the connector in the field, addressing return loss concerns present in analog optical networks.
Features
Applications
Specifications
AFL FUSEConnect LC/PC MM 50u 10Gig Connector - 900um Aqua (6 pack)
These fiber optic FUSEConnect fusion-spliced LC connectors are factory pre-polished, field-installable connectors that completely eliminate the need for hand polishing in the field. FUSEConnect Connectors are compatible with 900 µm optical fibers, as well as 2 mm and 4.8 mm cordage.
Color: Aqua
Cable Diameter: 900um
Fiber Size: 50/125 micron
Fiber Type: Multimode
Operating Temperature: -40°C to +75°C
| Product | AFL FUSEConnect LC/PC MM 50u 10Gig Connector - 900um Aqua (6 pack) |
| Color | Aqua |
| Cable Diameter | 900um |
| Fiber Size | 50/125 micron |
| Fiber Type | Multimode |
| Operating Temperature | -40°C to +75°C |
| Fiber Classification | MM |
| AFL P/N | FUSE-LC9M50L-6 |
| Connector | LC Simplex Male |
| Insertion Loss | Average: 0.10 dB, Maximum: 0.25 dB |
| Return Loss | ≤ -35 dB |
| Package Quantity | 6 |
| Product Weight | 0.24 lbs |
