AFL FUSEConnect LC/UPC SM Connector - 2mm Blue (6 pack)
Click the image to zoom
AFL FUSEConnect LC/UPC SM Connector - 2mm Blue (6 pack)
$130.75
In stock
— ships in 1 business day
Description
These fiber optic FUSEConnect fusion-spliced LC connectors are factory pre-polished, field-installable connectors that completely eliminate the need for hand polishing in the field. FUSEConnect Connectors are compatible with 900 µm optical fibers, as well as 2 mm and 4.8 mm cordage. The connectors are color coded per industry standard requirements to aide in identification during and after installation. They utilize a fusion splicer to terminate the connector in the field, addressing return loss concerns present in analog optical networks.
Features
Applications
Specifications

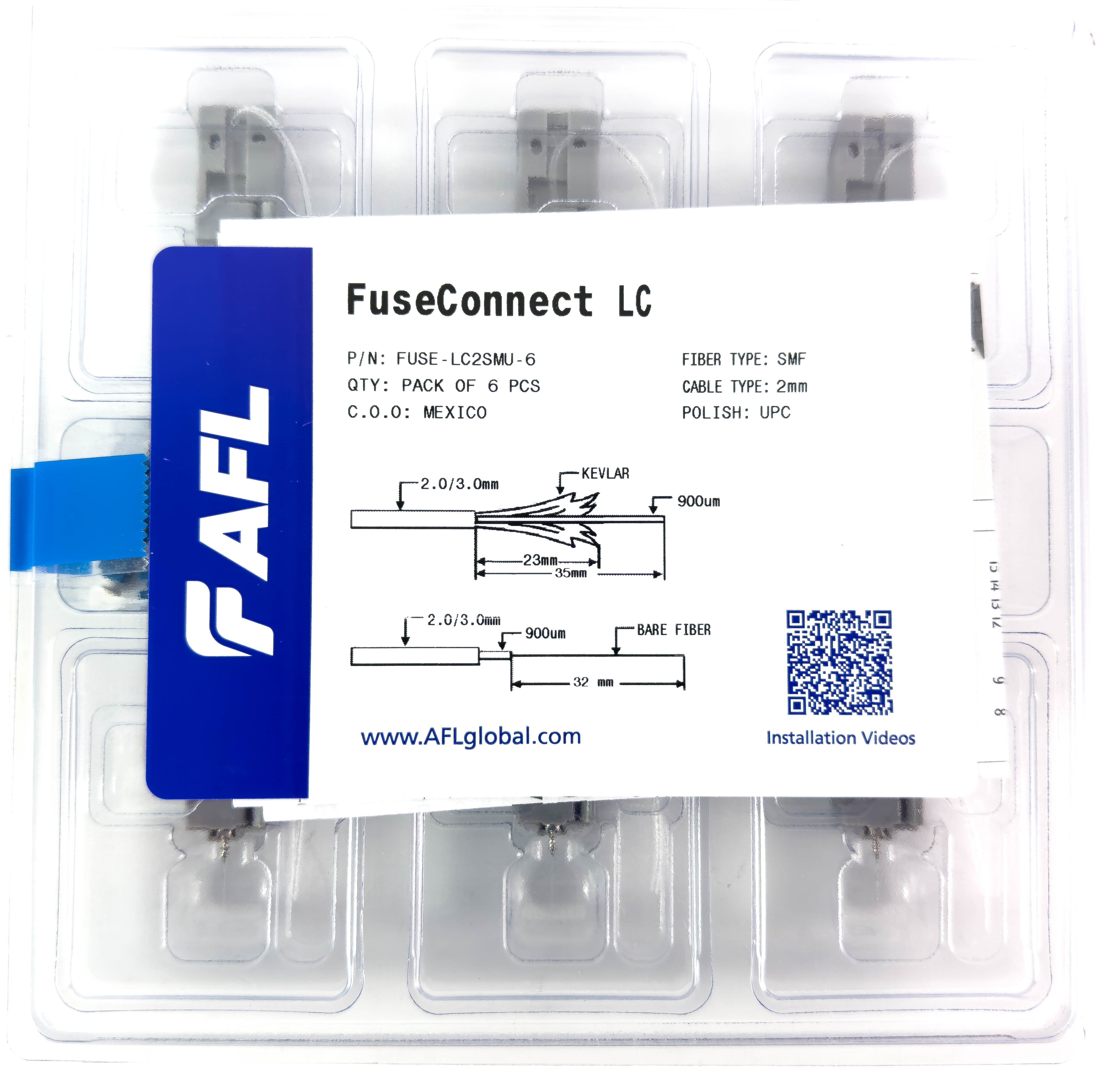

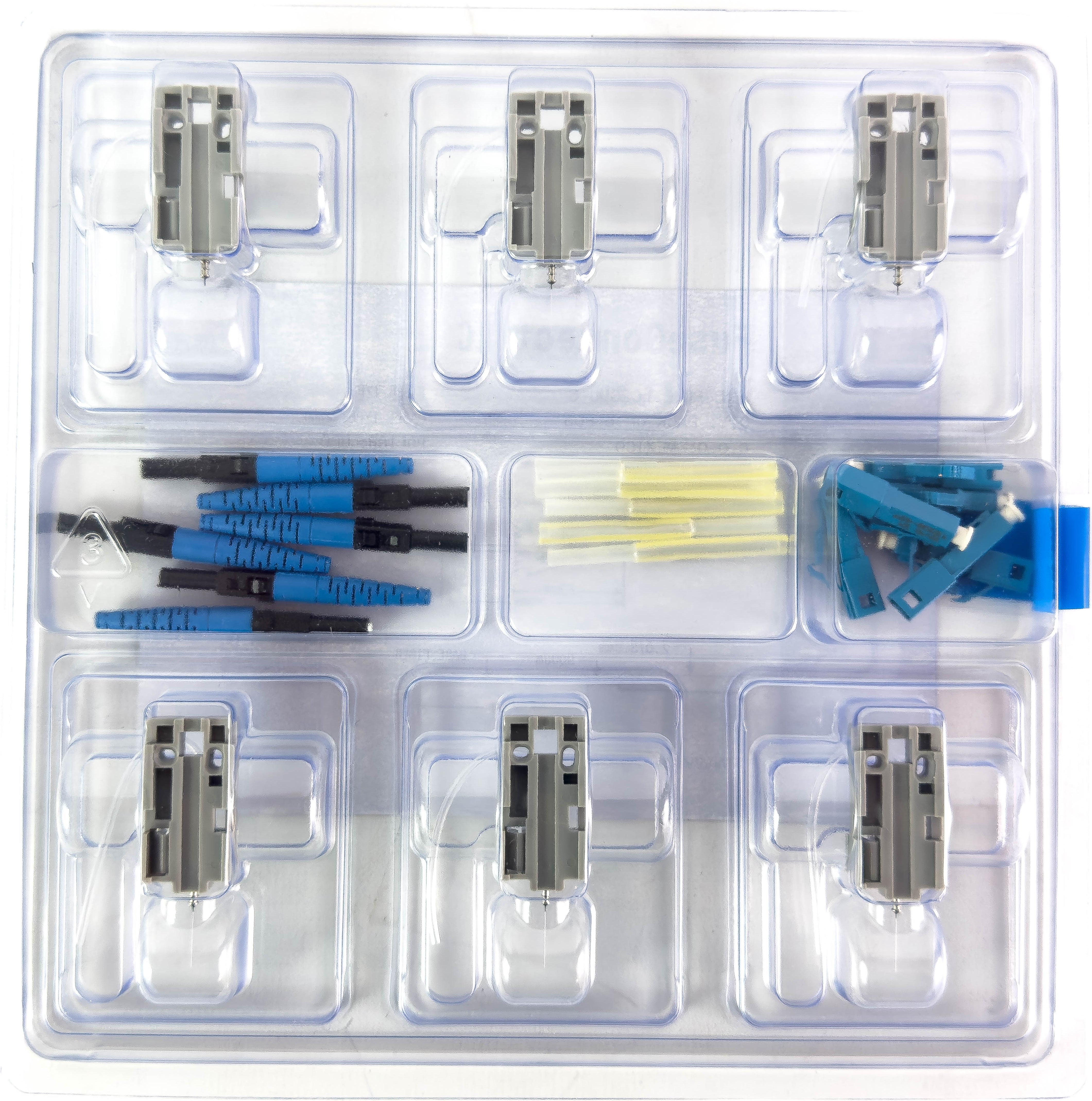

AFL FUSEConnect LC/UPC SM Connector - 2mm Blue (6 pack)
These fiber optic FUSEConnect fusion-spliced LC connectors are factory pre-polished, field-installable connectors that completely eliminate the need for hand polishing in the field. FUSEConnect Connectors are compatible with 900 µm optical fibers, as well as 2 mm and 4.8 mm cordage.
Color: Blue
Cable Diameter: 900um
Fiber Size: 9/125 micron
Fiber Type: Singlemode
Operating Temperature: -40°C to +75°C
| Product | AFL FUSEConnect LC/UPC SM Connector - 2mm Blue (6 pack) |
| Color | Blue |
| Cable Diameter | 900um |
| Fiber Size | 9/125 micron |
| Fiber Type | Singlemode |
| Operating Temperature | -40°C to +75°C |
| Fiber Classification | SM |
| AFL P/N | FUSE-LC2SMU-6 |
| Connector | LC Simplex Male |
| Insertion Loss | Average: 0.15 dB, Maximum: 0.25 dB |
| Return Loss | ≤ -55 dB |
| Package Quantity | 6 |
| Product Weight | 0.24 lbs |
