FASTCONNECT SC MM OM3/4 Aqua Connector - Pack of 6
Click the image to zoom

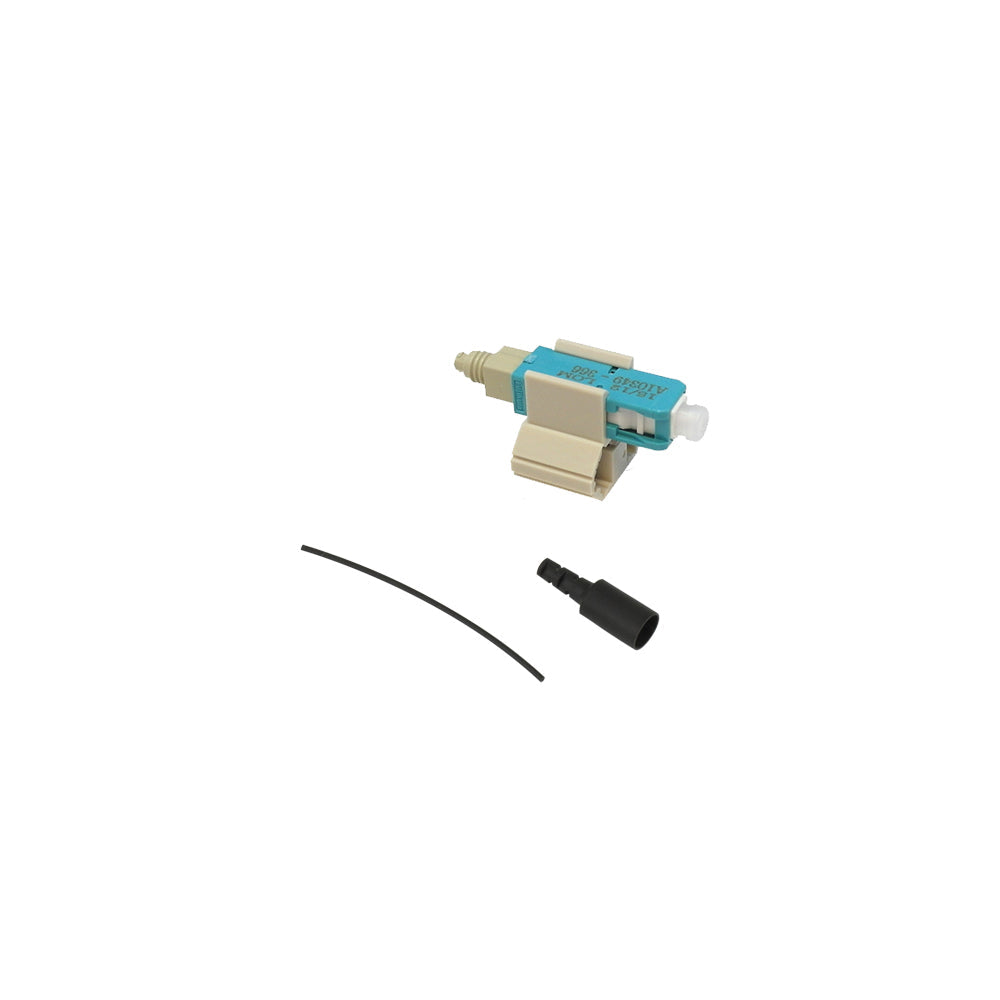

FASTCONNECT SC MM OM3/4 Aqua Connector - Pack of 6
$110.56
In stock
— ships in 1 business day
Description
This device is an innovative, translucent wedge enabling the use of a common VFI to provide a "pass/fail" signal once physical contact is achieved.
Features
Applications
Specifications
FASTCONNECT SC MM OM3/4 Aqua Connector - Pack of 6
This device is an innovative, translucent wedge enabling the use of a common VFI to provide a "pass/fail" signal once physical contact is achieved. Features Applications
Color: Aqua
Cable Diameter: 900 µm
Fiber Size: 50/125 micron
Fiber Type: Multimode
Operating Temperature: -40℃ to +75℃
| Product | FASTCONNECT SC MM OM3/4 Aqua Connector - Pack of 6 |
| Color | Aqua |
| Cable Diameter | 900 µm |
| Fiber Size | 50/125 micron |
| Fiber Type | Multimode |
| Operating Temperature | -40℃ to +75℃ |
| Fiber Classification | OM3/OM4 |
| Connector | SC Simplex Male |
| Insertion Loss | Average: 0.1 dB, Maximum: 0.5 dB |
| Return Loss | Average: -25 dB, Maximum: -20 dB |
| Package Quantity | 6 |
| Product Weight | 0.19 lbs |
