C13 Locking Power Cord Connector - Screw On - Right or Left
Click the image to zoom

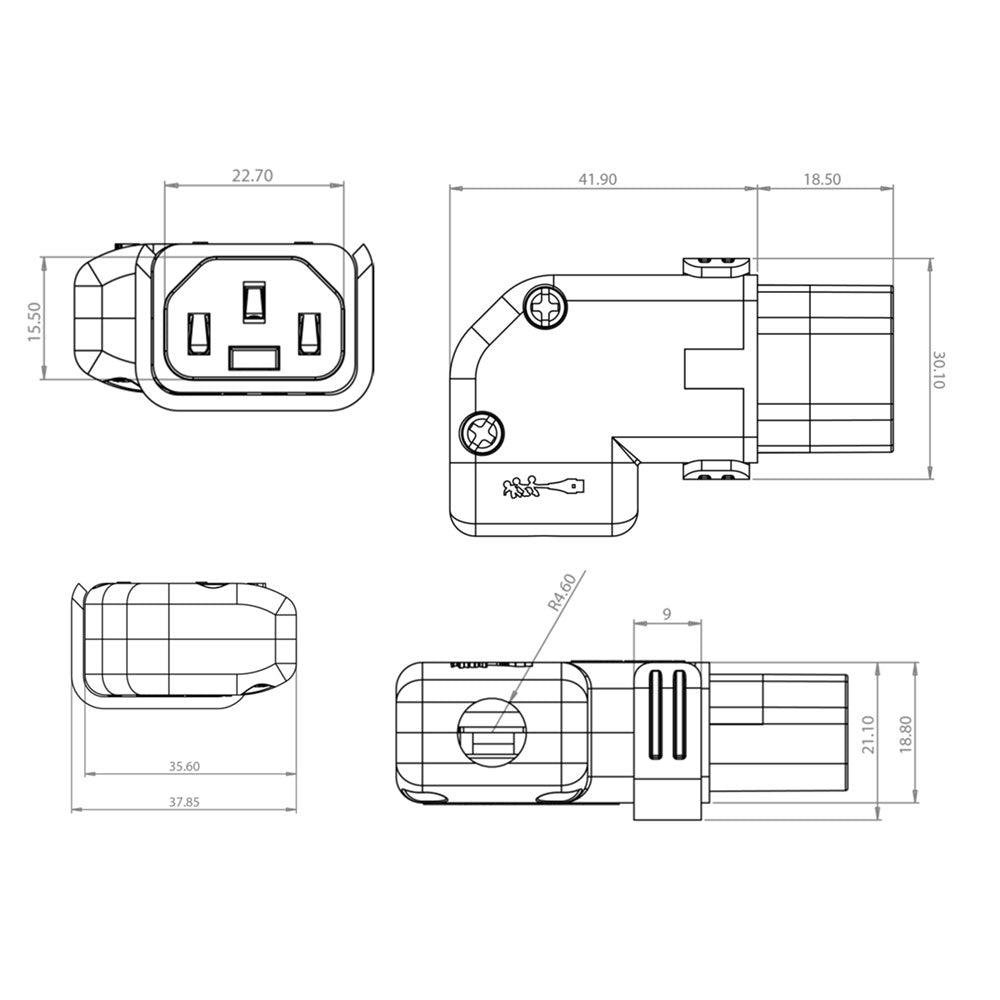

C13 Locking Power Cord Connector - Screw On - Right or Left Angle (IEC-Lock Part #: PA130100RBK)
$9.19
In stock
— ships in 1 business day
Description

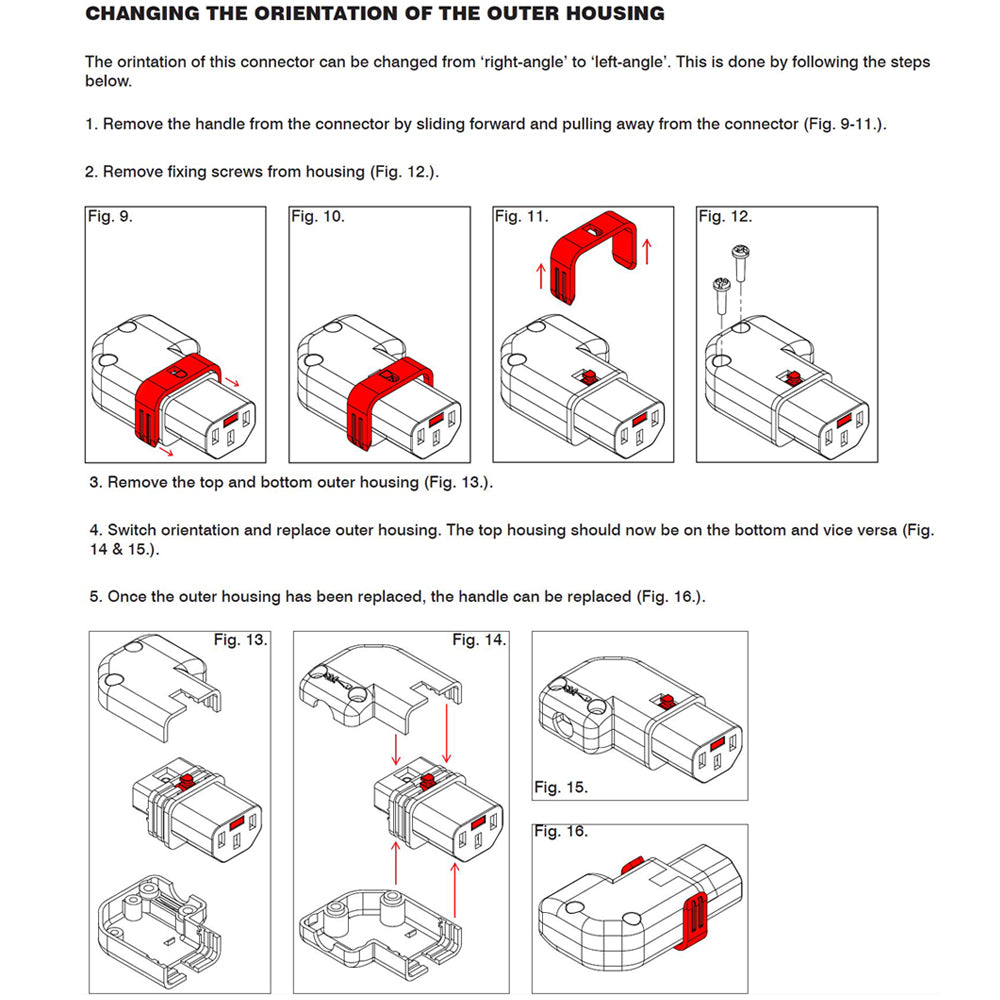

This C13 locking power cord connector is designed to prevent accidental disconnection of computers, servers to PDU's and other networking devices. The locking mechanism allows for easy disconnection on all sides and does not require any other equipment or inlets to secure it. The orientation of this connector can be changed from right-angle to left-angle.
Specifications
C13 Locking Power Cord Connector - Screw On - Right or Left Angle (IEC-Lock Part #: PA130100RBK)
This C13 locking power cord connector is designed to prevent accidental disconnection of computers, servers to PDU's and other networking devices. The locking mechanism allows for easy disconnection on all sides and does not require any other equipment or inlets to secure it. The orientation of this connector can be changed from right-angle to left-angle.
Connection Type: Cable Mount
Color: Black
Wire Gauge Compatibility: 14-18AWG
Rating: 15A/250V (North America), 10A/250V (Europe)
Material Rating: Low Smoke Zero Halogen (LSZH)
| Product | C13 Locking Power Cord Connector - Screw On - Right or Left Angle (IEC-Lock Part #: PA130100RBK) |
| Connection Type | Cable Mount |
| Color | Black |
| Wire Gauge Compatibility | 14-18AWG |
| Rating | 15A/250V (North America), 10A/250V (Europe) |
| Material Rating | Low Smoke Zero Halogen (LSZH) |
| Rewireable | Compliant |
| Terminal Screw Nominal Torque | 0.4Nm |
| Relative Humidity | 5 - 95% non-condensing, non-corrosive |
| IEC-Lock Part # | PA130100RBK |
| C13 | Female |
| Connector | UL, CSA |
| CE | Compliant |
| RoHS | Compliant |
| Package Quantity | 1 |
| Product Weight | 0.05 lbs [0.02kg] |
