Neutrik 2 Pole 3 Wire AC Power-out Cable Connector - Grey (f
Click the image to zoom

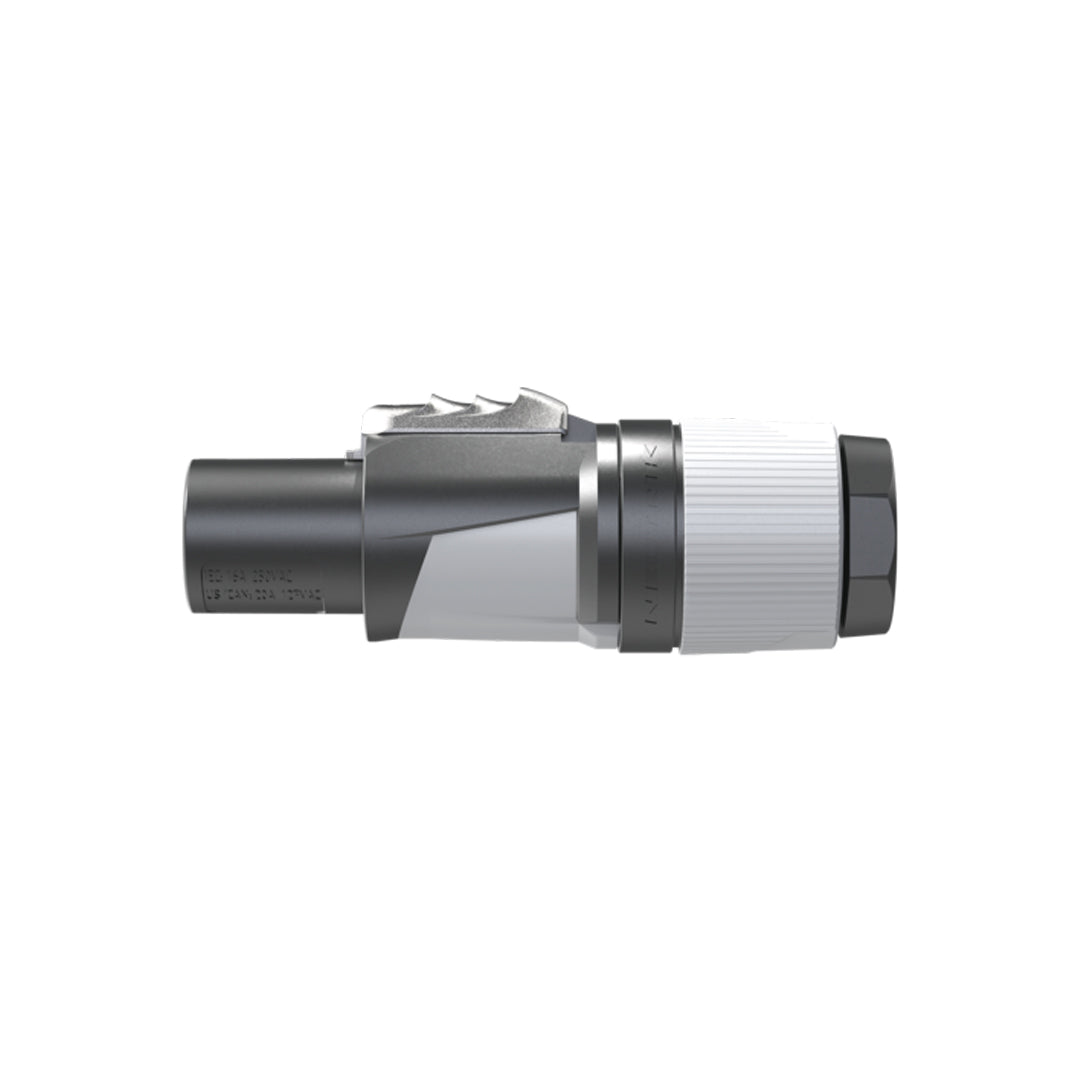

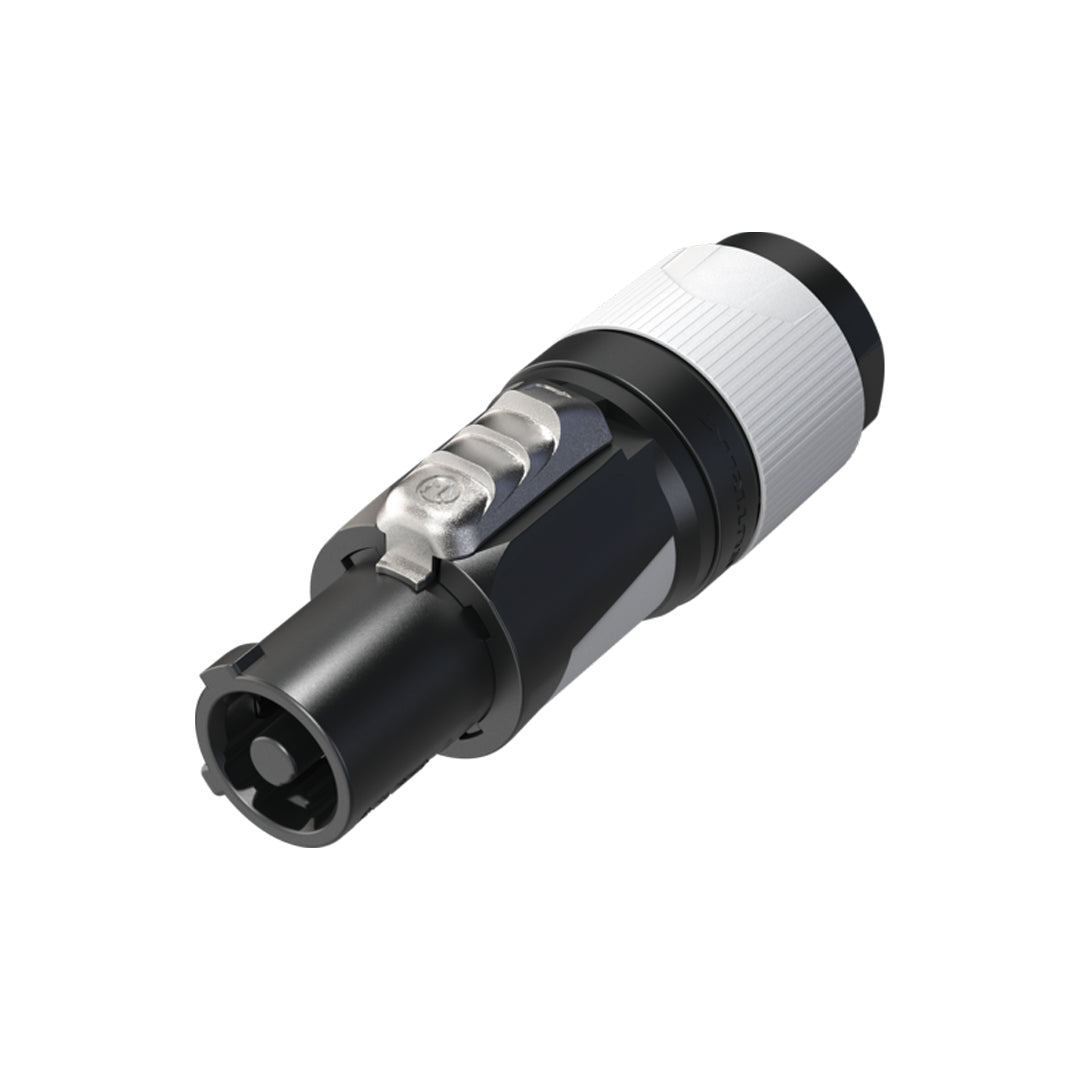

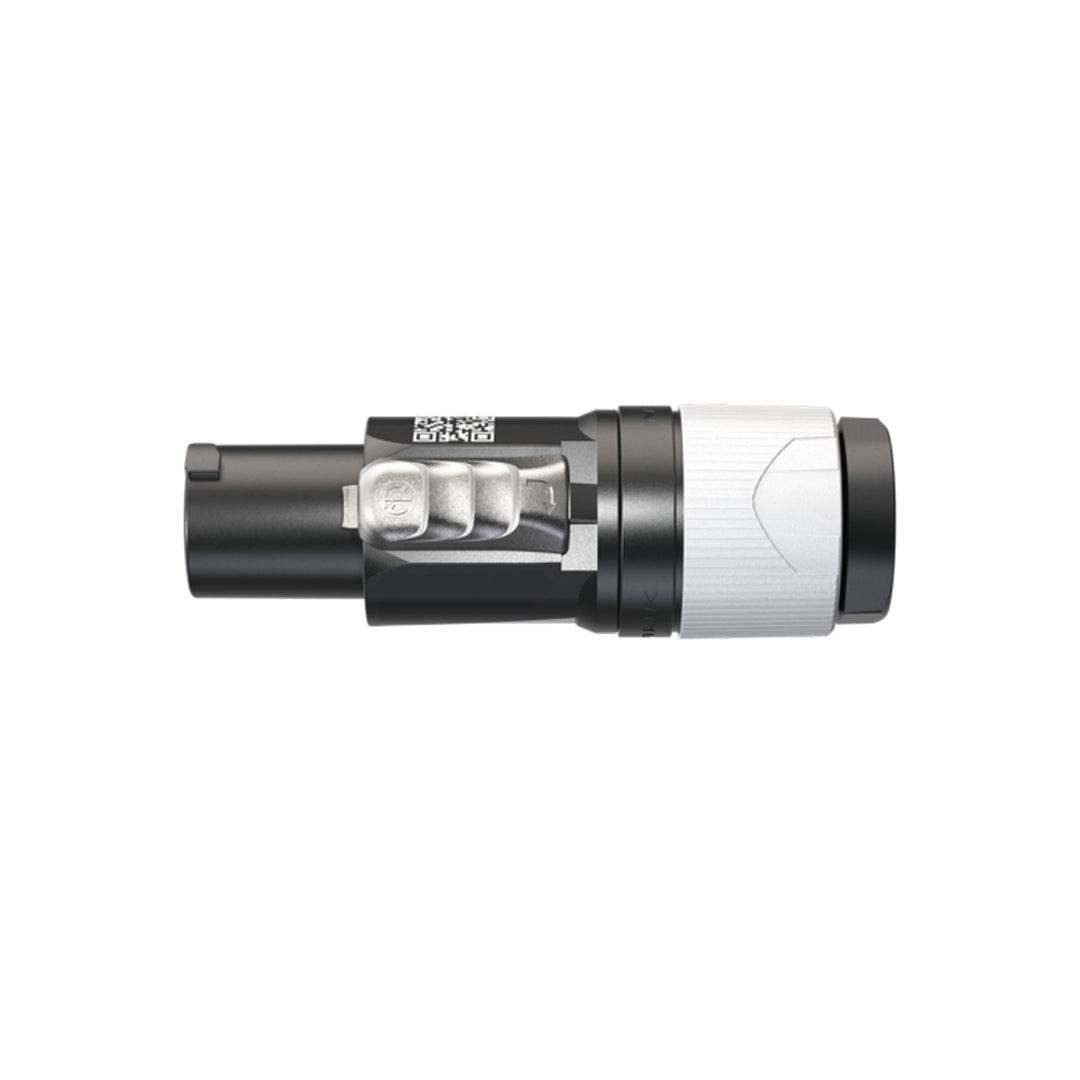

Neutrik 2 Pole 3 Wire AC Power-out Cable Connector - Grey (for 6-12mm diameter cable)
$14.44
In stock
— ships in 1 business day
Description
This locking 3 Wires equipment AC connector replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.
Features:
Specifications
Neutrik 2 Pole 3 Wire AC Power-out Cable Connector - Grey (for 6-12mm diameter cable)
This locking 3 Wires equipment AC connector replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection. Features:
Color: Grey
Connector Type: powerCON
Temperature Range: -33℃ to +80℃
Contact Plating: Ag
Contacts: Copper Alloy
| Product | Neutrik 2 Pole 3 Wire AC Power-out Cable Connector - Grey (for 6-12mm diameter cable) |
| Color | Grey |
| Connector Type | powerCON |
| Temperature Range | -33℃ to +80℃ |
| Contact Plating | Ag |
| Contacts | Copper Alloy |
| Insert | Polyamide (PA6.6) |
| Locking Element | Zinc Diecast |
| Shell | Polyamide (PA6) / TPE |
| Strain Relief | Polyketone |
| Bushing | Polypropylene / TPE |
| Gender | Female |
| Contact Resistance | ≤ 2 mΩ |
| Dielectric Strength | 3.0 kVac (after mating cycles) |
| Insulation Resistance | > 10 GΩ (initially) |
| Number of electrical contacts | 2 + PE |
