Cable Gland M20x1.5 Thread - Cable OD 8~12mm - IP68 - Black
Click the image to zoom

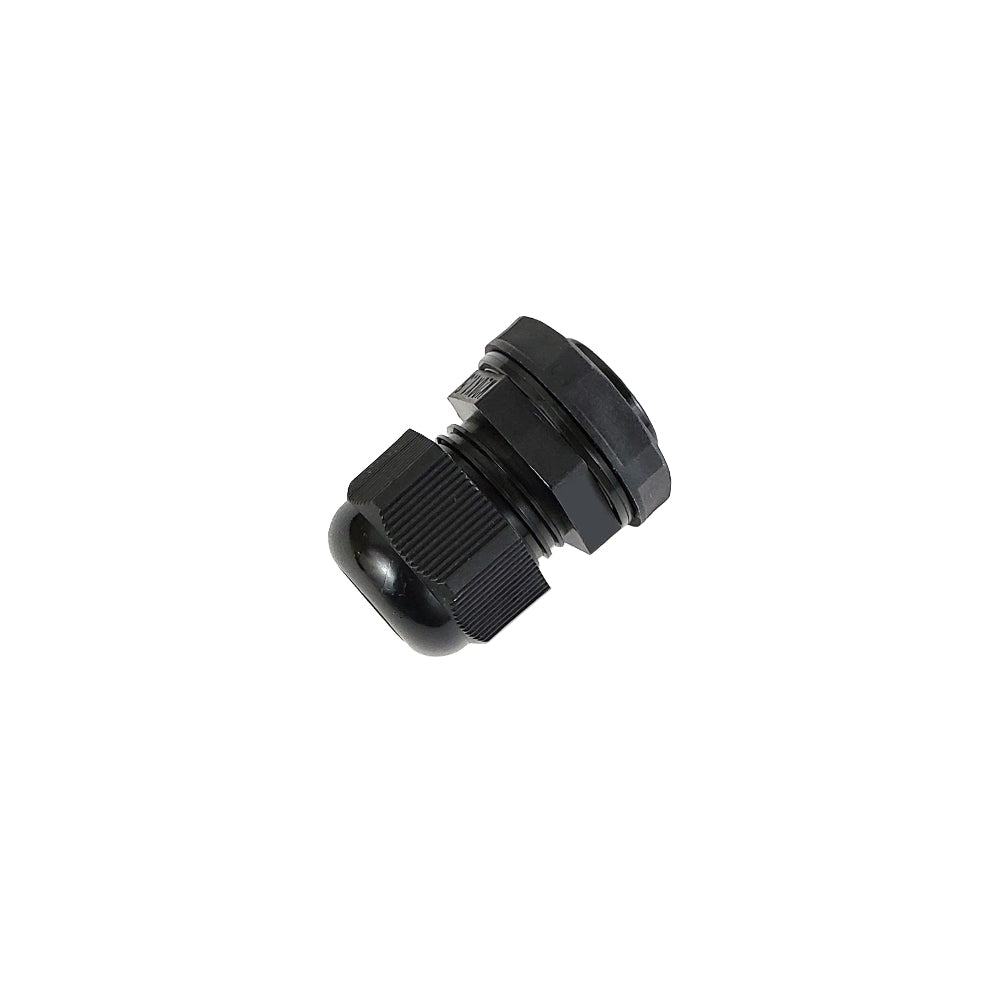

Cable Gland M20x1.5 Thread - Cable OD 8~12mm - IP68 - Black
$2.25
In stock
— ships in 1 business day
Description
This cable gland has a metric thread pattern of M20xP1.5 and accommodates a cable size of 8 to 12mm. The gland is dust resistant and waterproof with an IP68 rating and also has a flammability rating of UL94V-2. Cable glands are often referred to as cord grips or strain reliefs and are designed to attach and secure the end of a cable to a receptacle box or equipment.
Specifications
Cable Gland M20x1.5 Thread - Cable OD 8~12mm - IP68 - Black
This cable gland has a metric thread pattern of M20xP1.5 and accommodates a cable size of 8 to 12mm. The gland is dust resistant and waterproof with an IP68 rating and also has a flammability rating of UL94V-2. Cable glands are often referred to as cord grips or strain reliefs and are designed to attach and secure the end of a cable to a receptacle box or equipment.
Color: Black
Material: Nylon 66
Thread: M20xP1.5
Mounting Hole: 20.0 ~ 20.3 mm [0.79 ~ 0.80 inches]
Cable Range: 8 ~ 12 mm[0.31 ~ 0.47 inches]
| Product | Cable Gland M20x1.5 Thread - Cable OD 8~12mm - IP68 - Black |
| Color | Black |
| Material | Nylon 66 |
| Thread | M20xP1.5 |
| Mounting Hole | 20.0 ~ 20.3 mm [0.79 ~ 0.80 inches] |
| Cable Range | 8 ~ 12 mm[0.31 ~ 0.47 inches] |
| Dimensions (mm) | D1 |
| Flammability Rating | UL94V-2 |
| IP68 Rated | Compliant |
| RoHS | Compliant |
| Package Quantity | 1 |
| Product Weight | 0.2 lbs [0.09kg] |
