Cable Gland M32x1.5 Thread - Cable OD 18~25mm - IP68
Click the image to zoom

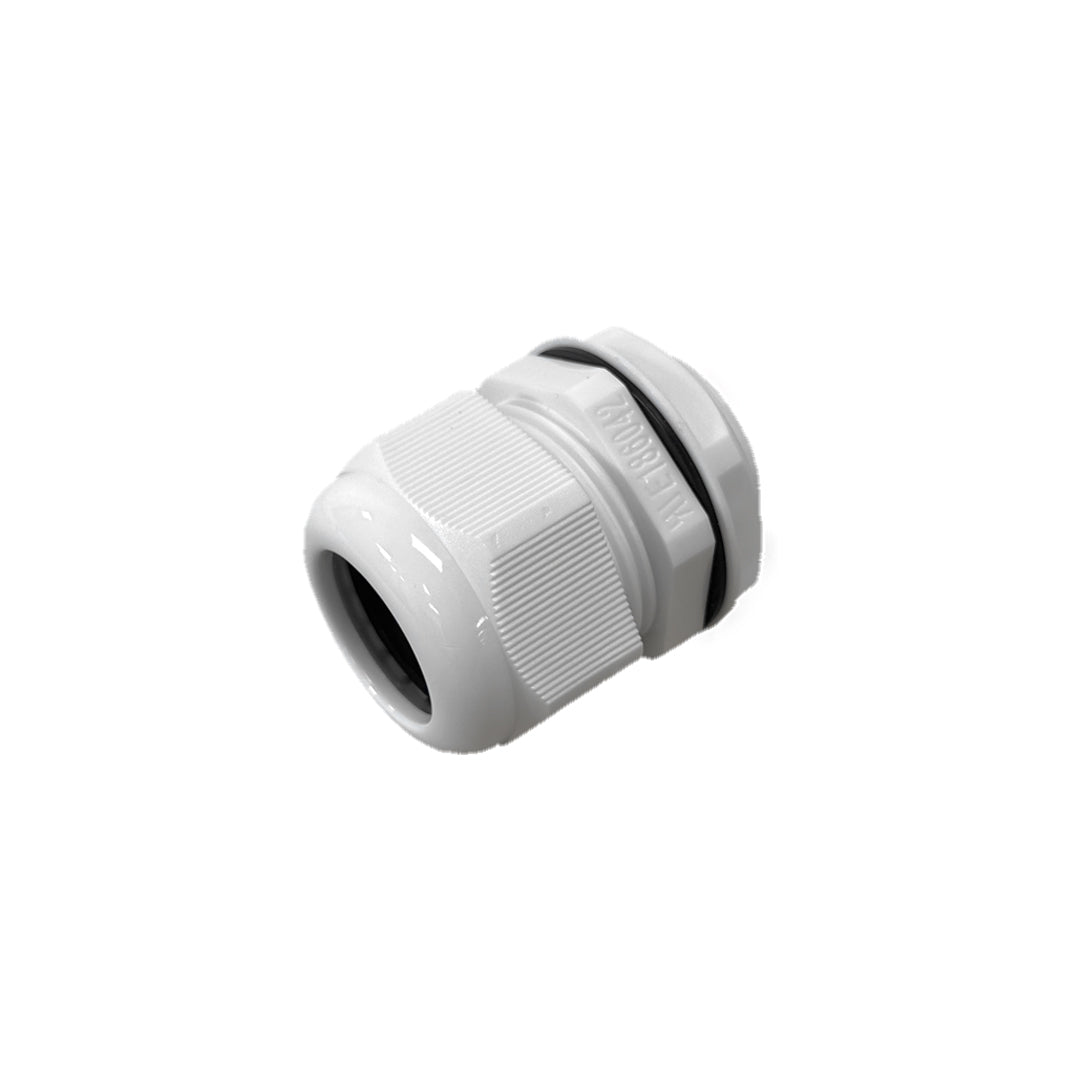

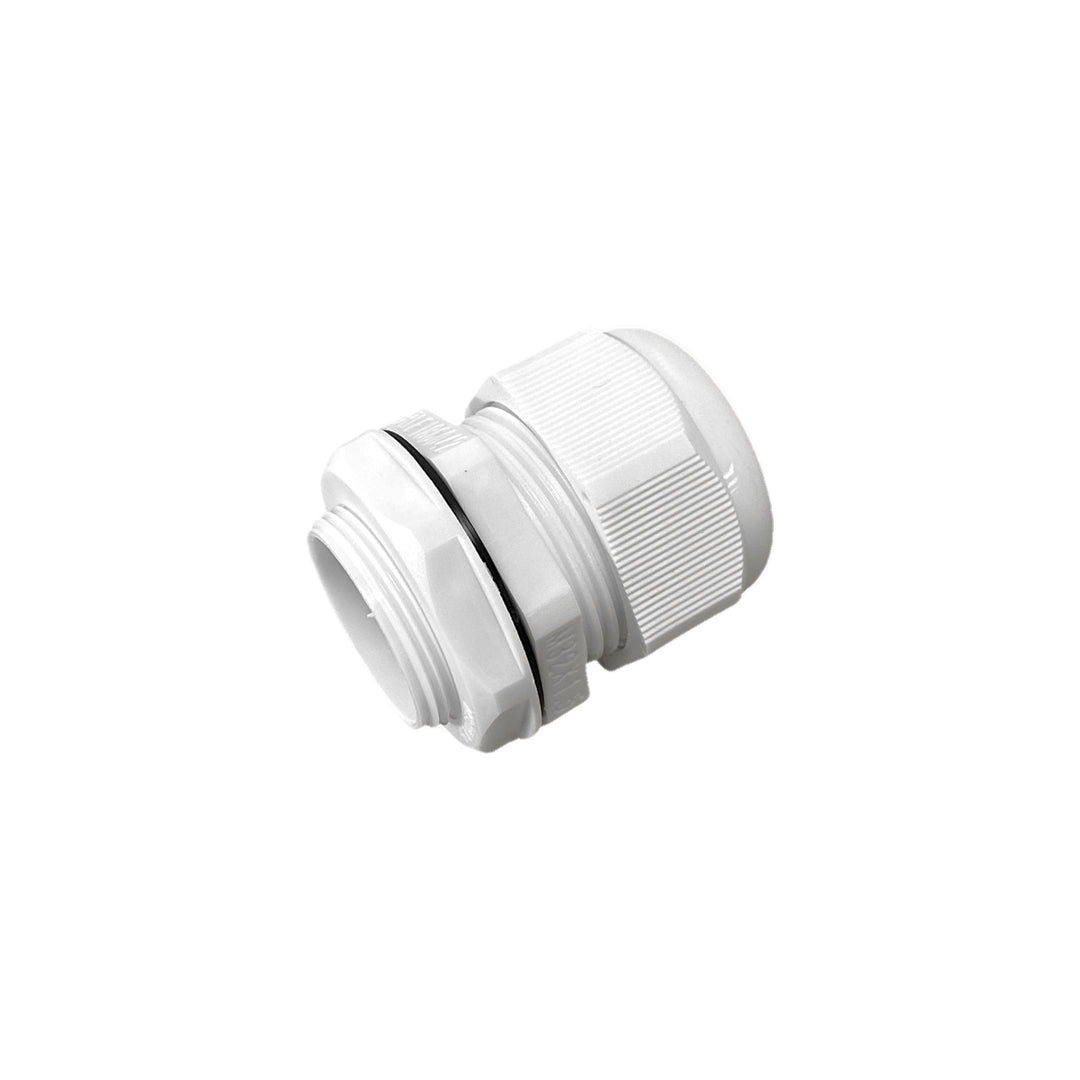

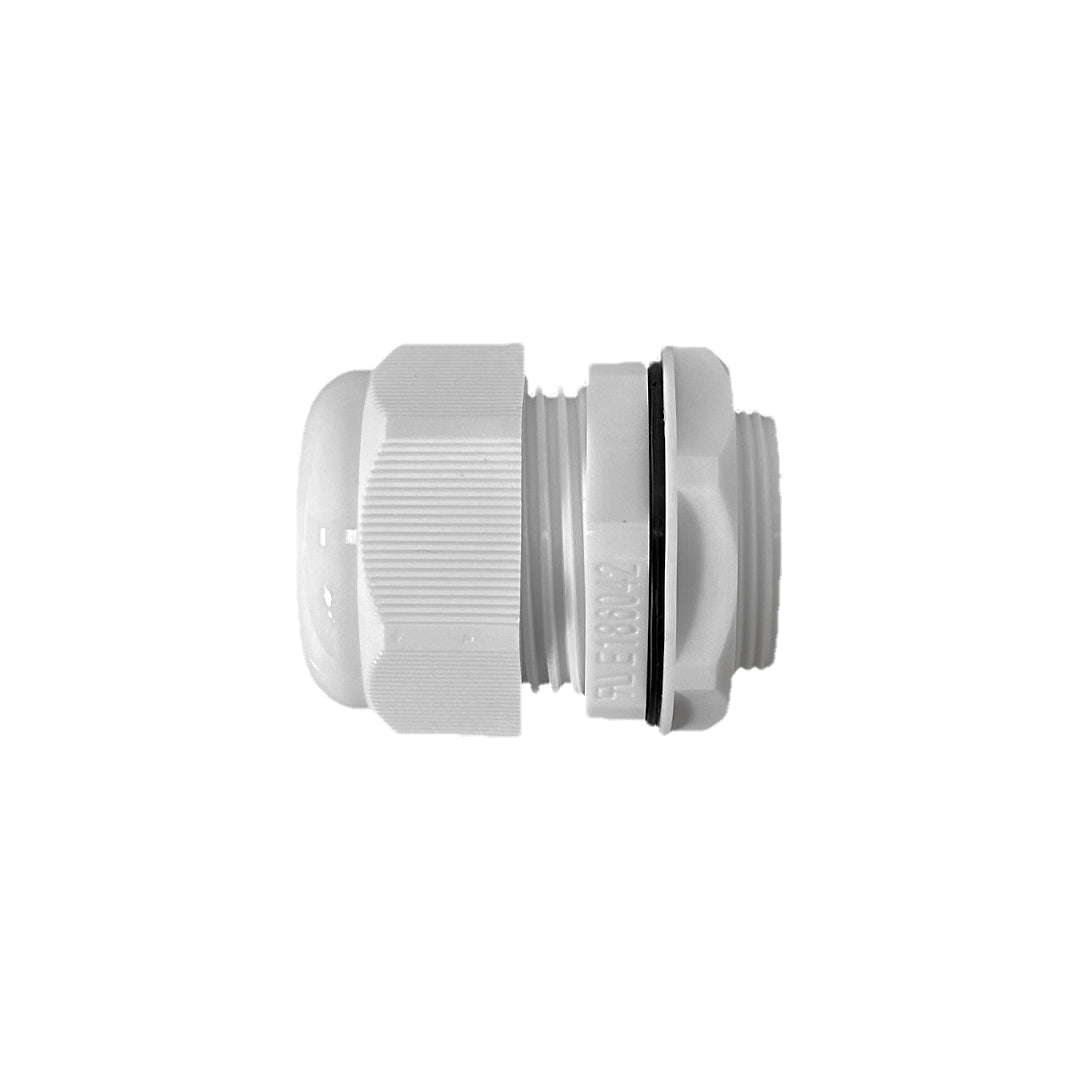

Cable Gland M32x1.5 Thread - Cable OD 18~25mm - IP68
$5.19
In stock
— ships in 1 business day
Description
This cable gland has a metric thread pattern of M32xP1.5 and accommodates a cable size of 18 to 25mm. The gland is dust resistant and waterproof with an IP68 rating and also has a flammability rating of UL94V-2. Cable glands are often referred to as cord grips or strain reliefs and are designed to attach and secure the end of a cable to a receptacle box or equipment.
Specifications
Cable Gland M32x1.5 Thread - Cable OD 18~25mm - IP68
This cable gland has a metric thread pattern of M32xP1.5 and accommodates a cable size of 18 to 25mm. The gland is dust resistant and waterproof with an IP68 rating and also has a flammability rating of UL94V-2. Cable glands are often referred to as cord grips or strain reliefs and are designed to attach and secure the end of a cable to a receptacle box or equipment.
Color: Black / White
Material: Nylon 66
Thread: M32xP1.5
Mounting Hole: 32.0 ~ 32.4 mm[1.26 ~ 1.28 inches]
Cable Range: 18 ~ 25 mm[0.71 ~ 0.98 inches]
| Product | Cable Gland M32x1.5 Thread - Cable OD 18~25mm - IP68 |
| Color | Black / White |
| Material | Nylon 66 |
| Thread | M32xP1.5 |
| Mounting Hole | 32.0 ~ 32.4 mm[1.26 ~ 1.28 inches] |
| Cable Range | 18 ~ 25 mm[0.71 ~ 0.98 inches] |
| Dimensions (mm) | D1 |
| Flammability Rating | UL94V-2 |
| IP68 Rated | Compliant |
| UL | Compliant |
| RoHS | Compliant |
| Package Quantity | 1 |
| Product Weight | 0.2 lbs [0.09kg] |
