J-Hook - 2 inch Steel (Used with Beam Clamp)
Click the image to zoom
J-Hook - 2 inch Steel (Used with Beam Clamp)
$5.31
In stock
— ships in 1 business day
Description

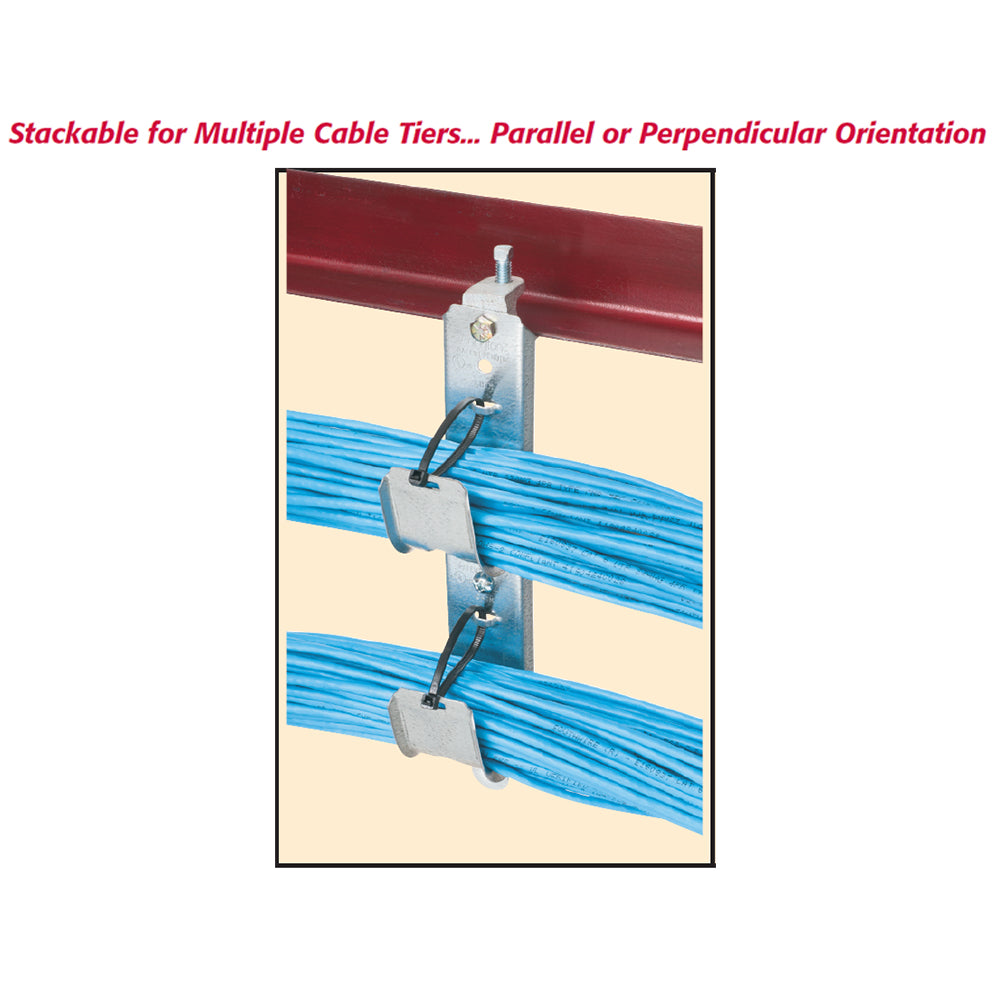

These J-Hooks are convenient for running communications cable and can be used with beam clamps. They support up to 90 Cat5e cables with the center radius of the bundle spread over the 2 inch opening. Attach them easily to various supports, beam clamps and struts. They are also stackable - in parallel or perpendicular orientation for vertical support of multiple tiers of cable and maintain the integrity of high performance data cable.
Specifications
J-Hook - 2 inch Steel (Used with Beam Clamp)
These J-Hooks are convenient for running communications cable and can be used with beam clamps. They support up to 90 Cat5e cables with the center radius of the bundle spread over the 2 inch opening. Attach them easily to various supports, beam clamps and struts.
Color: Silver
Material: Steel
Size: 2 inches
Trade Size: Up to 1 - 1/4 inch
Support Rating: 25 lbs
| Product | J-Hook - 2 inch Steel (Used with Beam Clamp) |
| Color | Silver |
| Material | Steel |
| Size | 2 inches |
| Trade Size | Up to 1 - 1/4 inch |
| Support Rating | 25 lbs |
| Fire Rating | Plenum Rated [NEC code 300-22(c)] |
| CC-BC0250 | 1" Beam Clamp 75lb Load, 1/4-20 Thread |
| CC-SC01-075-25 | Screw, 1/4-20, 3/4 inch Length, Pan-Head, Quadrex Zinc (25 pack) |
| CC-HN01-075-25 | Hex Nut, 1/4-20, Quadrex Zinc (25 pack) |
| Arlington Industries Number | CH1M |
| c(UL)us | Compliant |
| Package Quantity | 1 |
| Product Weight | 0.21 lbs [0.10 kg] |
| Included in Package | 1 J-Hook |
