NEMA 5-15R to IEC C14 Power Cable - SJT Jacket
$3.00
In stock
— ships in 1 business day
Description

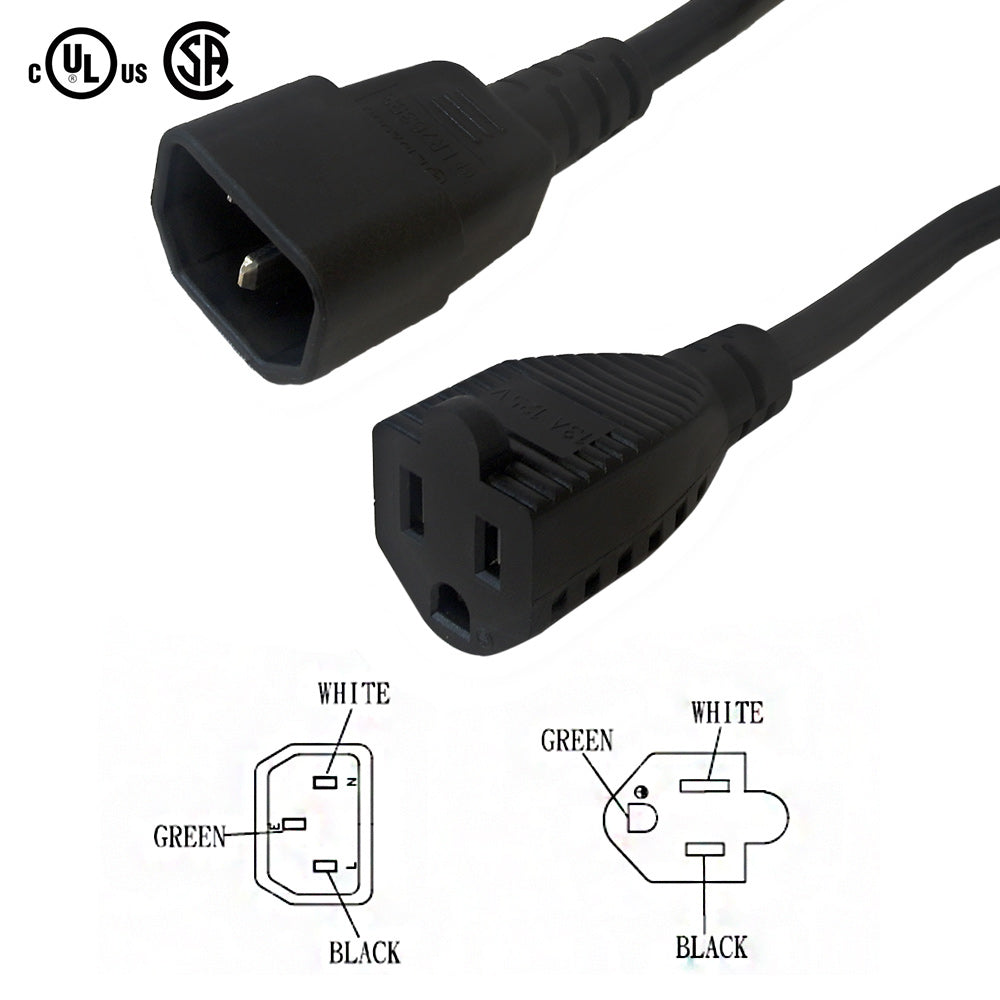

This power cord consists of a C14 male on one end and a 5-15R female on the other end. It is typically used as an extension cable. These cables are constructed with UL mandated inner plastic frame molds to enhance terminal alignment and produce a high quality connector. Premium quality connectors are used to ensure a secure fit. Each assembly is 100% continuity tested and 100% HVT (High Voltage) tested and inspected before shipping.
Specifications
NEMA 5-15R to IEC C14 Power Cable - SJT Jacket
This power cord consists of a C14 male on one end and a 5-15R female on the other end. It is typically used as an extension cable. These cables are constructed with UL mandated inner plastic frame molds to enhance terminal alignment and produce a high quality connector.
Color: Black
Number of Conductors: 3 Conductor
Wire Gauge: 14 AWG / 16 AWG
Jacket: Heavy Duty SJT
Jacket Material: 100% Virgin PVC - Polyvinyl Chloride
| Product | NEMA 5-15R to IEC C14 Power Cable - SJT Jacket |
| Color | Black |
| Number of Conductors | 3 Conductor |
| Wire Gauge | 14 AWG / 16 AWG |
| Jacket | Heavy Duty SJT |
| Jacket Material | 100% Virgin PVC - Polyvinyl Chloride |
| Jacket Fire Rating | VW-1 |
| Strain Relief | Molded 100% Virgin PVC |
| Conductor Material | 100% bare copper |
| Temperature Rating | -20 deg C to 105 deg C |
| Connector A | NEMA 5-15R |
| Connector B | IEC 60320 C14 |
| Power Rating | 15 Amp / 125 Volt (14 AWG)13 Amp / 125 Volt (16 AWG) |
| Cable | c(UL)us |
| ISO | ISO 9001:2015, ISO 14000 |
| RoHS | Compliant |
