1ft NEMA 5-15P to NEMA 5-20R Power Cable - 14AWG - SJT Jacke
Click the image to zoom

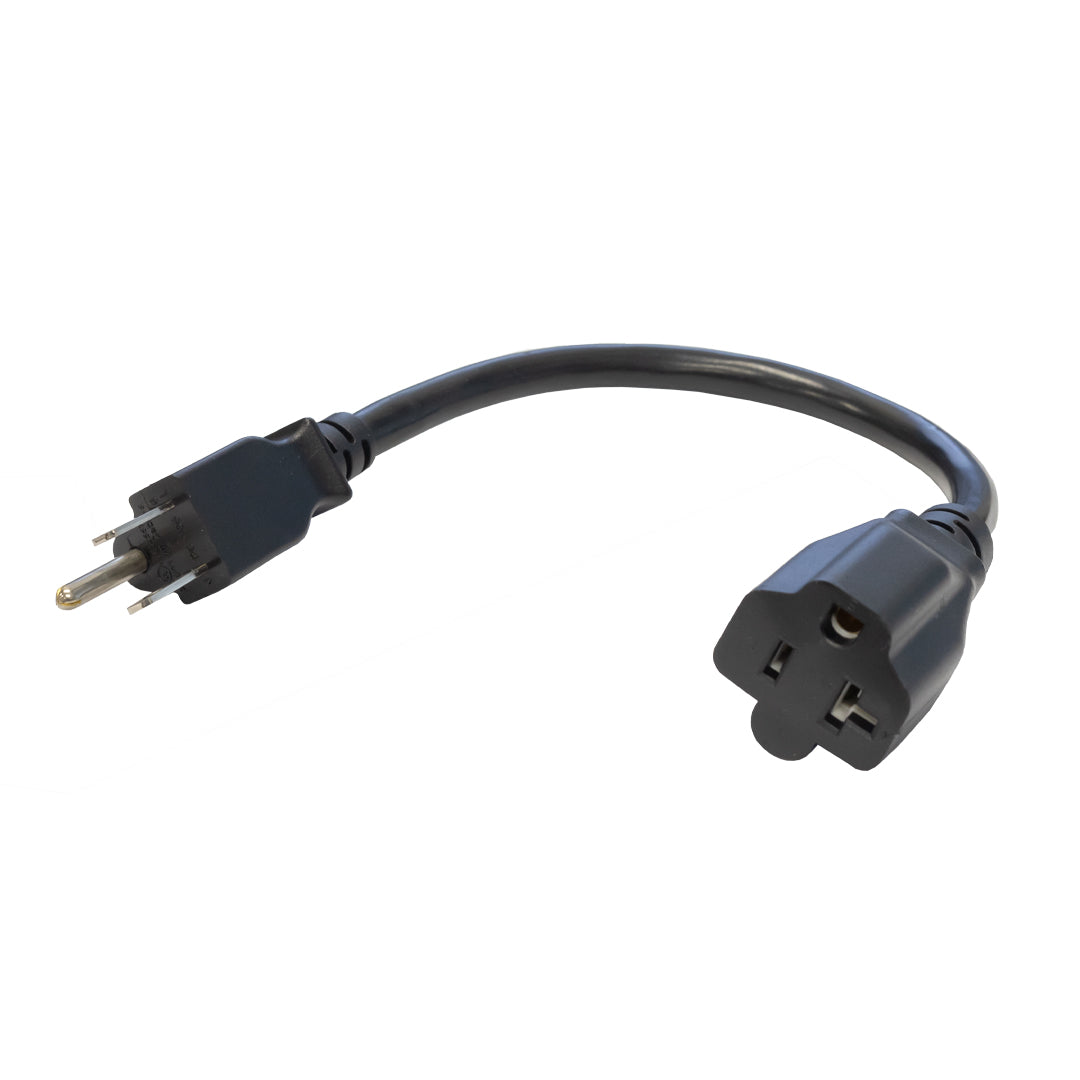

1ft NEMA 5-15P to NEMA 5-20R Power Cable - 14AWG - SJT Jacket
$4.69
In stock
— ships in 1 business day
Description
This power cord consists of a 5-15P male on one end and a 5-20R female on the other end. It is typically used as an extension cable. These cables are constructed with UL mandated inner plastic frame molds to enhance terminal alignment and produce a high quality connector. Premium quality connectors are used to ensure a secure fit. Each assembly is 100% continuity tested and 100% HVT (High Voltage) tested and inspected before shipping.
Specifications
1ft NEMA 5-15P to NEMA 5-20R Power Cable - 14AWG - SJT Jacket
This power cord consists of a 5-15P male on one end and a 5-20R female on the other end. It is typically used as an extension cable. These cables are constructed with UL mandated inner plastic frame molds to enhance terminal alignment and produce a high quality connector.
Cable Length: 1 foot [0.3m]
Color: Black
Number of Conductors: 3 Conductor
Wire Gauge: 14 AWG
Jacket: Heavy Duty SJT
| Product | 1ft NEMA 5-15P to NEMA 5-20R Power Cable - 14AWG - SJT Jacket |
| Cable Length | 1 foot [0.3m] |
| Color | Black |
| Number of Conductors | 3 Conductor |
| Wire Gauge | 14 AWG |
| Jacket | Heavy Duty SJT |
| Jacket Material | 100% Virgin PVC - Polyvinyl Chloride |
| Jacket Fire Rating | FT2VW-1 |
| Strain Relief | Molded 100% Virgin PVC |
| Temperature Rating | -20℃ to 105℃ |
| Connector A | NEMA 5-15P |
| Connector B | NEMA 5-15R/5-20R T-Slot |
| Power Rating | 15 Amp / 125 Volt |
| 5-15P | c(UL)us |
| 5-20R | c(UL)us |
| Cable | c(UL)us |
