Hospital Grade 6-20P to C19 Power Cable - 12AWG - SJT (20A/2
Click the image to zoom
Hospital Grade 6-20P to C19 Power Cable - 12AWG - SJT (20A/250V)
$18.19
In stock
— ships in 1 business day
Description

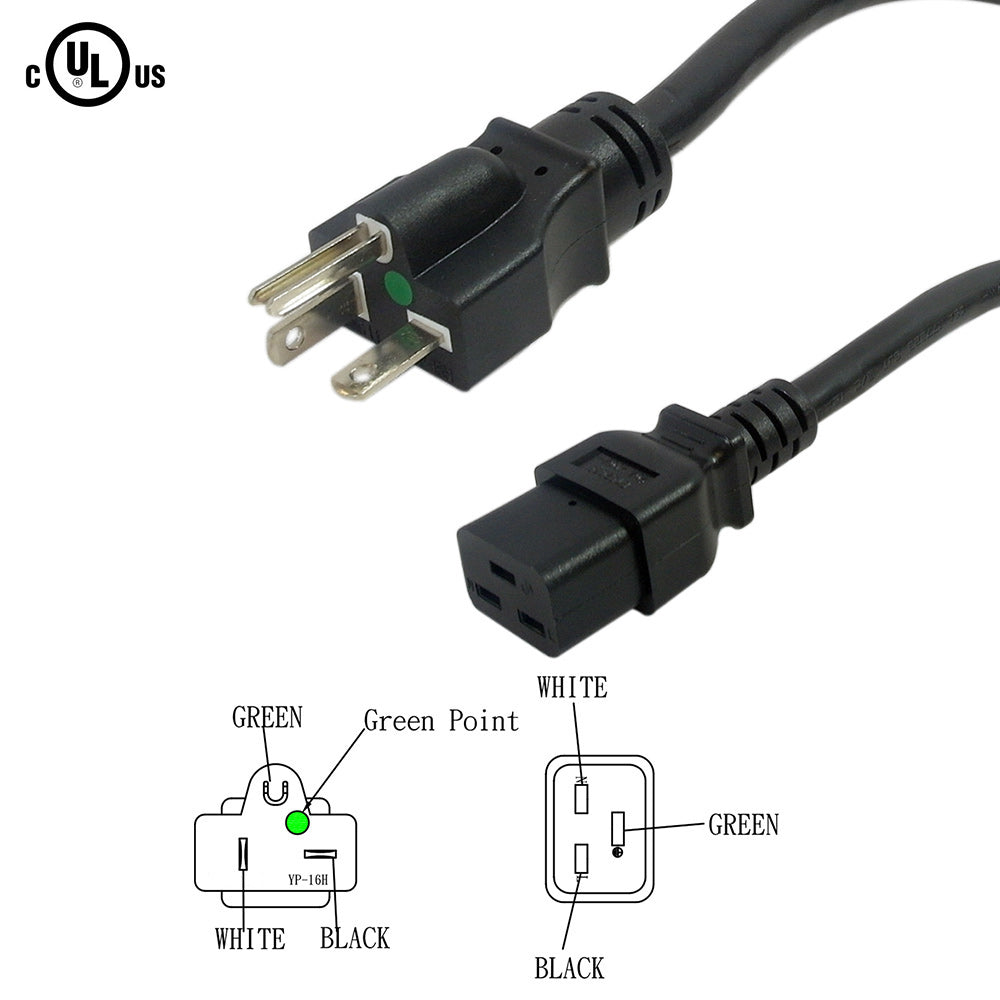

This power cord consists of a 6-20P hospital grade male on one end and a C19 female on the other end. It is typically used to connect hospital equipment to a wall outlet. These cables are constructed with UL mandated inner plastic frame molds to enhance terminal alignment and produce a high quality connector. Premium quality connectors are used to ensure a secure fit. Each assembly is 100% continuity tested and 100% HVT (High Voltage) tested and inspected before shipping.
Specifications
Hospital Grade 6-20P to C19 Power Cable - 12AWG - SJT (20A/250V)
This power cord consists of a 6-20P hospital grade male on one end and a C19 female on the other end. It is typically used to connect hospital equipment to a wall outlet. These cables are constructed with UL mandated inner plastic frame molds to enhance terminal alignment and produce a high quality connector.
Color: Black
Number of Conductors: 3 Conductor
Wire Gauge: 12 AWG
Jacket: Heavy Duty SJT
Jacket Material: 100% Virgin PVC - Polyvinyl Chloride
| Product | Hospital Grade 6-20P to C19 Power Cable - 12AWG - SJT (20A/250V) |
| Color | Black |
| Number of Conductors | 3 Conductor |
| Wire Gauge | 12 AWG |
| Jacket | Heavy Duty SJT |
| Jacket Material | 100% Virgin PVC - Polyvinyl Chloride |
| Jacket Fire Rating | FT2VW-1 |
| Strain Relief | Molded 100% Virgin PVC |
| Temperature Rating | -20 deg C to 105 deg C |
| Connector A | IEC 60320 C19 |
| Connector B | NEMA 6-20P Hospital Grade |
| Power Rating | 20 Amp / 250 Volt |
| C19 | (UL) |
| 6-20P | (UL) |
| Cable | c(UL)us, CSA |
| ISO | ISO 9001:2000, ISO 14000 |
