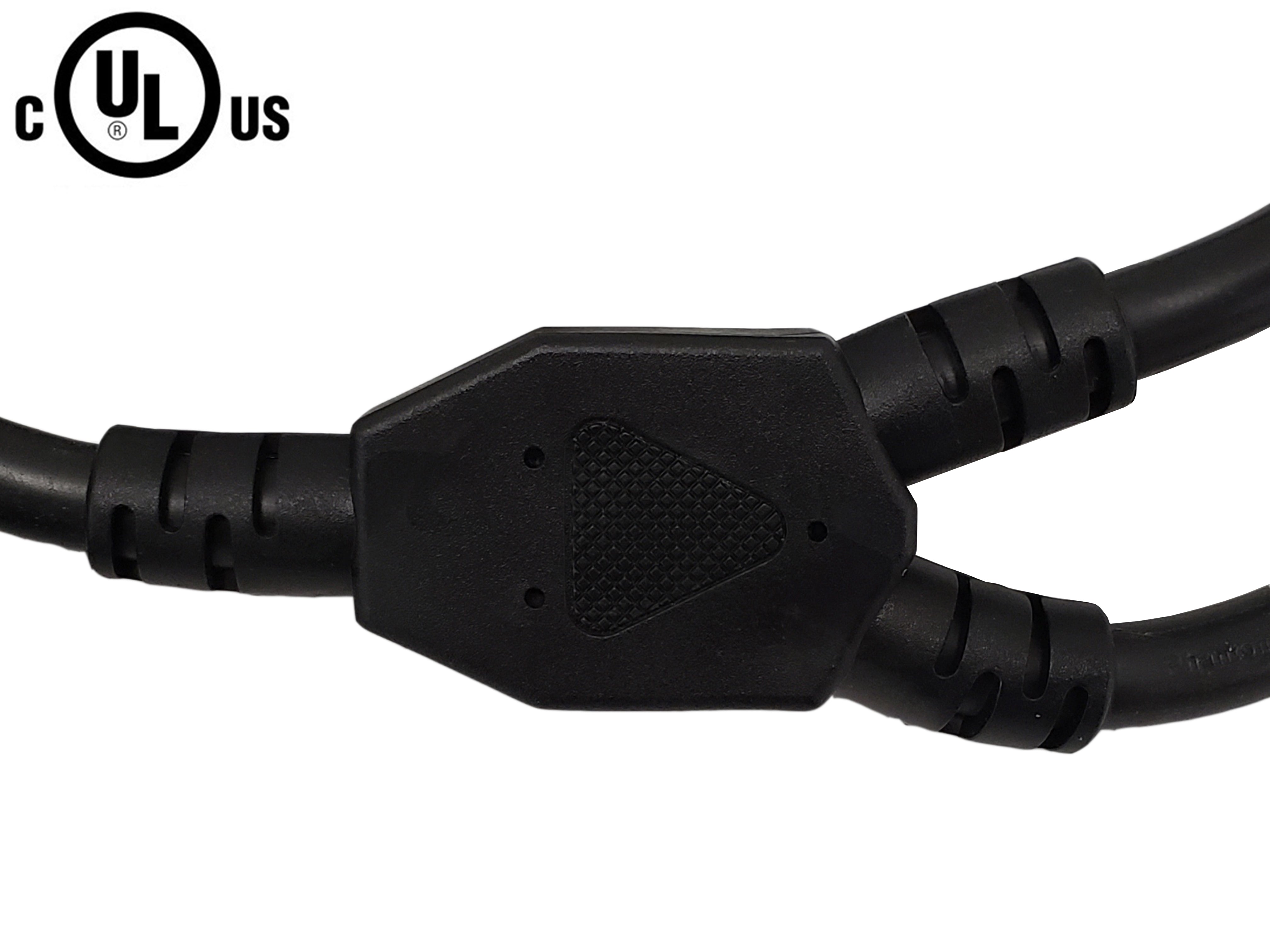

1ft IEC C14 to 2x NEMA 5-15R Power Splitter Cable - 16AWG (13A 125V) - SJT
$7.69
In stock
— ships in 1 business day
Description
This power cord consists of a C14 male on one end and two 5-15R females on the other end. It is typically used on devices with multiple power supplies sharing one receptacle. These cables are constructed with UL mandated inner plastic frame molds to enhance terminal alignment and high quality molds. The connectors premium quality to ensure a snug fit into PDU receptacles. Each assembly is 100% continuity tested and 100% HVT (High Voltage) tested and inspected before shipping.
Specifications

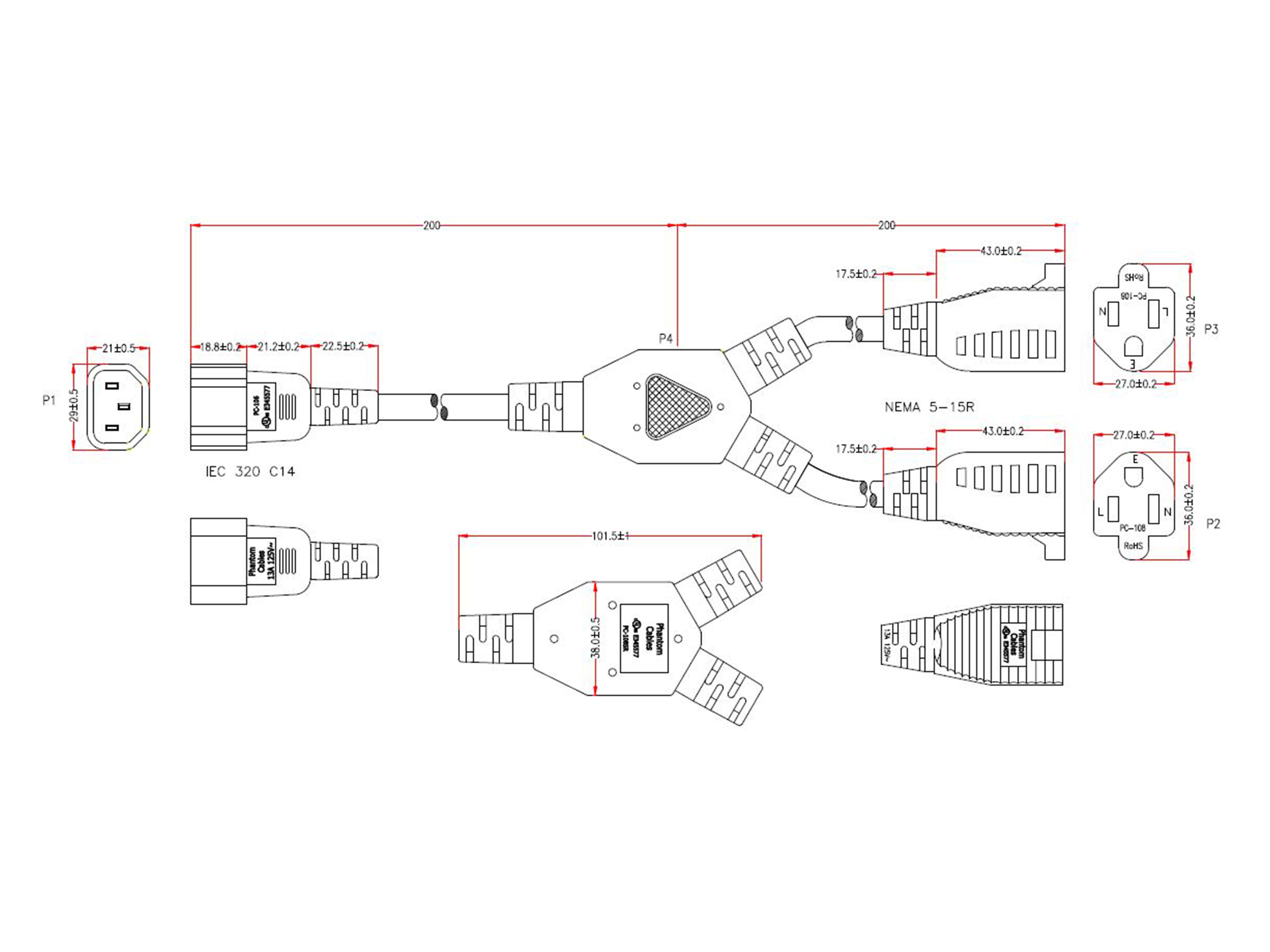

1ft IEC C14 to 2x NEMA 5-15R Power Splitter Cable - 16AWG (13A 125V) - SJT
This power cord consists of a C14 male on one end and two 5-15R females on the other end. It is typically used on devices with multiple power supplies sharing one receptacle. These cables are constructed with UL mandated inner plastic frame molds to enhance terminal alignment and high quality molds.
Cable Length: 1 foot [0.3m]
Color: Black
Number of Conductors: 3 Conductor
Wire Gauge: 16AWG
Jacket: Heavy Duty SJT
| Product | 1ft IEC C14 to 2x NEMA 5-15R Power Splitter Cable - 16AWG (13A 125V) - SJT |
| Cable Length | 1 foot [0.3m] |
| Color | Black |
| Number of Conductors | 3 Conductor |
| Wire Gauge | 16AWG |
| Jacket | Heavy Duty SJT |
| Jacket Material | 100% Virgin PVC - Polyvinyl Chloride |
| Jacket Fire Rating | VW-1 |
| Strain Relief | Molded 100% Virgin PVC |
| Conductor Material | 100% bare copper |
| Temperature Rating | -20℃ to 105℃ |
| Connector A | IEC 60320 C14 |
| Connector B | NEMA 5-15R |
| Power Rating | 13 Amp / 125 Volt |
| C14 | c(UL)us |
| 5-15R | c(UL)us |
