C13 Locking Receptacle - 4 Tier - 6.3mm Terminal, 1.5mm Pane
Click the image to zoom

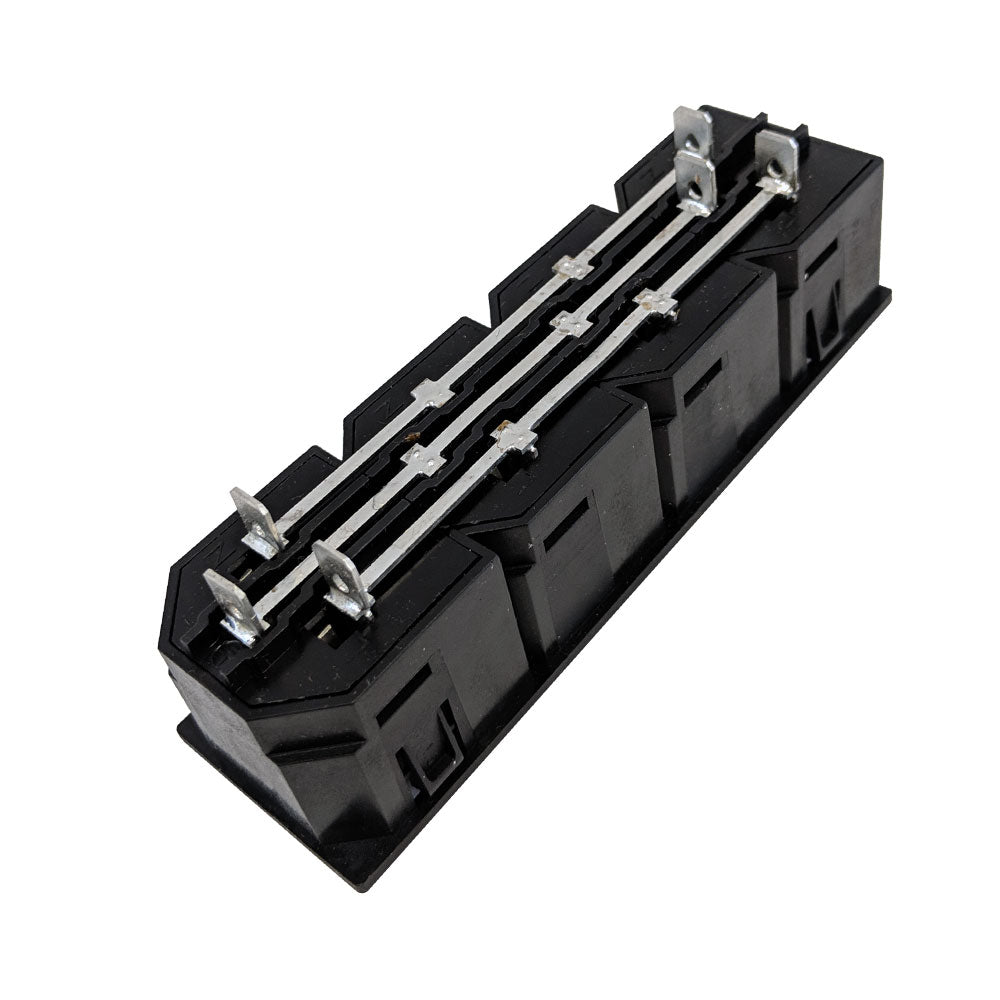

C13 Locking Receptacle - 4 Tier - 6.3mm Terminal, 1.5mm Panel Thickness - Black (IEC-Lock Part #: PA135015BK4)
$19.69
In stock
— ships in 1 business day
Description
This power outlet has four locking female C13 connectors on one side and a solder/quick connect terminal on the other. This outlet is typically used to provide maximum retention when connecting a C14 power cable to the locking C13 power outlet. Compatible with any C14 cable.
Specifications
C13 Locking Receptacle - 4 Tier - 6.3mm Terminal, 1.5mm Panel Thickness - Black (IEC-Lock Part #: PA135015BK4)
This power outlet has four locking female C13 connectors on one side and a solder/quick connect terminal on the other. This outlet is typically used to provide maximum retention when connecting a C14 power cable to the locking C13 power outlet. Compatible with any C14 cable.
Connection Type: Snap-in Mounting From Front
Color: Black
Material (Body): Thermoplastic UL94V-0
Materials Socket: Black Polyamide 66 (PA66) UL94V-0
Material Rating: LSZH - Low Smoke Zero Halogen
| Product | C13 Locking Receptacle - 4 Tier - 6.3mm Terminal, 1.5mm Panel Thickness - Black (IEC-Lock Part #: PA135015BK4) |
| Connection Type | Snap-in Mounting From Front |
| Color | Black |
| Material (Body) | Thermoplastic UL94V-0 |
| Materials Socket | Black Polyamide 66 (PA66) UL94V-0 |
| Material Rating | LSZH - Low Smoke Zero Halogen |
| Connector Plating | Nickel |
| Rating | 10A/250V AC |
| Insulation Resistance | 10M (500V DC, 1Min.) |
| Dielectric Strength | 2KV (50Hz 1 Min) to Accessible Surfaces |
| Lock Retention | >100N |
| Panel Mount | Compliant |
| Panel Thickness | Black & White IEC320 Snap-in 1mm or 1.5mm |
| Solder/QC Dimensions | 6.5 x 1.6mm |
| IEC-Lock Part # | PA135015BK4 |
| C13 x 4 | Female |
