Wall Mount Swing-Out Cabinet 12U x 18.5 inch Usable Depth -
Click the image to zoom
Wall Mount Swing-Out Cabinet 12U x 18.5 inch Usable Depth - Black
$242.63
In stock
— ships in 1 business day
Description

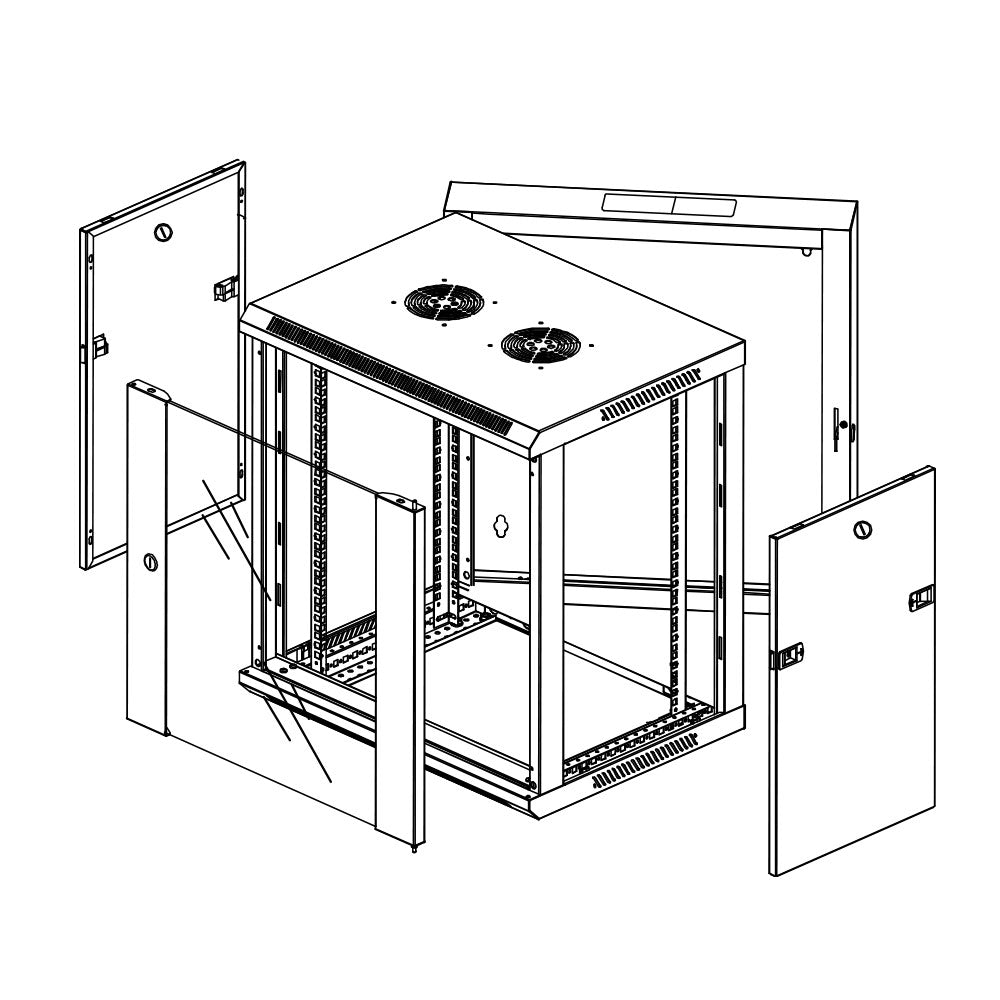

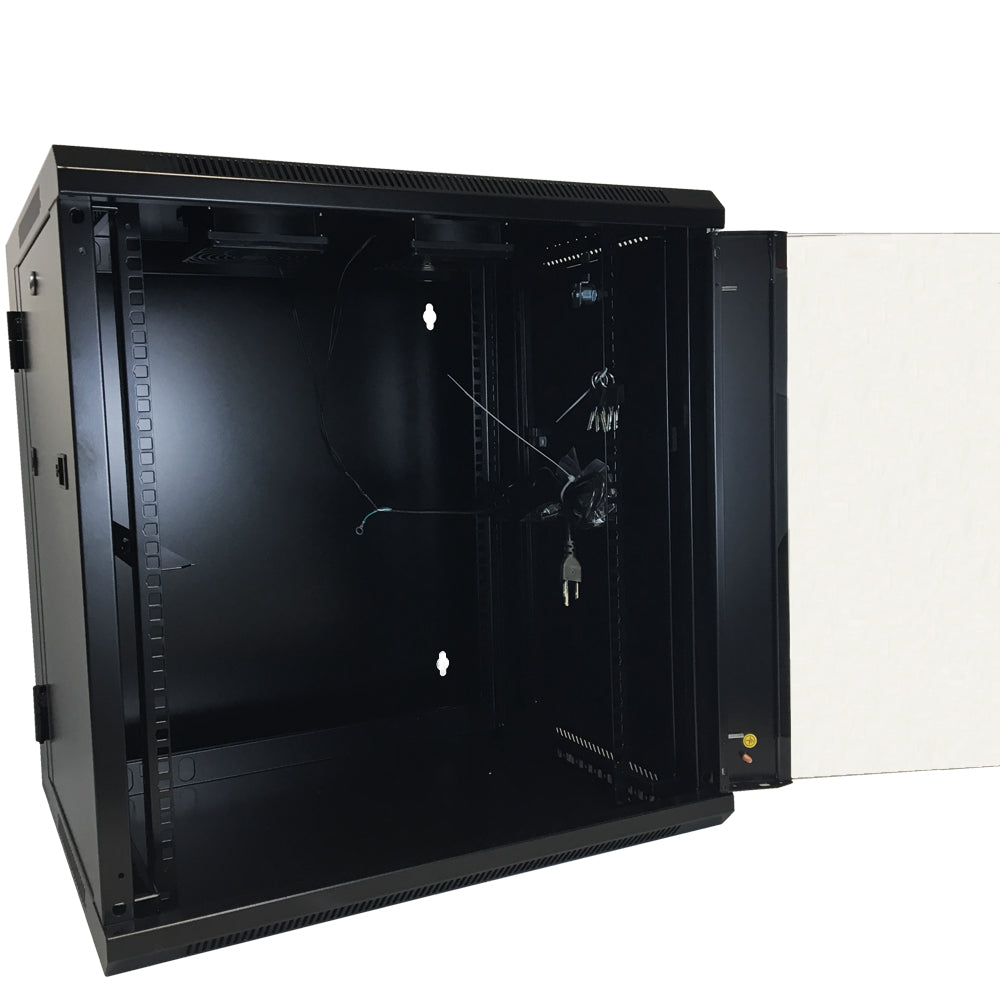

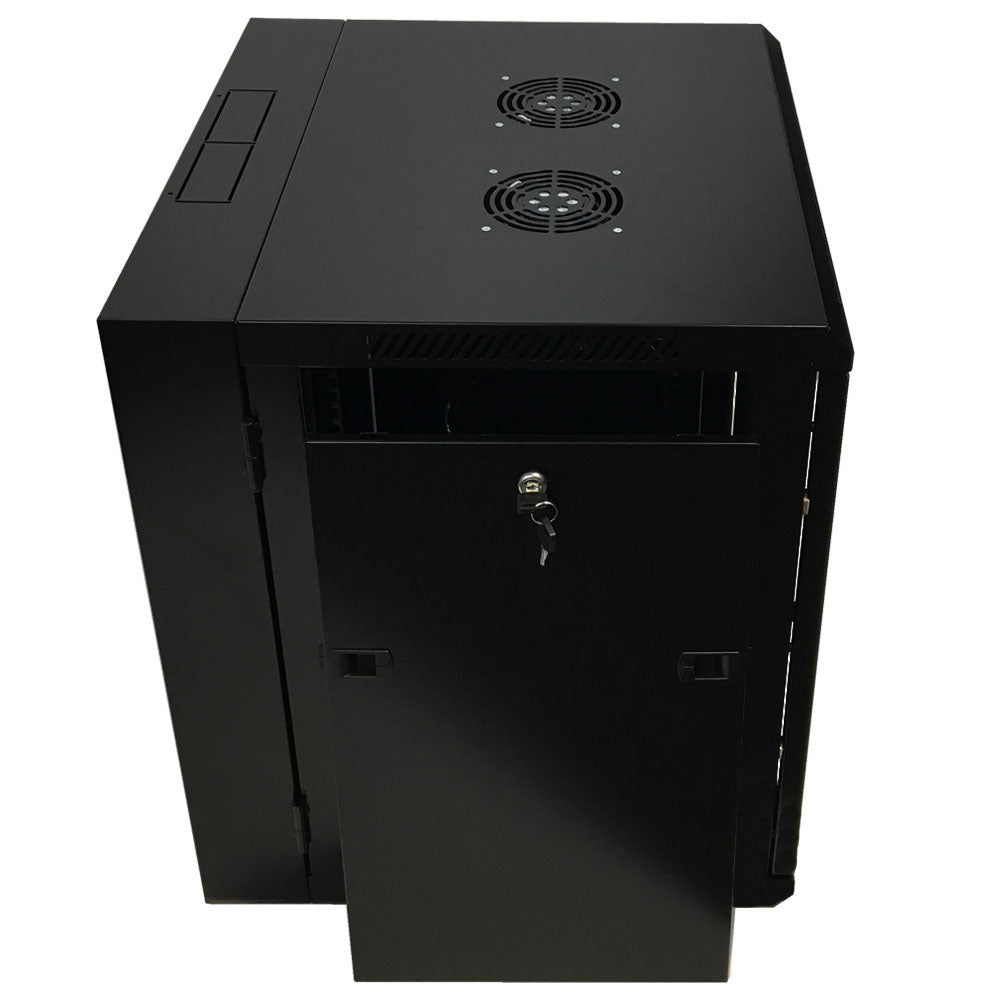

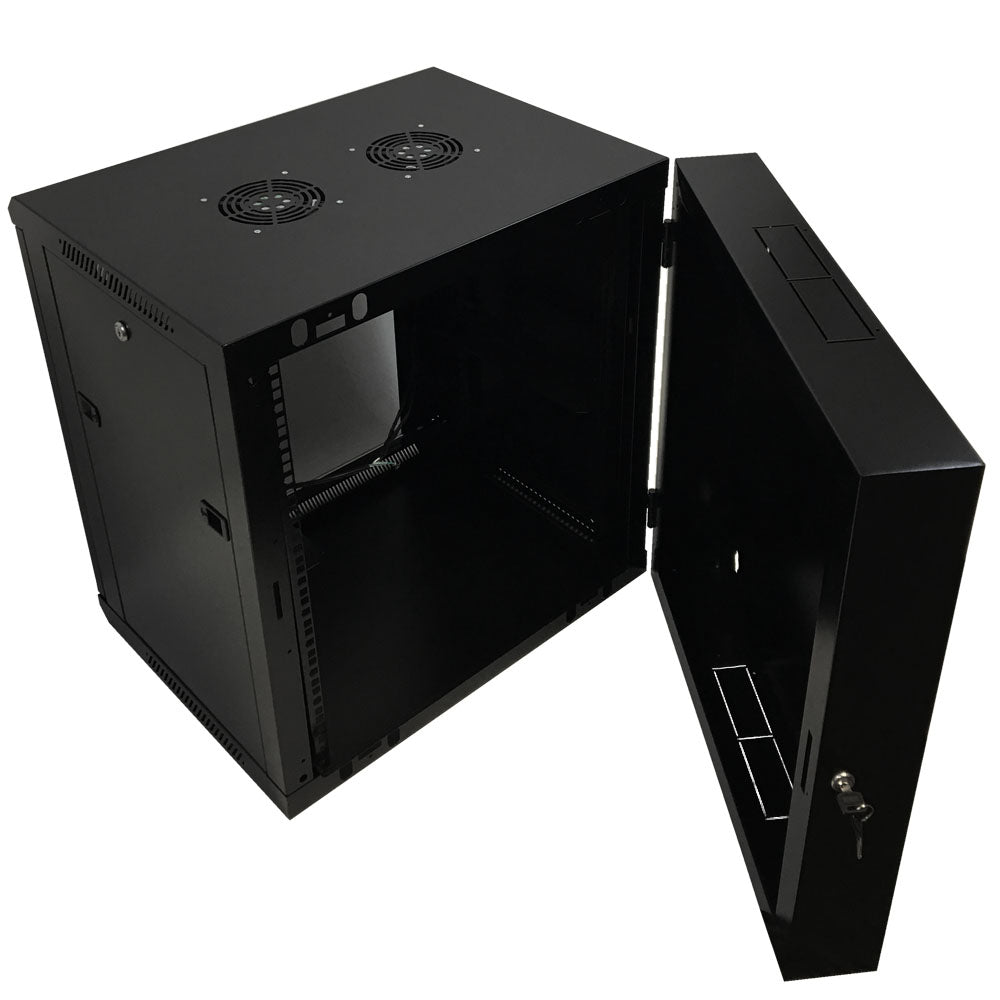

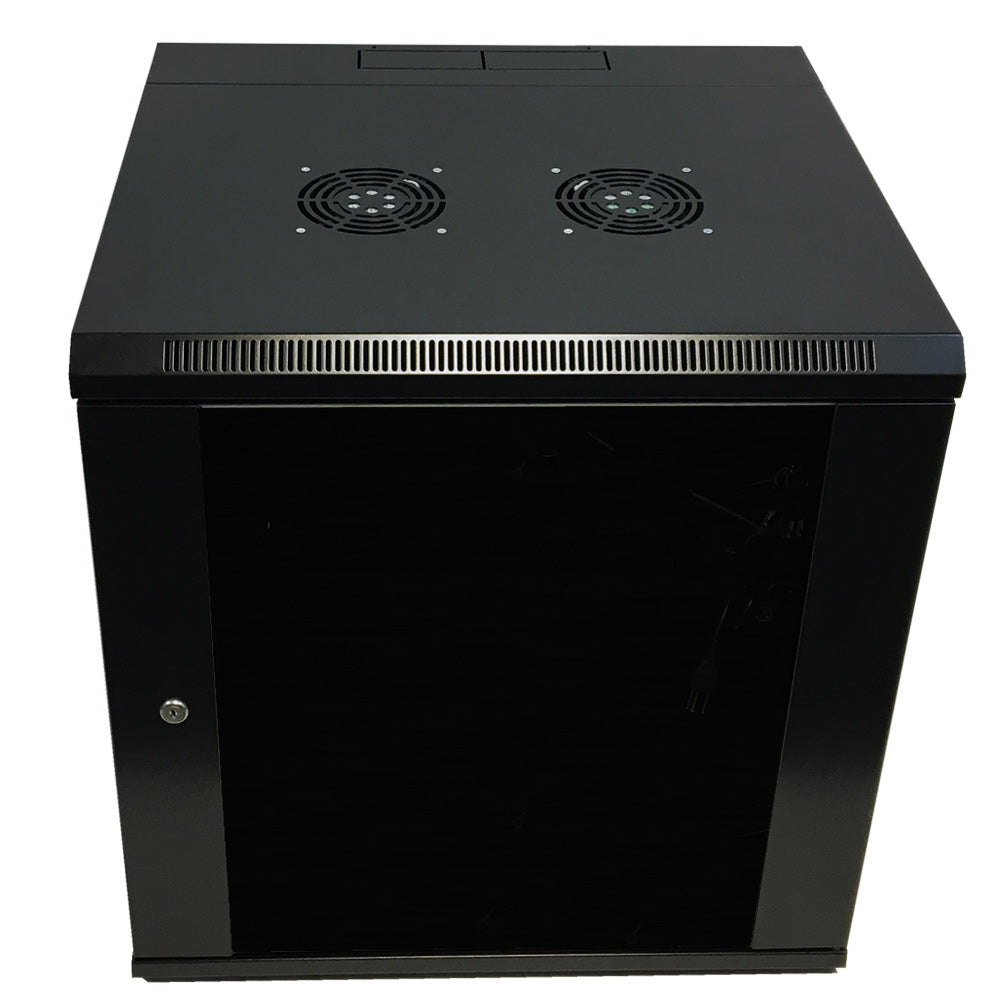

This 12U wall mount swing-out cabinet comes with a lockable front door, lockable swing out back and removable/lockable side panels. The swing-out back door allows for easy access during installation. It is typically used for housing network and DVR equipment used in small offices and homes. (Fans sold separately. Click here for fan kit).
Specifications
Wall Mount Swing-Out Cabinet 12U x 18.5 inch Usable Depth - Black
This 12U wall mount swing-out cabinet comes with a lockable front door, lockable swing out back and removable/lockable side panels. The swing-out back door allows for easy access during installation. It is typically used for housing network and DVR equipment used in small offices and homes.
Color: Black - Powder Coated
Material: SPCC Cold Rolled Steel
Material Thickness: Rails:1.35mm, Others:1.0 mm
Front Door: Removable Front Door, Opening Angle is Over 180℃s, Lockable
Swingout Back: Opening Angle is Over 90℃s, Lockable - Requires Two Keys to Open
| Product | Wall Mount Swing-Out Cabinet 12U x 18.5 inch Usable Depth - Black |
| Color | Black - Powder Coated |
| Material | SPCC Cold Rolled Steel |
| Material Thickness | Rails:1.35mm, Others:1.0 mm |
| Front Door | Removable Front Door, Opening Angle is Over 180℃s, Lockable |
| Swingout Back | Opening Angle is Over 90℃s, Lockable - Requires Two Keys to Open |
| Lockable Side Panels | Compliant |
| Removable Side Panels | Compliant |
| Adjustable Mounting Profile Installation | Compliant |
| Assembly Required | No |
| Loading Capacity | Maximum 110 lbs [50 kg] |
| Cable Entries | Cable Entry on Top and Bottom Panels |
| Width | 19 inches |
| Capacity | 12U |
| Product Dimensions | 24.8H, 23.6 W, 21.6 D inches [63 H, 60 W, 55 D cm] |
| Mounting Rails | 2 pairs of square hole railsAdjustable depth 75mm, 85mm, 95mm 105mm, 115mm (Measured from the Glass to the Rail) |
