Fan Kit for RM-500 Series Wall Mount Cabinets - Low Decibel
Click the image to zoom
Fan Kit for RM-500 Series Wall Mount Cabinets - Low Decibel 28dBa - 55 CFM - Pair
$48.38
In stock
— ships in 1 business day
Description

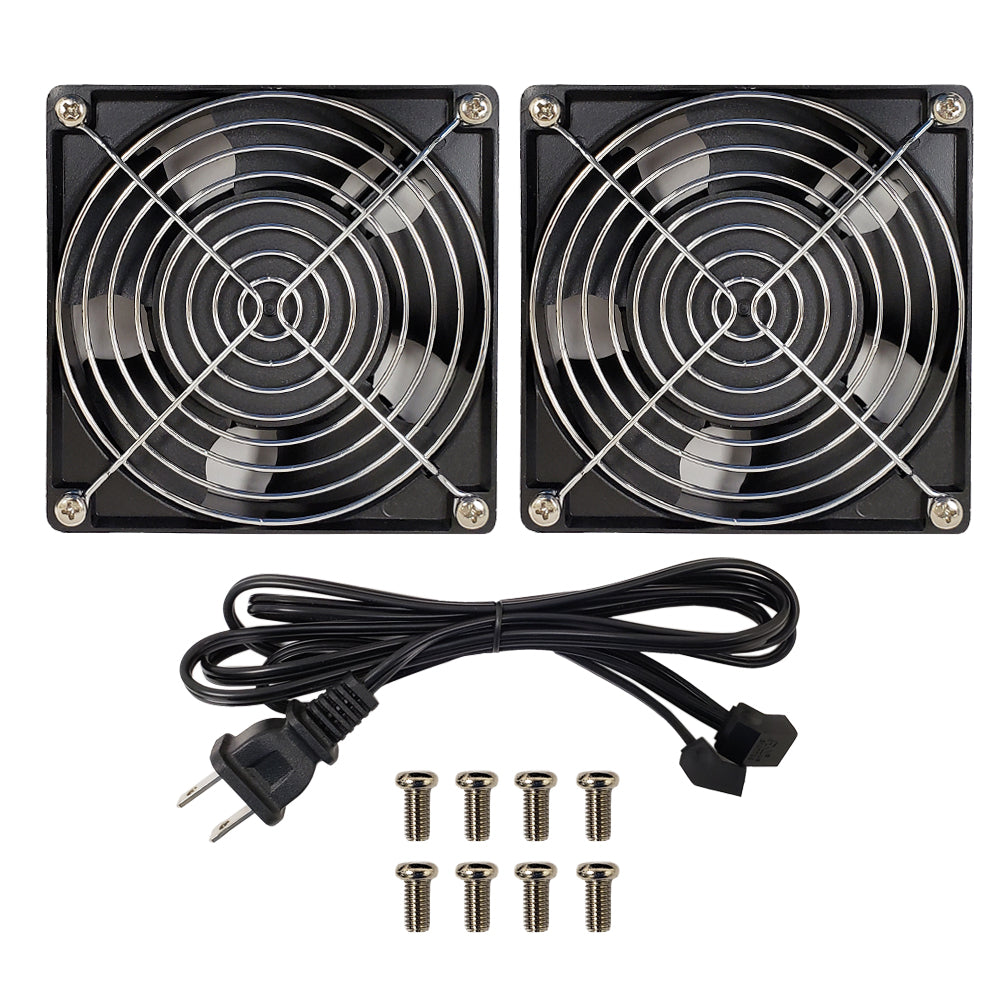

This pair of fans are designed to fit our RM-500 series of wall mount cabinets. Included in the kit is a pair of fans, power splitter cable, fan covers and mounting screws. The fans produce only 28dBA of sound per fan and have combined air flow of 110 CFM.
Specifications
Fan Kit for RM-500 Series Wall Mount Cabinets - Low Decibel 28dBa - 55 CFM - Pair
This pair of fans are designed to fit our RM-500 series of wall mount cabinets. Included in the kit is a pair of fans, power splitter cable, fan covers and mounting screws. The fans produce only 28dBA of sound per fan and have combined air flow of 110 CFM.
Color: Black
Material: Impeller: Thermoplasty PBT of UL94V-0Bobbin: Thermoplasty PA66 of UL94V-0Lead Wire: UL 1430 AWG#22Housing: Die-Cast Aluminum
Dimensions: 120 x 120 x 38mm
Bearing System: Ball Bearing
Rated Voltage: 115V AC
| Product | Fan Kit for RM-500 Series Wall Mount Cabinets - Low Decibel 28dBa - 55 CFM - Pair |
| Color | Black |
| Material | Impeller: Thermoplasty PBT of UL94V-0Bobbin: Thermoplasty PA66 of UL94V-0Lead Wire: UL 1430 AWG#22Housing: Die-Cast Aluminum |
| Dimensions | 120 x 120 x 38mm |
| Bearing System | Ball Bearing |
| Rated Voltage | 115V AC |
| Operating Voltage | 100V AC~120V AC |
| Start-up Voltage | 80V AC Normally |
| Rated Current | 0.11 Amps Normally |
| Rated Power | 10 Watts Normally |
| Rated Speed | 1700 RPM +/- 10% |
| Air Flow | 1.56 m3 / min 55 CFM (per fan) |
| Static Air Pressure | 2.0mm H2O |
| Noise Level | 28dBA (per fan) |
| Motor Protection Type | By Impedance |
| Life Expectancy | 50,000 Hours at Room Temperature |
