19 inch Open Frame Wall Mount Rack - 18 inch Depth - 8U
Click the image to zoom
19 inch Open Frame Wall Mount Rack - 18 inch Depth - 8U
$110.81
In stock
— ships in 1 business day
Description
This open frame wall mount rack is 8U in height and 18 inch in depth. It is used for mounting 19 inch wide networking equipment.
Specifications
19 inch Open Frame Wall Mount Rack - 18 inch Depth - 8U
This open frame wall mount rack is 8U in height and 18 inch in depth. It is used for mounting 19 inch wide networking equipment.
Color: Black
Finish: Powder Painted
Material: SPCC Cold Rolled Steel
Material Thickness: Rails:2.0mm, Others: 1.5mm
Mounting Height in units: 8U
| Product | 19 inch Open Frame Wall Mount Rack - 18 inch Depth - 8U |
| Color | Black |
| Finish | Powder Painted |
| Material | SPCC Cold Rolled Steel |
| Material Thickness | Rails:2.0mm, Others: 1.5mm |
| Mounting Height in units | 8U |
| Mounting Height in inches | 14 inch |
| Mounting Depth | 18 inch |
| Rail Mounting Style | 10-32 Threaded Hole |

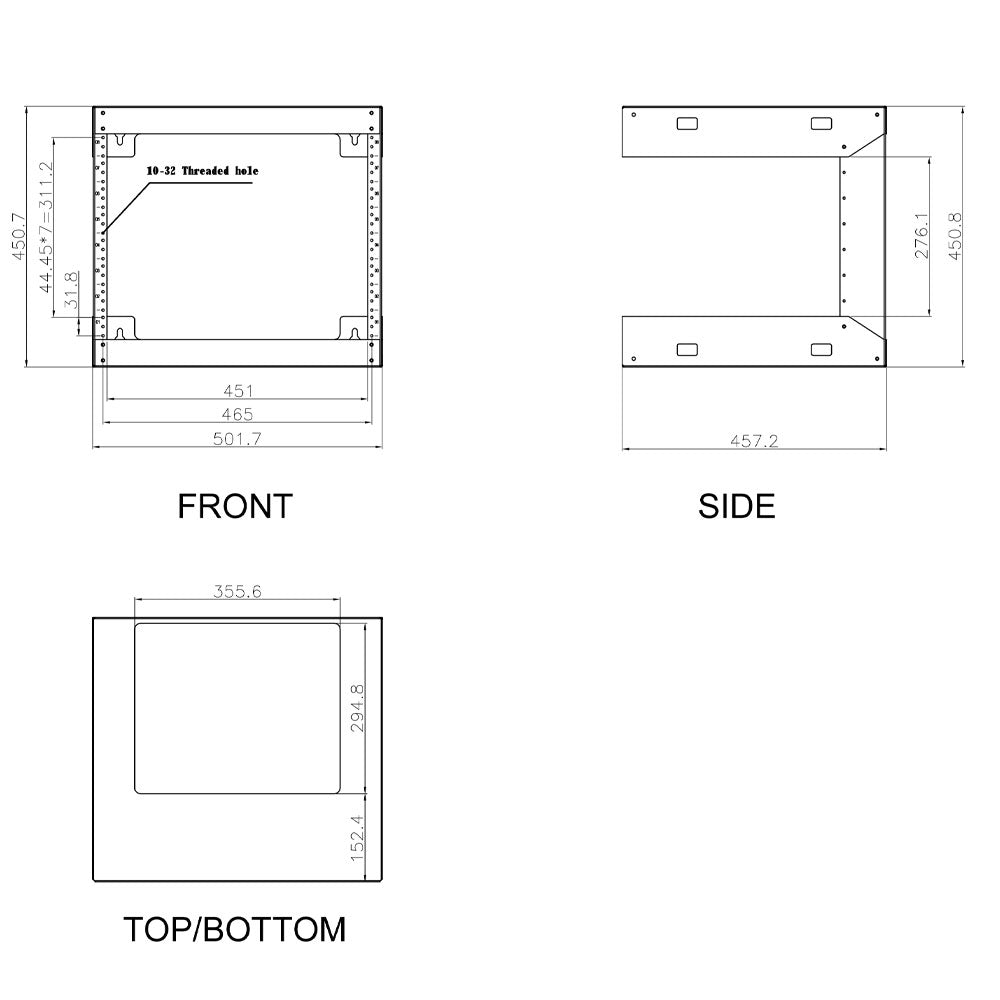

| Overall Dimensions | 17.75H x 19.75W x 18D inch |
| Load Capacity | 150 lbs [68 kg] |
| Wall Mounting Hardware | Not Included |
| Equipment Mounting Hardware | Included |
| ANSI/ | Compliant |
| RS-310-DCompliant | Compliant |
| IEC60297-2Compliant | Compliant |
