Rack Studs Series II - Maroon (Rail Thickness up to 2.2mm)
Click the image to zoom
Rack Studs Series II - Maroon (Rail Thickness up to 2.2mm)
$61.06
In stock
— ships in 1 business day
Description

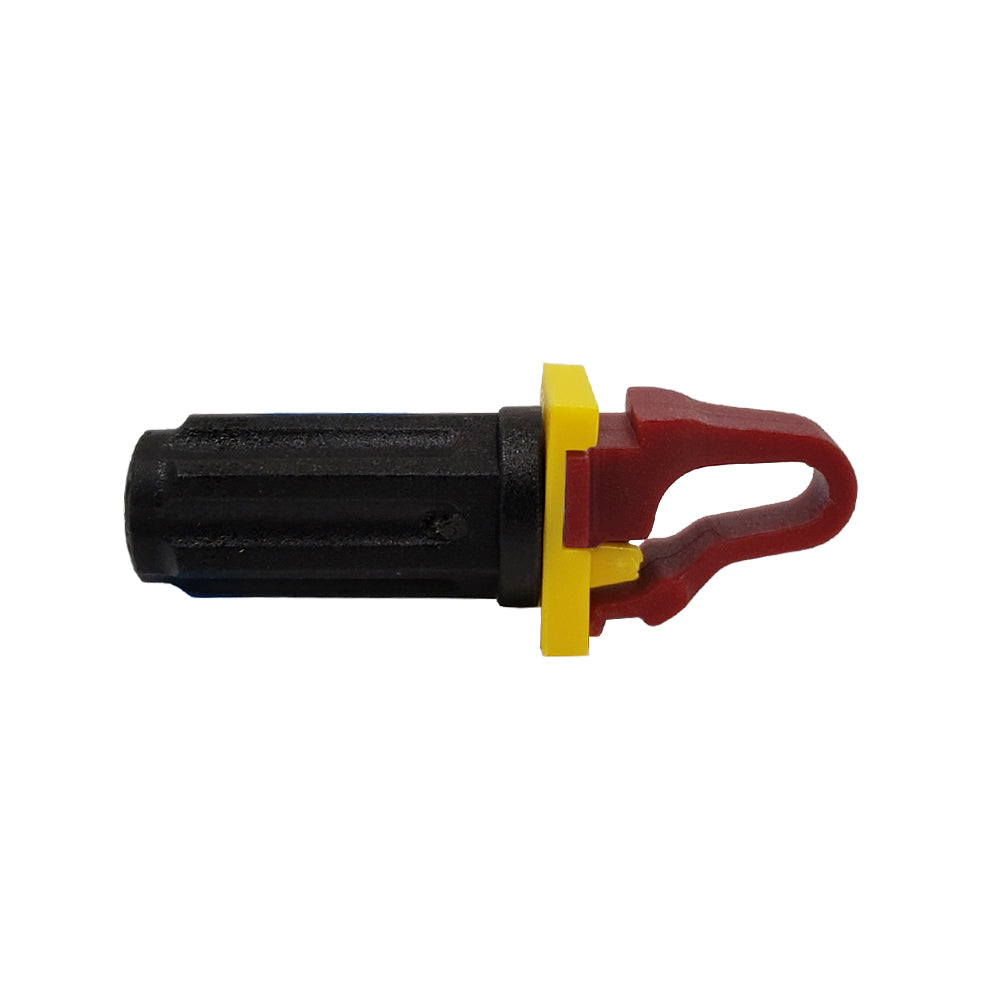

This Rackstud is designed to fit 14AWG square hole server rails. The stud is installed from the front of the rail which simplifies the installation in tight spaces. Once the stud and lock washer is installed, equipment can be easily be hung while you secure it in place with the nut.
Features:
Specifications
Rack Studs Series II - Maroon (Rail Thickness up to 2.2mm)
This Rackstud is designed to fit 14AWG square hole server rails. The stud is installed from the front of the rail which simplifies the installation in tight spaces. Once the stud and lock washer is installed, equipment can be easily be hung while you secure it in place with the nut.

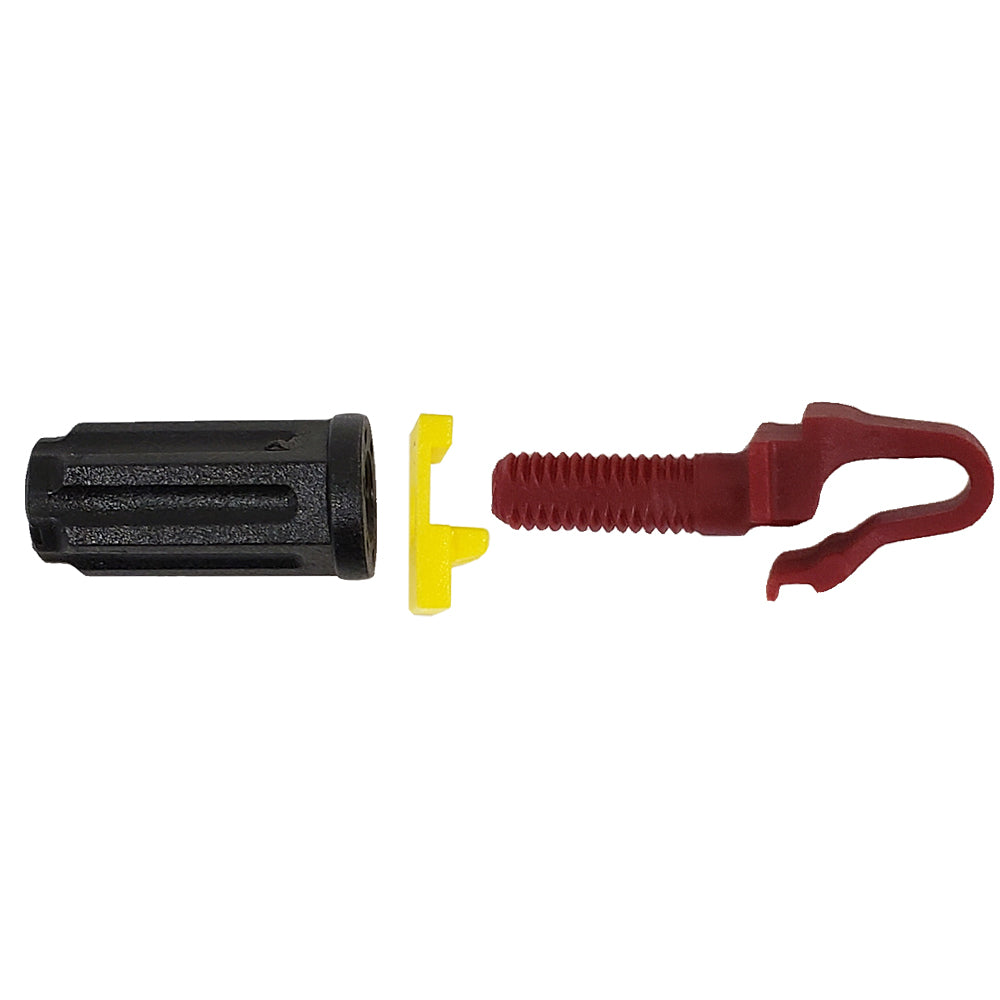

Color: Maroon Stud, Yellow Lock Washer, Black Nut
Stud Material: Grivory
Washer Material: PP
Nut Material: Glass Filled Nylon
Vertical Rail Hole: 9.2 to 9.89mm (0.362" to 0.389")
| Product | Rack Studs Series II - Maroon (Rail Thickness up to 2.2mm) |
| Color | Maroon Stud, Yellow Lock Washer, Black Nut |
| Stud Material | Grivory |
| Washer Material | PP |
| Nut Material | Glass Filled Nylon |
| Vertical Rail Hole | 9.2 to 9.89mm (0.362" to 0.389") |
| Vertical Rail Thickness | ? 2.2mm/0.086" (or 14 Gauge) |
| Maximum Equipment Weight | 20kg (44lbs) |
| Push-In Force | 46kgs/101lbs |
| Pull-Out Force | 92kgs/202lbs |
| Shear Strength | 156kg/343lbs |
| Manufacturer | APCB & R Enclosures Compaq Dynamix Eaton Hallam Hoffman MinkelsModem Pak Over IP NetArc Panduit R4PCN Rack Technologies IQ rack RittalStarTech (DuraRak) |
| SGS Labs | Compliant |
| RoHS | Compliant |
| Reach | Compliant |

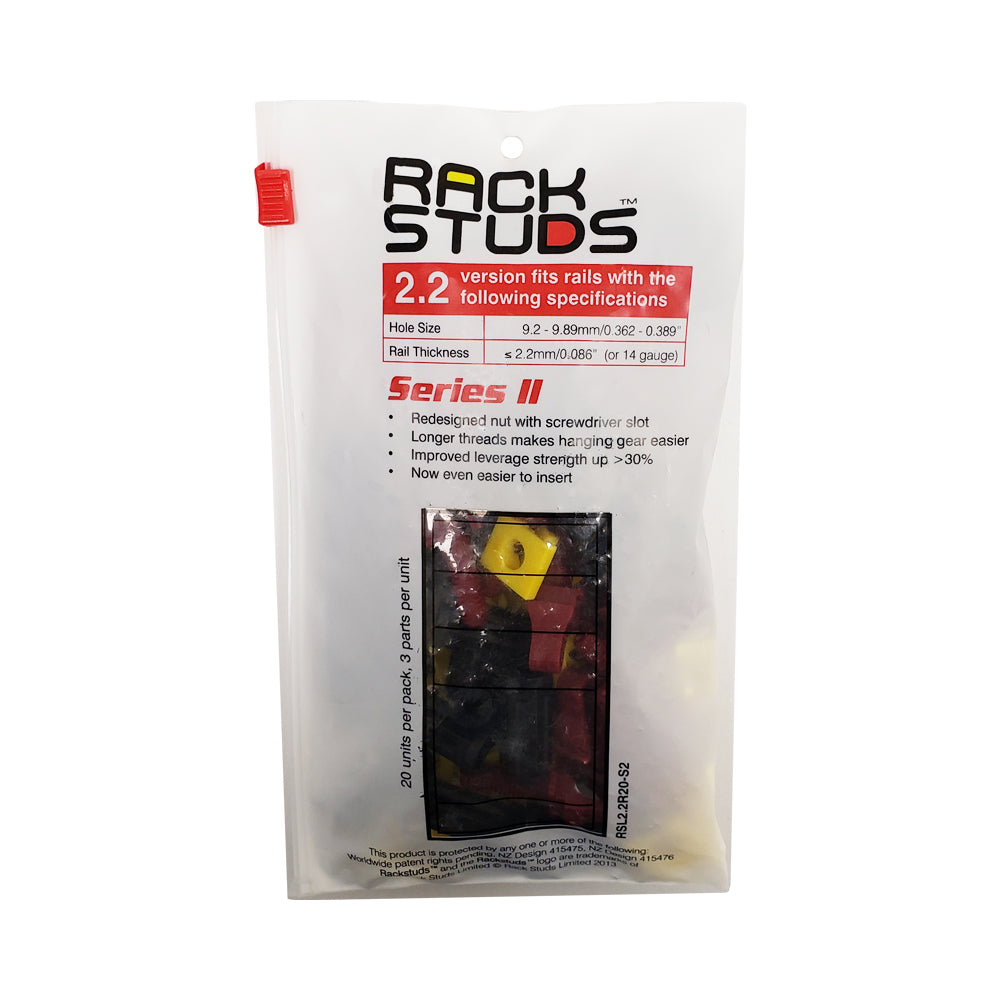

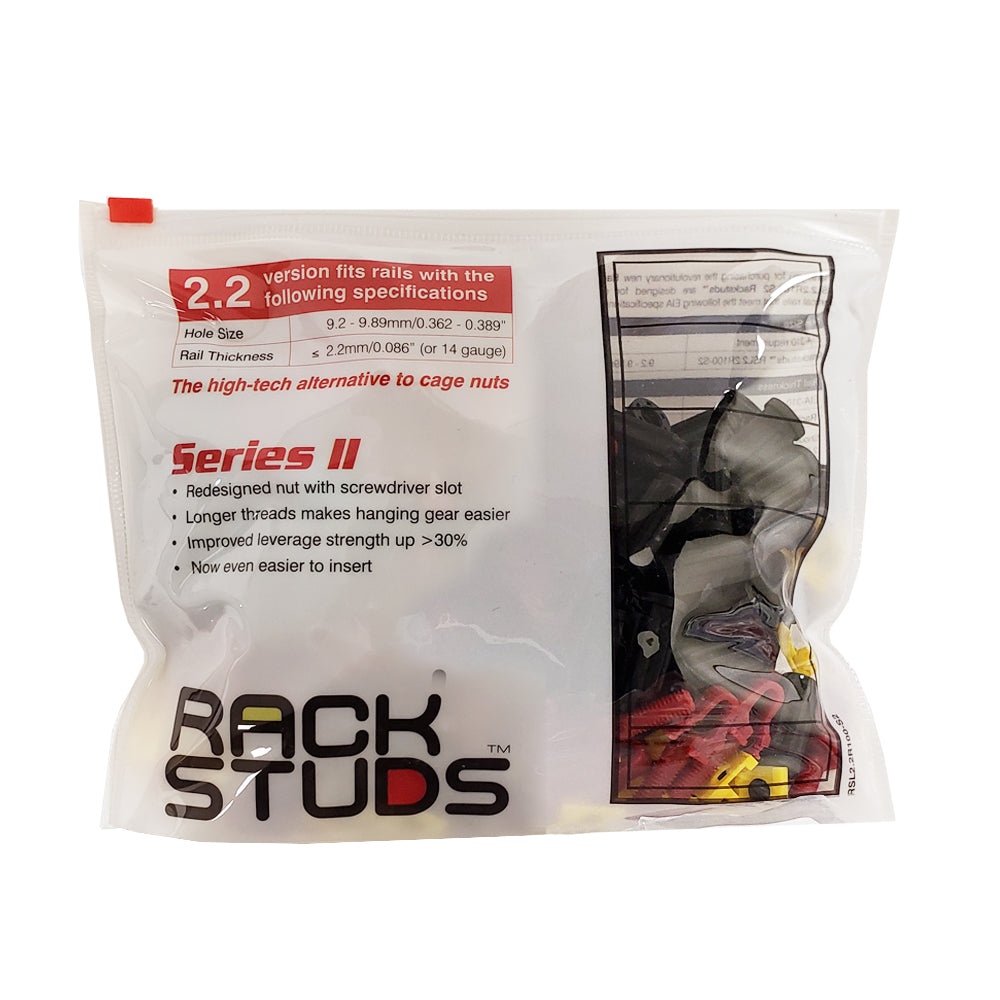

| Package Quantity | 20, 100 |
