Rack Studs Series II - Purple (Rail Thickness 2.7mm to 3.2mm)
$61.06
In stock
— ships in 1 business day
Description
This Rackstud is designed to fit square hole server rails with a thickness of 2.7mm to 3.2mm. The stud is installed from the front of the rail which simplifies the installation in tight spaces. Once the stud and lock washer is installed, equipment can be easily be hung while you secure it in place with the nut.
Features:
Specifications
Rack Studs Series II - Purple (Rail Thickness 2.7mm to 3.2mm)
This Rackstud is designed to fit square hole server rails with a thickness of 2.7mm to 3.2mm. The stud is installed from the front of the rail which simplifies the installation in tight spaces. Once the stud and lock washer is installed, equipment can be easily be hung while you secure it in place with the nut.

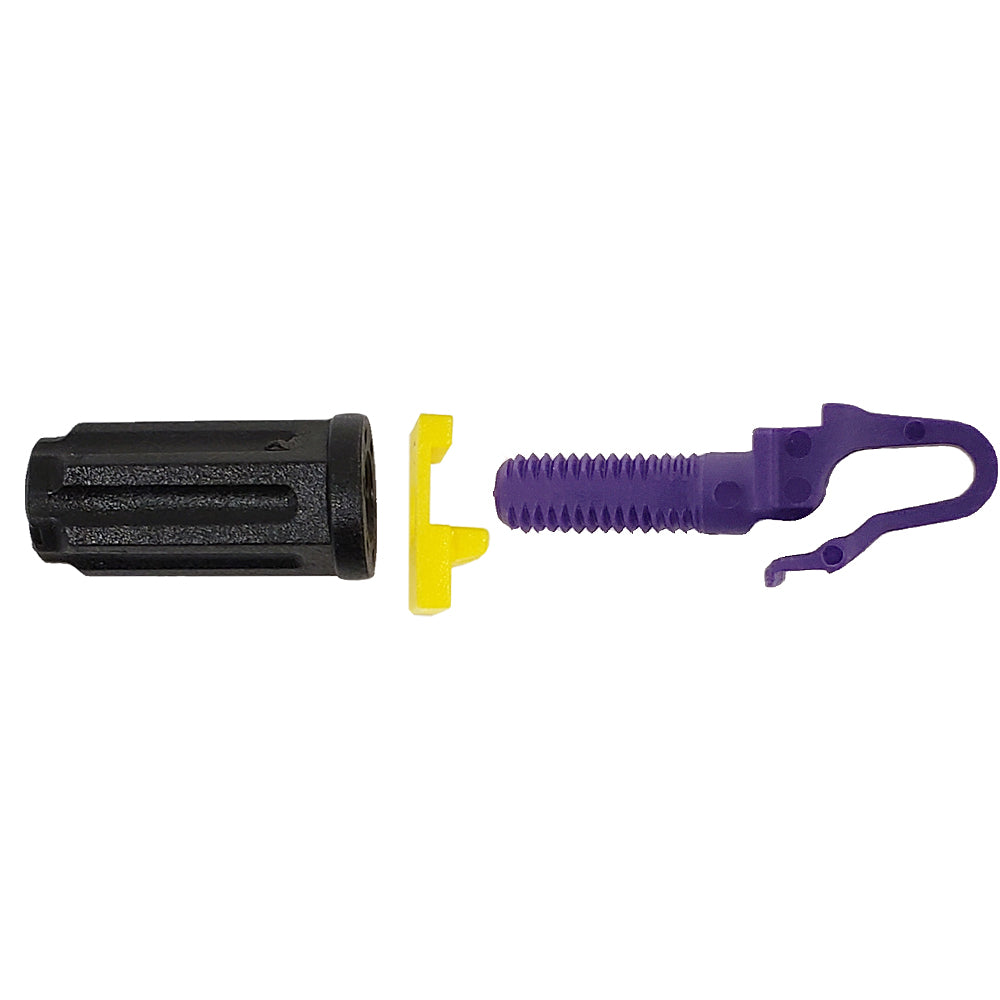

Color: Purple Stud, Yellow Lock Washer, Black Nut
Stud Material: Grivory
Washer Material: PP
Nut Material: Glass Filled Nylon
Vertical Rail Hole: 9.2 to 9.89mm (0.362" to 0.389")
| Product | Rack Studs Series II - Purple (Rail Thickness 2.7mm to 3.2mm) |
| Color | Purple Stud, Yellow Lock Washer, Black Nut |
| Stud Material | Grivory |
| Washer Material | PP |
| Nut Material | Glass Filled Nylon |
| Vertical Rail Hole | 9.2 to 9.89mm (0.362" to 0.389") |
| Vertical Rail Thickness | 2.7mm to 3.2mm (0.106" to 0.126") |
| Maximum Equipment Weight | 20kg (44lbs) |
| Push-In Force | 46kgs/101lbs |
| Pull-Out Force | 92kgs/202lbs |
| Shear Strength | 156kg/343lbs |
| SGS Labs | Compliant |
| RoHS | Compliant |
| Reach | Compliant |

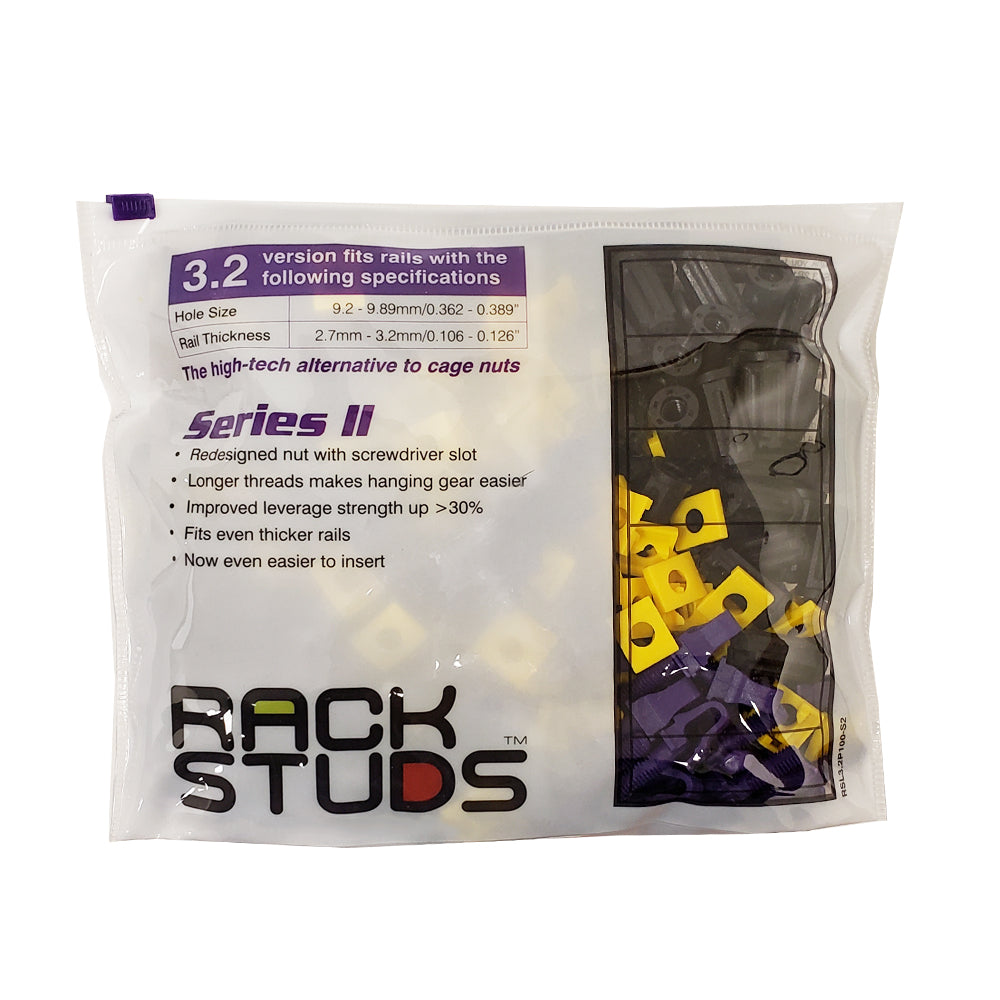

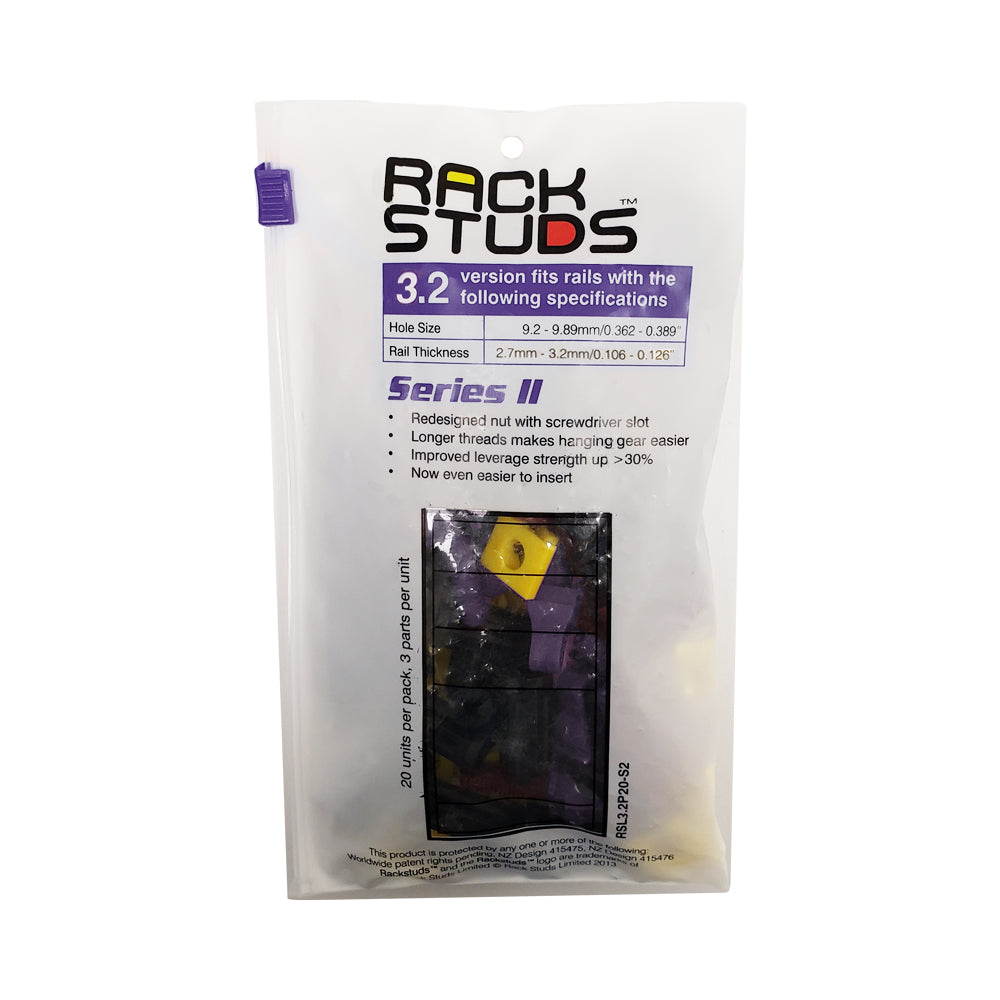

| Package Quantity | 20, 100 |
| Product Weight | 20 pack - 0.16 lbs [0.07 kg]100 pack - 0.78 lbs [0.36 kg] |
