12-Fiber Singlemode LGX Style Cassette MPO Male to 6x LC/APC
Click the image to zoom

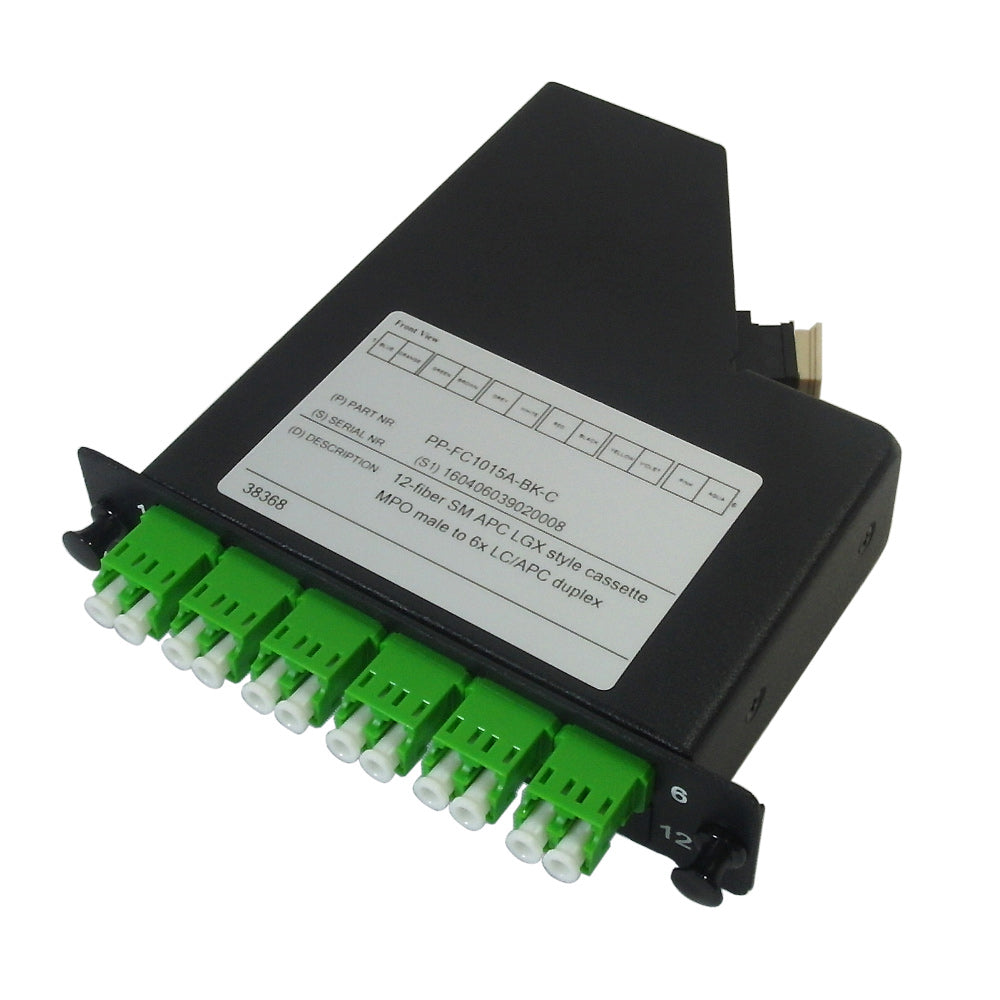

12-Fiber Singlemode LGX Style Cassette MPO Male to 6x LC/APC Duplex
$153.25
In stock
— ships in 1 business day
Description
This singlemode fiber optic MPO to LC cassette consists of a MPO/MTP male connector on one end and 6 duplex LC female connectors on the other. It is used in high bandwidth data center applications for breaking out MPO/MTP cables to LC female ports.
Specifications
12-Fiber Singlemode LGX Style Cassette MPO Male to 6x LC/APC Duplex
This singlemode fiber optic MPO to LC cassette consists of a MPO/MTP male connector on one end and 6 duplex LC female connectors on the other. It is used in high bandwidth data center applications for breaking out MPO/MTP cables to LC female ports.
Cassette Style/Size: LGX Panel
Fiber Count: 12 Fibers
Fiber Type: Singlemode 9/125 Micron
Polarity: Method A / Method C
Connector A: 1 x12-Position MPO/APC Male (with guide pins) Elite Connectors
| Product | 12-Fiber Singlemode LGX Style Cassette MPO Male to 6x LC/APC Duplex |
| Cassette Style/Size | LGX Panel |
| Fiber Count | 12 Fibers |
| Fiber Type | Singlemode 9/125 Micron |
| Polarity | Method A / Method C |
| Connector A | 1 x12-Position MPO/APC Male (with guide pins) Elite Connectors |
| Connector B | 6 x LC Duplex Female |
| MPO Insertion Loss | ≤0.35 dB |
| MPO Return Loss | ≥20dB |
| LC Insertion Loss | ≤0.3dB |
| LC Return Loss | ≥20dB |
| Testing | 100% IL, RL and Interferometer Tested |
| RoHS | Compliant |
| Package Quantity | 1 |
| Product Weight | 1.06 lbs [0.48kg] |
| Warranty | Limited Lifetime |
