24-Fiber Singlemode LGX Style Cassette 2x MPO Male to 12x LC
Click the image to zoom

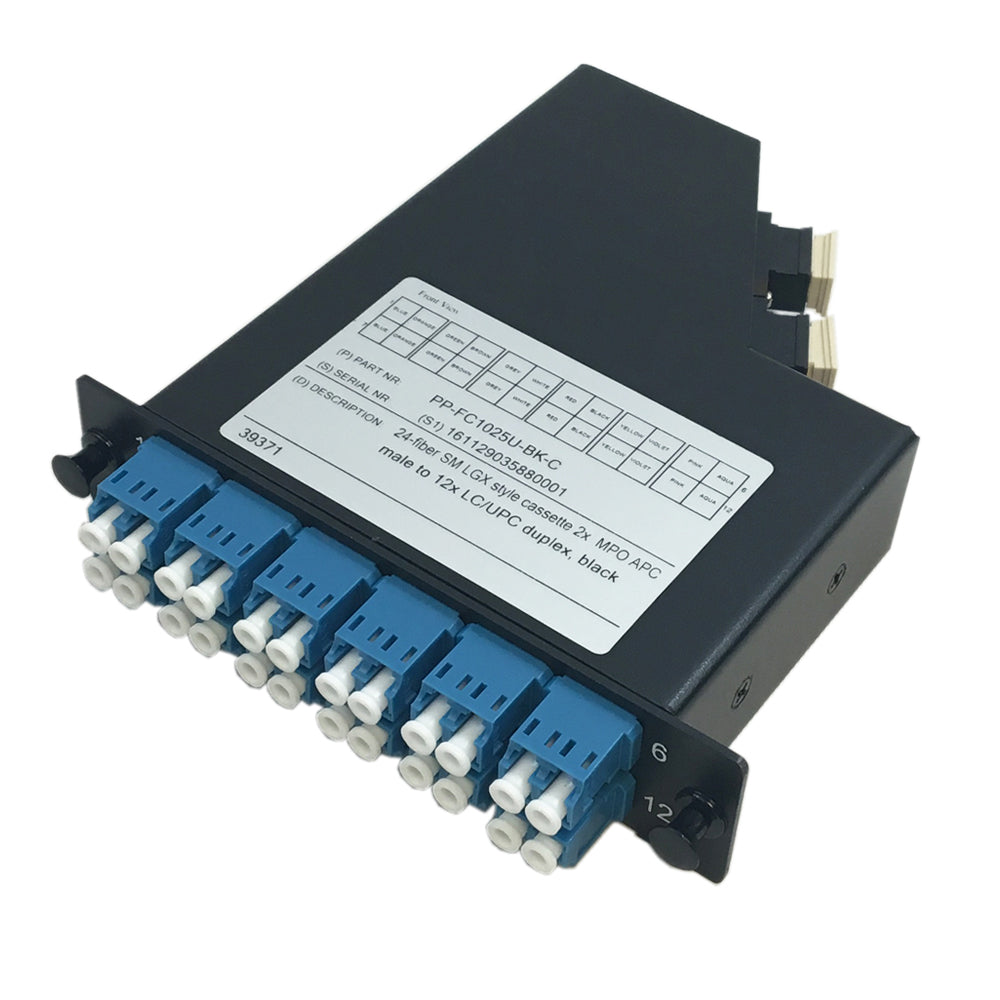

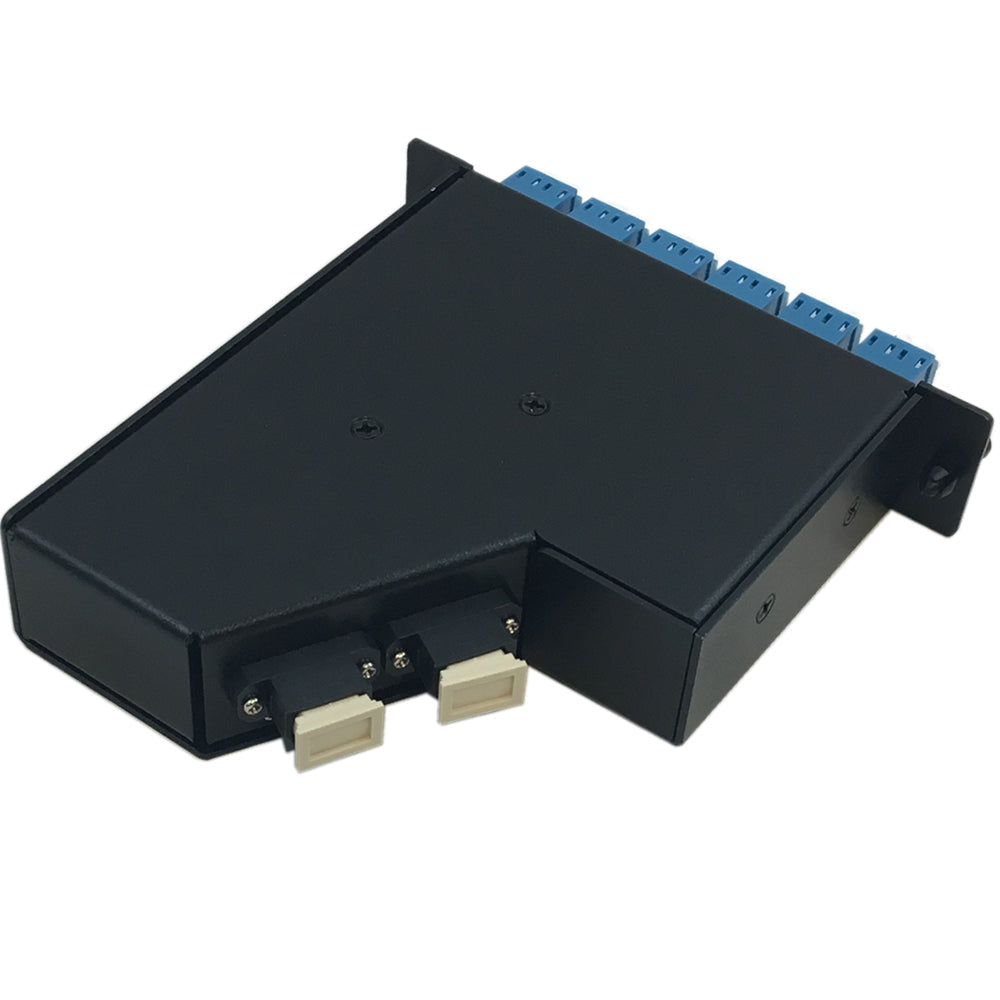

24-Fiber Singlemode LGX Style Cassette 2x MPO Male to 12x LC/UPC Duplex
$272.06
In stock
— ships in 1 business day
Description
This singlemode fiber optic MPO to LC cassette consists of two MPO/MTP male connectors on one end and 12 duplex LC female connectors on the other. It is used in high bandwidth data center applications for breaking out MPO/MTP cables to LC female ports.
Specifications
24-Fiber Singlemode LGX Style Cassette 2x MPO Male to 12x LC/UPC Duplex
This singlemode fiber optic MPO to LC cassette consists of two MPO/MTP male connectors on one end and 12 duplex LC female connectors on the other. It is used in high bandwidth data center applications for breaking out MPO/MTP cables to LC female ports.
Cassette Style/Size: LGX Panel
Fiber Count: 24 Fibers
Fiber Type: Singlemode
Polarity: Method A / Method C
Connector A: 2 x12-Position MPO Male (with guide pins) Elite Connectors
| Product | 24-Fiber Singlemode LGX Style Cassette 2x MPO Male to 12x LC/UPC Duplex |
| Cassette Style/Size | LGX Panel |
| Fiber Count | 24 Fibers |
| Fiber Type | Singlemode |
| Polarity | Method A / Method C |
| Connector A | 2 x12-Position MPO Male (with guide pins) Elite Connectors |
| Connector B | 12 x LC Duplex Female |
| MPO Insertion Loss | ≤0.35 dB |
| MPO Return Loss | ≥20dB |
| LC Insertion Loss | ≤0.3dB |
| LC Return Loss | ≥20dB |
| Testing | 100% IL, RL and Interferometer Tested |
| RoHS | Compliant |
| Package Quantity | 1 |
| Product Weight | 1.13 lbs [0.51kg] |
| Warranty | Limited Lifetime |
