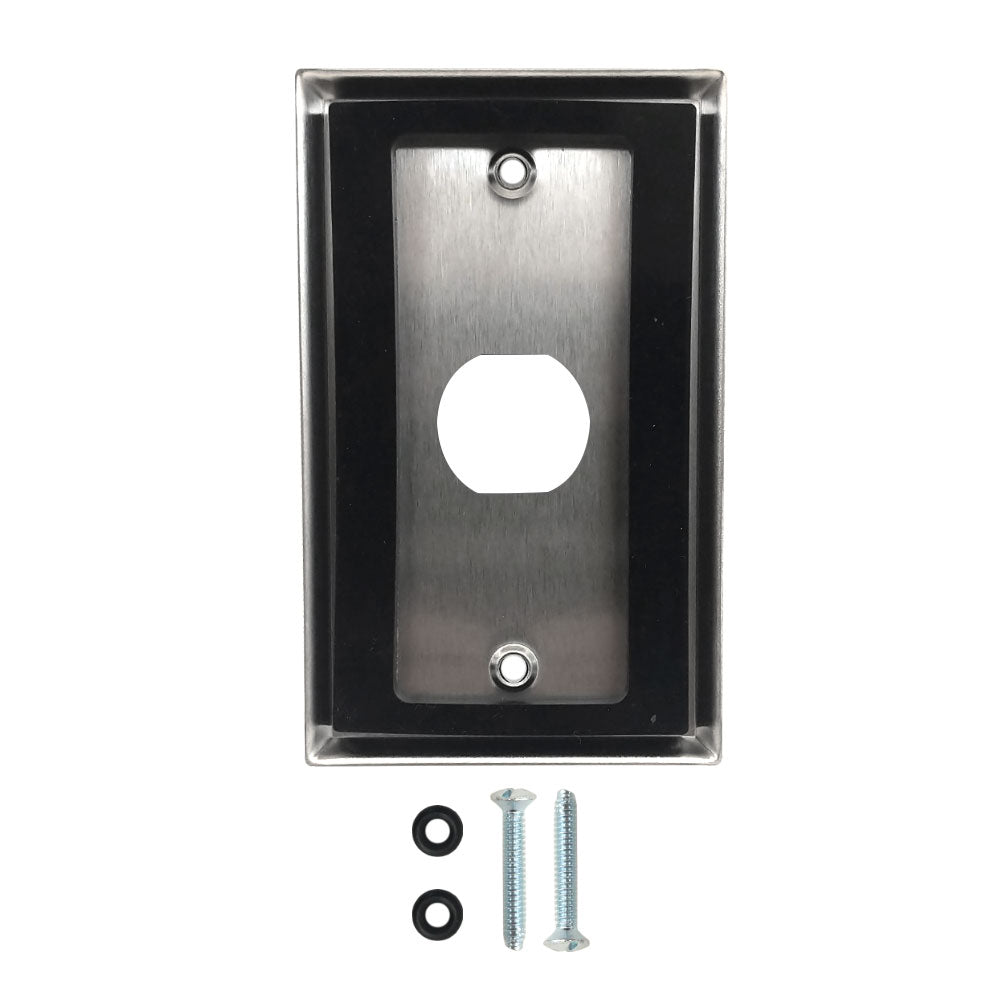

Single Gang - 1x Ethernet Bulkhead Hole - IP44 Rated - Stainless Steel Wall Plate
$10.94
In stock
— ships in 1 business day
Description
This single gang wall plate has one Ethernet
bulkhead cut-out. It is a standard North American wall plate which accepts
bulkhead jacks and couplers. It is IP44 rated to protect network parts from
material greater than 1mm in diameter and water damage.
Specifications
Single Gang - 1x Ethernet Bulkhead Hole - IP44 Rated - Stainless Steel Wall Plate
This single gang wall plate has one Ethernet bulkhead cut-out. It is a standard North American wall plate which accepts bulkhead jacks and couplers. It is IP44 rated to protect network parts from material greater than 1mm in diameter and water damage.
Color: Stainless Steel
Plate Size: Single Gang
Material: Stainless Steel
Back Gasket: Rubber
Dimensions: 115x70.6x6.65 mm (4.52x2.77x0.26 inch)
| Product | Single Gang - 1x Ethernet Bulkhead Hole - IP44 Rated - Stainless Steel Wall Plate |
| Color | Stainless Steel |
| Plate Size | Single Gang |
| Material | Stainless Steel |
| Back Gasket | Rubber |
| Dimensions | 115x70.6x6.65 mm (4.52x2.77x0.26 inch) |
| Operating Temperature | -10°C to 60°C |
| Storage Temperature | -40°C to 68°C |
| Humidity | 10% ~ 90% RH |
| Ethernet Bulkhead Hole | 1 |
| CN-C5E-FFS-IP68 | Cat5e RJ45 Female to RJ45 Female Shielded Bulkhead Coupler - Waterproof IP68 Rated - Black |
| CN-C6-FFS-IP68 | Cat6 RJ45 Female to RJ45 Female Shielded Bulkhead Coupler - Waterproof IP68 Rated - Black |
| CN-C6A-FFS-IP68 | Cat6A RJ45 Female to RJ45 Female Shielded Bulkhead Coupler -Waterproof IP68 Rated - Black |
| JK-C5P-SBK-IP68 | Cat5e RJ45 Female to 110 Punch Down Shielded Bulkhead Coupler - Waterproof IP68 Rated - Black |
| JK-C6P-SBK-IP68 | Cat6 RJ45 Female to 110 Punch Down Shielded Bulkhead Coupler - Waterproof IP68 Rated - Black |
| Rating | IP44 |
