AOC 2.1 - Active Optical Cable - HDMI Armored 8K@60Hz - UHD - Silicon Jacket Cable
$85.81
In stock
— ships in 1 business day
Description

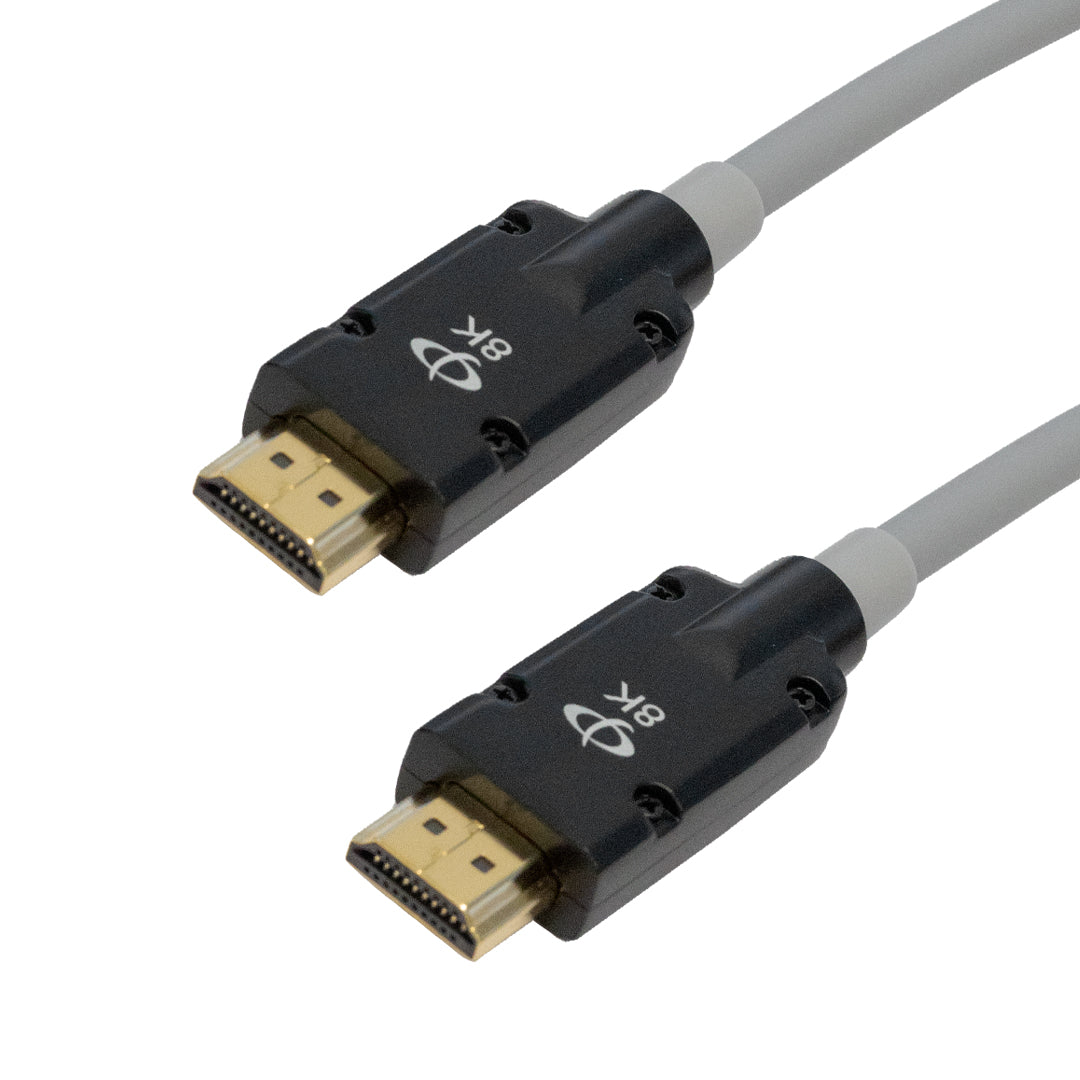

This silicon armored active optical (AOC) Ultra High-Speed HDMI® cable consists of a HDMI male connector on both ends. The cable has a built in signal booster chipset which allows it to maintain a HDMI 2.1 signal over a thin cable at longer lengths with no signal loss. It is typically used to connect a HDMI source such as Blu-Ray players and PC's to a HDTV or monitor and supports full 8K Ultra HD resolution and High Dynamic Range (HDR). The AOC cable also works with splitters, switches and other video sharing devices.
NOTE: This active optical HDMI® cable is directional. Each end of the cable is marking "Source" and "Display" to indicate the direction of the signal flow. Always test the cable to be sure that the signal flow is correct and for device compatibility before permanently installing.
Digital Signage - LED signboards in streets and in stadiums - Medical Imaging Equipment - Airplane On-board Video System - Home Theater - Blue-ray, 3D video, Projector, Set-up box, DVR, Game Consoles and Computer - TV Broadcast Station - Conference Room Video Equipment - Security systems
Specifications
AOC 2.1 - Active Optical Cable - HDMI Armored 8K@60Hz - UHD - Silicon Jacket Cable
This silicon armored active optical (AOC) Ultra High-Speed HDMI® cable consists of a HDMI male connector on both ends. The cable has a built in signal booster chipset which allows it to maintain a HDMI 2.1 signal over a thin cable at longer lengths with no signal loss.
Color: Grey
Connector Plating: Gold
Jacket Outer Materia: TPU(Silicone)

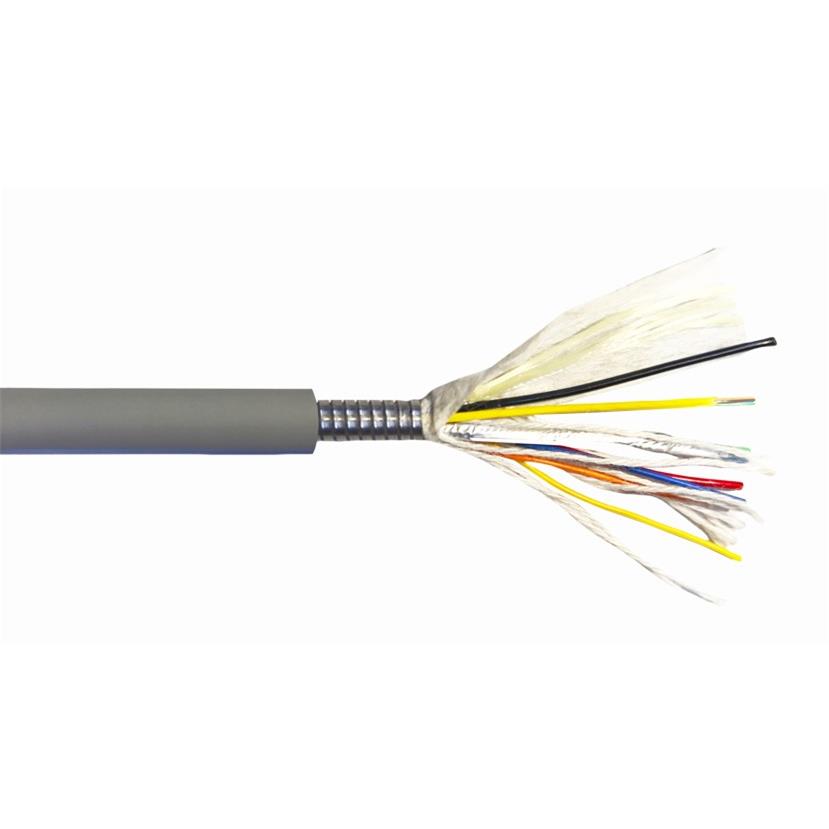

Cable Specs: Armored Hybrid type with OM3 fiber and copper wire
Cable Diameter: 6.2mm±0.2
| Product | AOC 2.1 - Active Optical Cable - HDMI Armored 8K@60Hz - UHD - Silicon Jacket Cable |
| Color | Grey |
| Connector Plating | Gold |
| Jacket Outer Materia | TPU(Silicone) |
| Cable Specs | Armored Hybrid type with OM3 fiber and copper wire |
| Cable Diameter | 6.2mm±0.2 |
| Metal Tube Material | 200CU Stainless Steel Diameter: 4.4±0.1 |
| Strengthening Unit | Dupont Kevlar (1670D*4) |
| Differential Input | 100 ohm |
| Power Consumption | 250mW (Max) |
| Tensile | Long Term: 400NShort Term: 800N |
| Crush Resistance | Long Term: 3000 N/100mmShort Term: 5000 N/100mm |
| Bending Radius | Dynamic: 20mmStatic: 56mm |
| Temperature | -40°C ~ +80°C |
| Bending Test | 10000 cycle |
| Connector A | HDMI A (19 pin) Male |
