BNC Passive Video Extender - RJ45 (1000ft)
Click the image to zoom

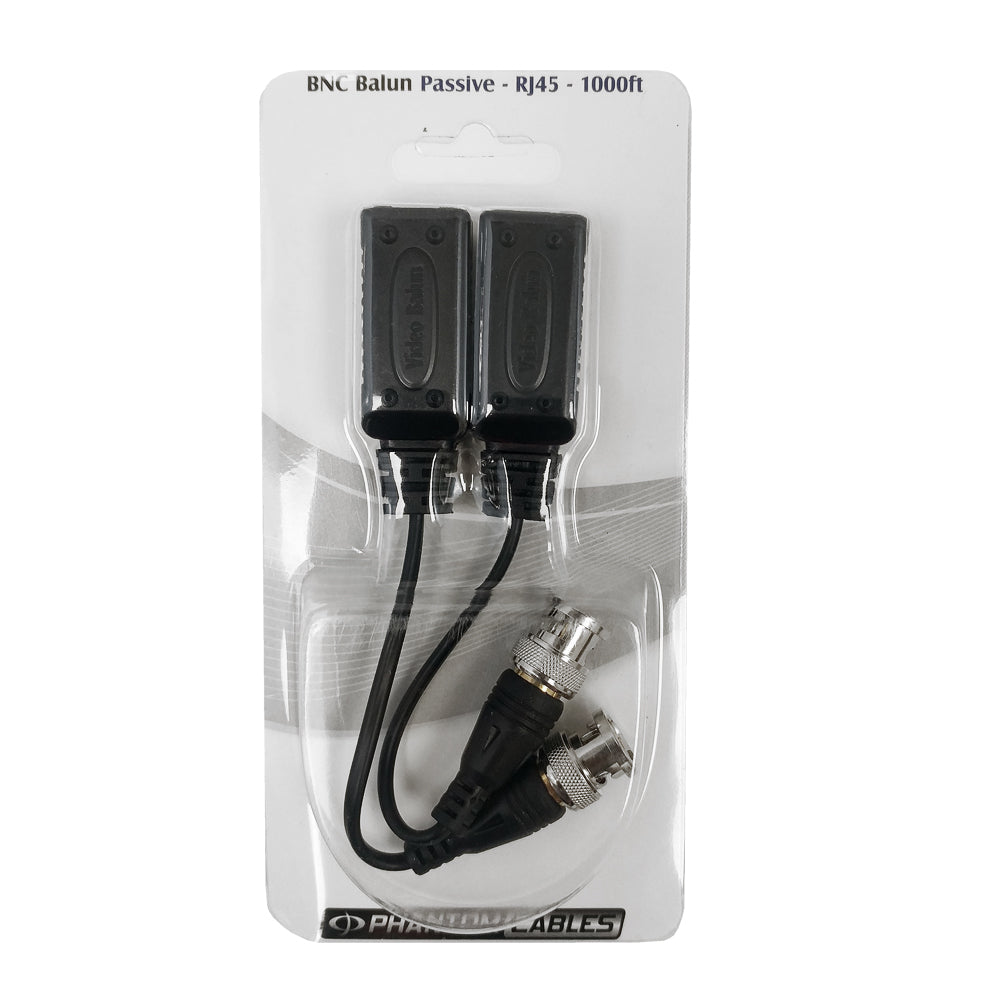

BNC Passive Video Extender - RJ45 (1000ft)
$7.38
In stock
— ships in 1 business day
Description
This BNC video extender over CAT5e/6 cable consists of a transmitting and receiving unit. Each unit has BNC male and RJ45 female connectors in it. It is used to extend a BNC composite signal over CAT5e/CAT6 cabling.
Specifications
BNC Passive Video Extender - RJ45 (1000ft)
This BNC video extender over CAT5e/6 cable consists of a transmitting and receiving unit. Each unit has BNC male and RJ45 female connectors in it. It is used to extend a BNC composite signal over CAT5e/CAT6 cabling.
Color: Black
Housing Material: ABS+PC
Operating Temperature: -10℃ - 70℃
Storage Temperature: -30℃ - 70℃
Coaxial Video Connector: 2 - BNC Male
| Product | BNC Passive Video Extender - RJ45 (1000ft) |
| Color | Black |
| Housing Material | ABS+PC |
| Operating Temperature | -10℃ - 70℃ |
| Storage Temperature | -30℃ - 70℃ |
| Coaxial Video Connector | 2 - BNC Male |
| RJ45 Connector | 2 - CAT5e/6 Female |
| Impedance | 75 Ohms - BNC 100 Ohms - UTP |
| Transmission Signal | 1 Channel |
| Compatible Format | HDCVI/HDTVI/AHD |
| Resolution | 720p/1080p |
| Transmission Distance HDCVI | 720p - 450m / 1080p - 250m |
| Transmission Distance HDTVI | 720p/1080p - 250m |
| Transmission Distance AHD | 720p - 350m / 1080p - 250m |
| Power Required | No |
| CE | Yes |
