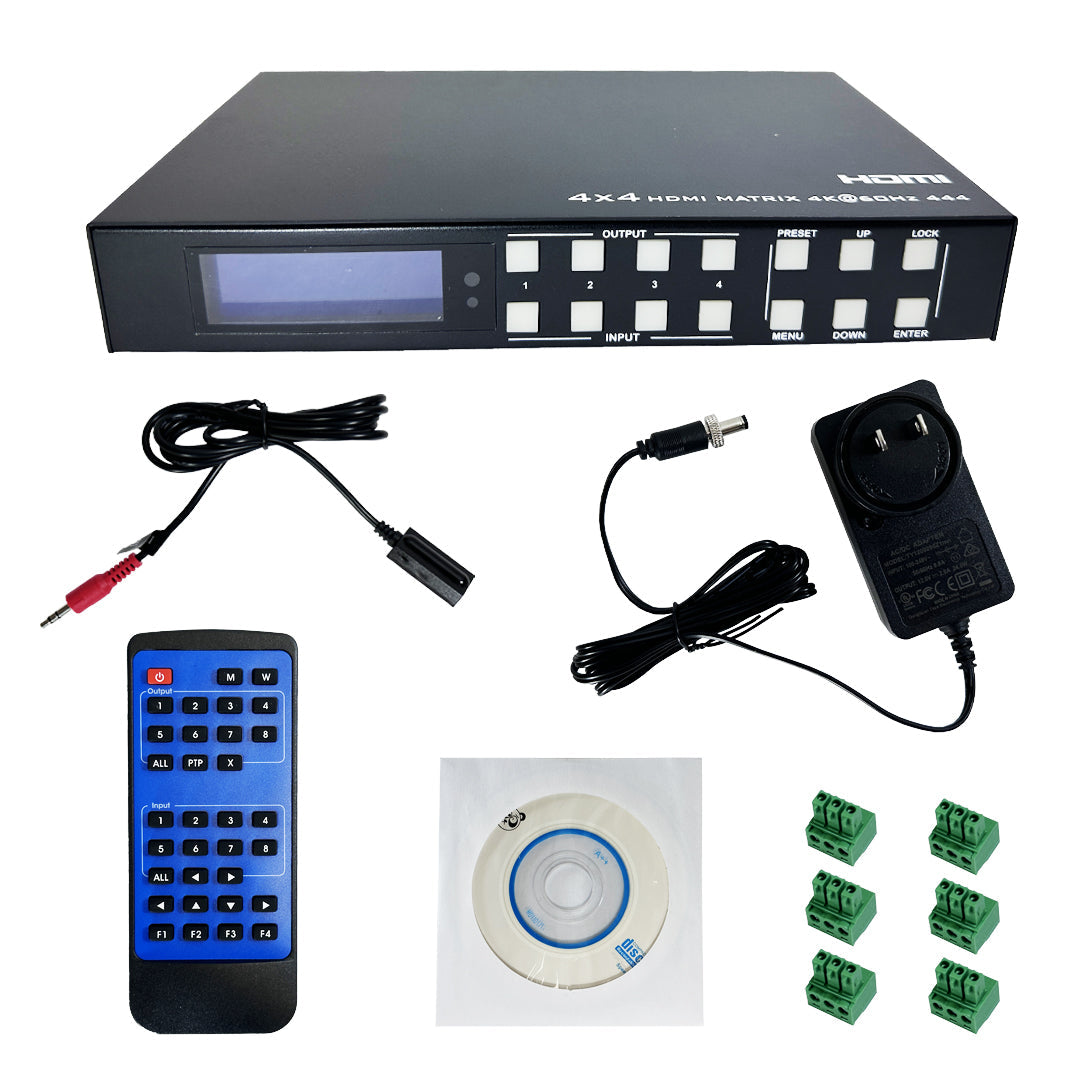

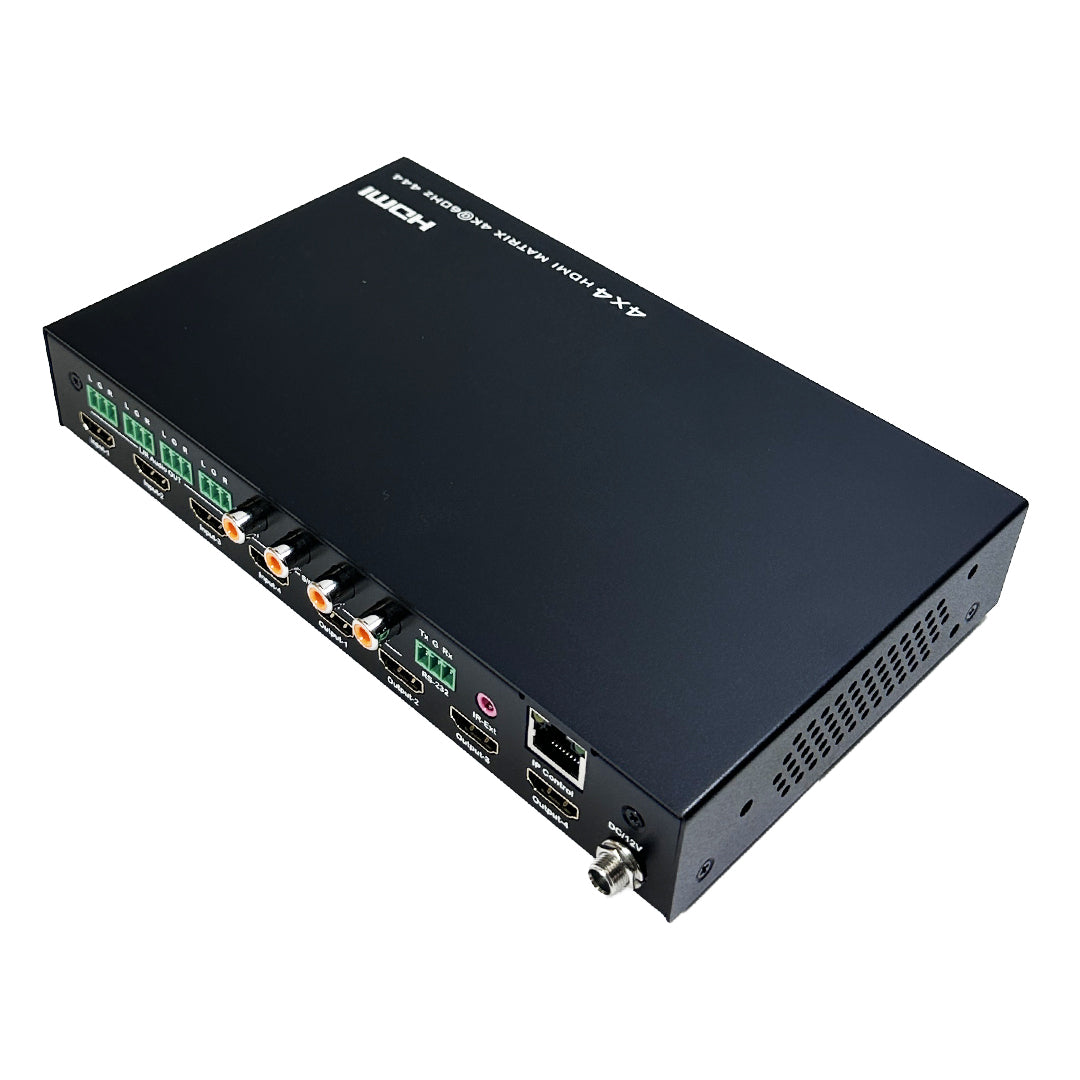

4x4 HDMI Matrix 4K@60Hz - YUV 4:4:4 - 18Gbps - HDCP 2.2in/2.2out - IR control
$391.56
In stock
— ships in 1 business day
Description
This 4x4 HDMI matrix switch enables you to connect up to four HDMI sources to up to four HDMI displays. Any one of the four inputs can be displayed on any one of the four outputs. It is typically used to connect HDMI sources such as DVD players, Blu-ray players, satellite receivers or gaming systems to HDMI displays such as HDTVs, HD projectors or HDMI monitors.
Key Features
Specifications
4x4 HDMI Matrix 4K@60Hz - YUV 4:4:4 - 18Gbps - HDCP 2.2in/2.2out - IR control
This 4x4 HDMI matrix switch enables you to connect up to four HDMI sources to up to four HDMI displays. Any one of the four inputs can be displayed on any one of the four outputs. It is typically used to connect HDMI sources such as DVD players, Blu-ray players, satellite receivers or gaming systems to HDMI displays such as HDTVs, HD projectors or HDMI monitors.
Color: Black
Housing: Metal Enclosure
Operating Temperature: 0℃ ~ 40℃
Operating Humidity: 5 to 90%RH (No Condensation)
Power Consumption: 14W(Max)
| Product | 4x4 HDMI Matrix 4K@60Hz - YUV 4:4:4 - 18Gbps - HDCP 2.2in/2.2out - IR control |
| Color | Black |
| Housing | Metal Enclosure |
| Operating Temperature | 0℃ ~ 40℃ |
| Operating Humidity | 5 to 90%RH (No Condensation) |
| Power Consumption | 14W(Max) |
| Input Voltage | 100 – 240 VAC |

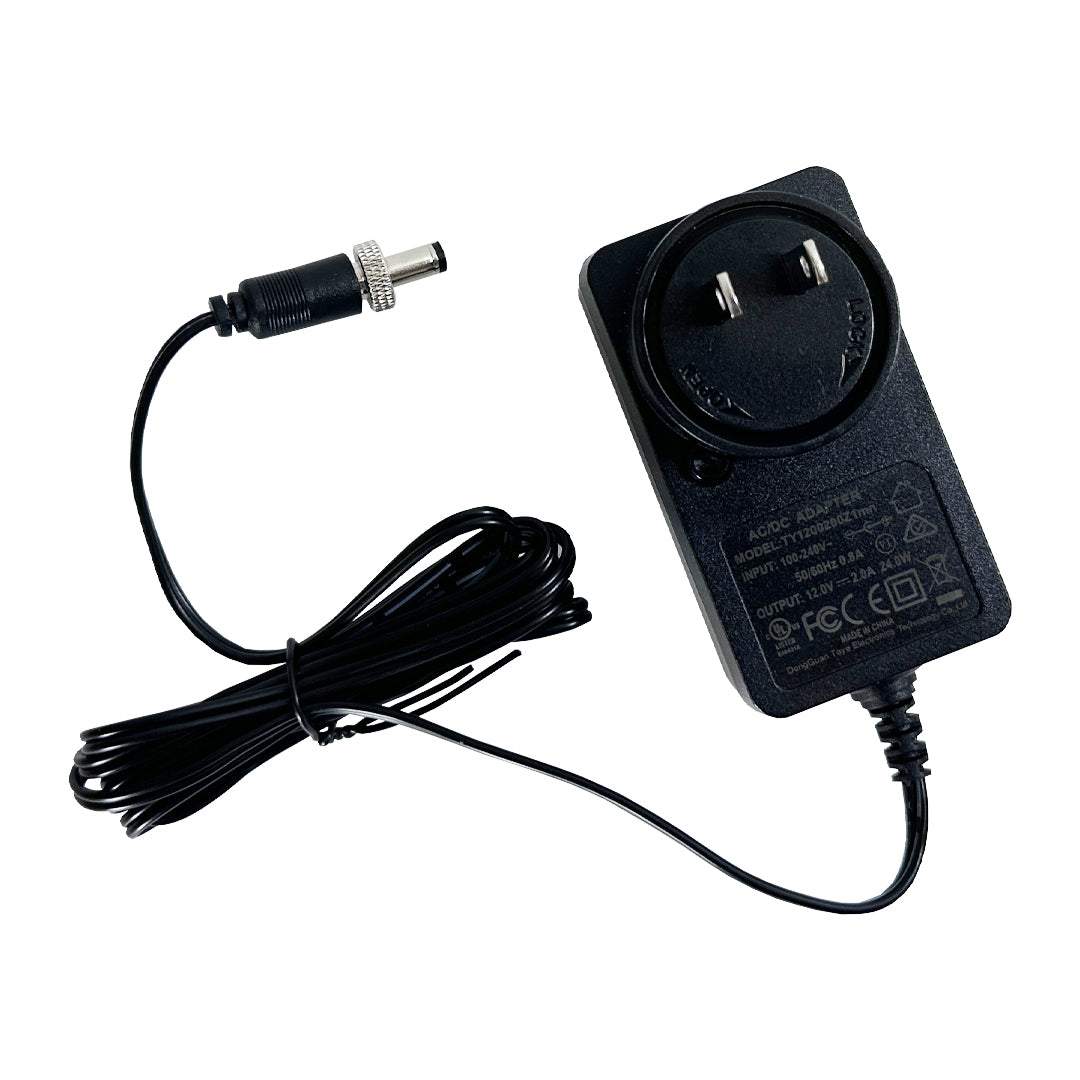

| Power Supply (Transmitter) | 12 Volt DC 2Amps |

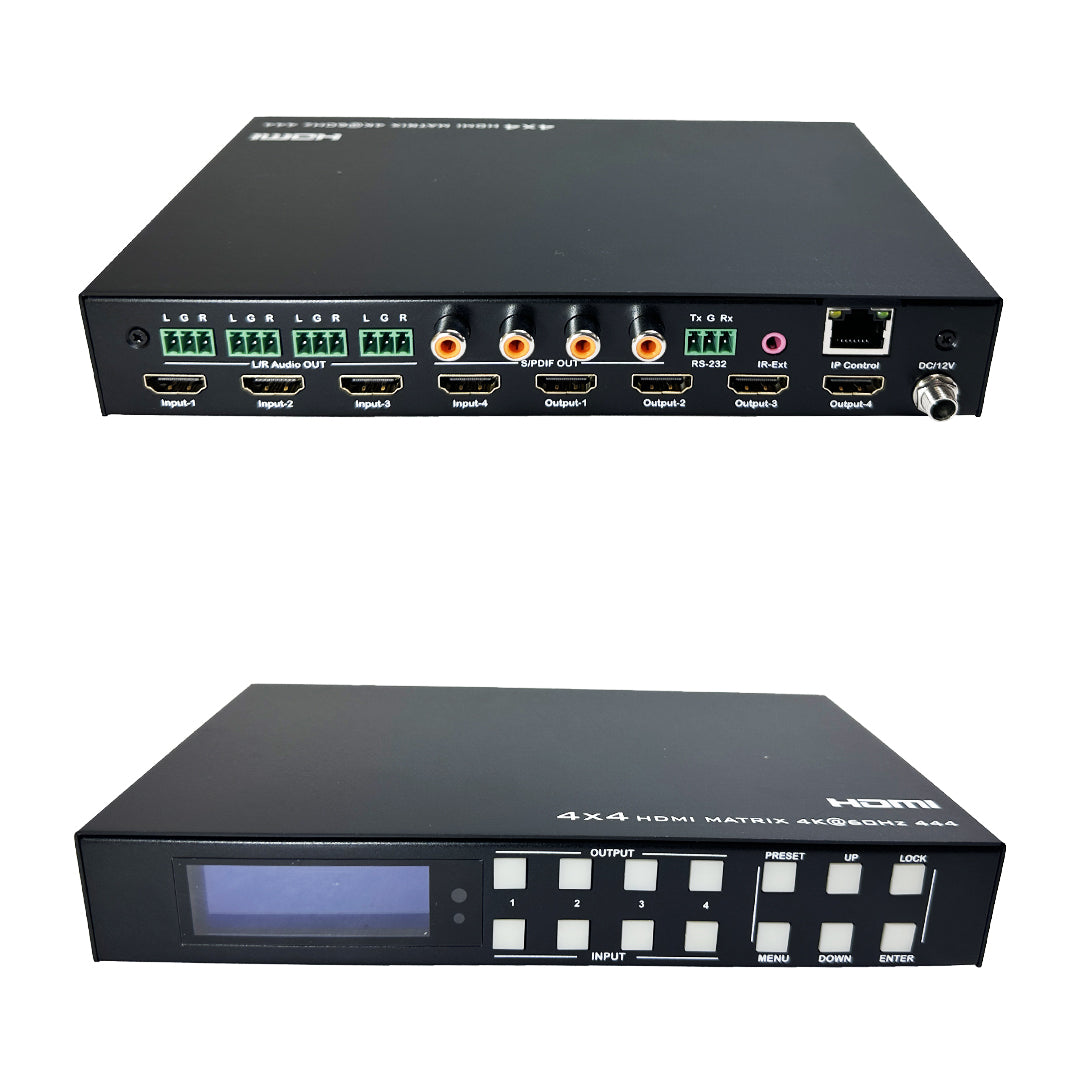

| Input | 4 x HDMI Female |
| Output | 4 x HDMI Female, 4 x SPDIF |
| Video | 480i/ 480p/ 576p / 576i / 720p/ 1080i/ 1080p@60Hz / 4K@60Hz |
| Audio | PPCM2.0, Dolby True HD and DTS-HD master audio, DTS:X |
| HDMI Version | HDMI 2.0 (4K@60Hz YUV4:4:4) |
| Bandwidth | 18Gbps |
| HDCP Compliant | Compliant, HDCP 2.2/1.4 input, HDCP 2.2/1.4 output |

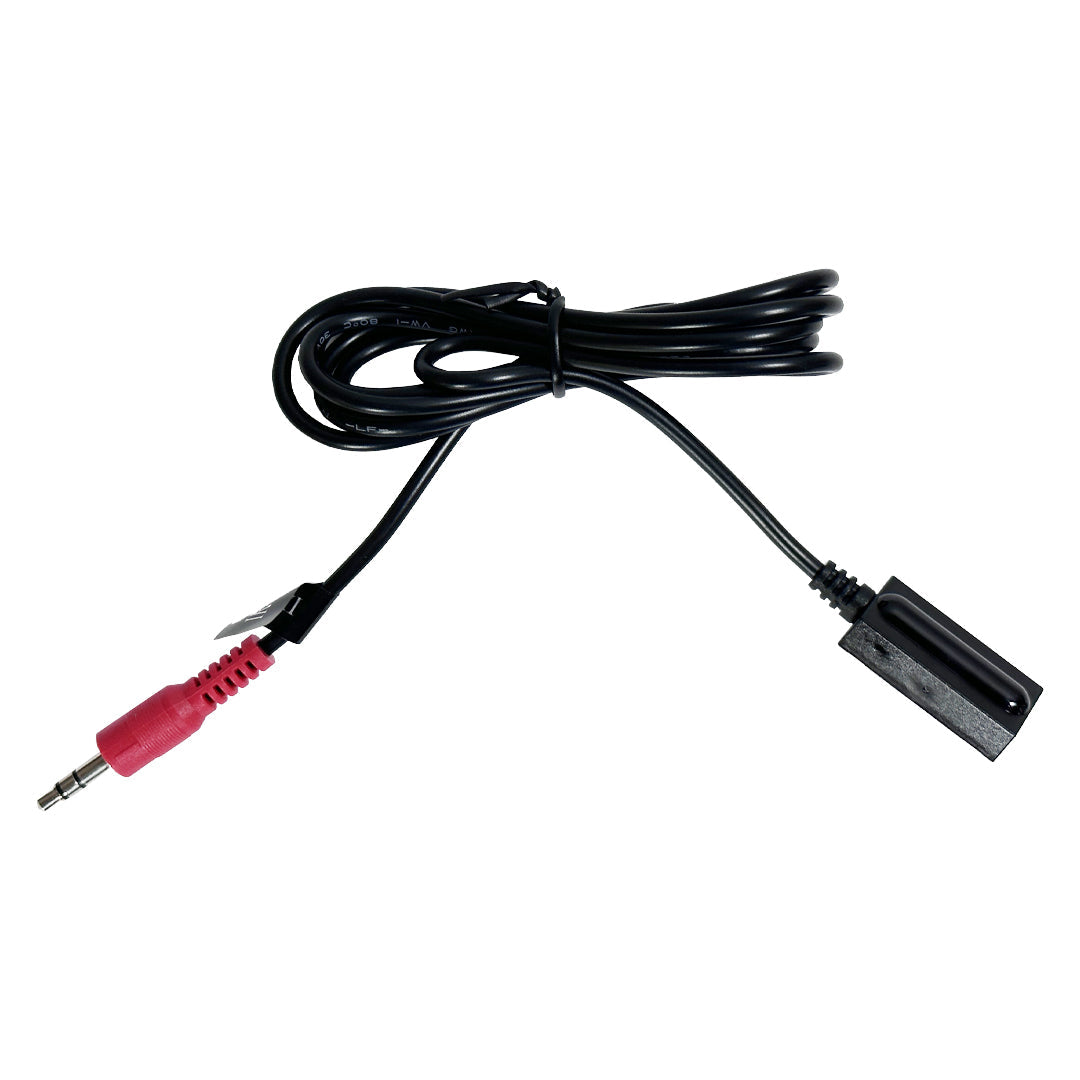

| IR Ext port | 1 x 3.5mm stereo jack |
