4x4 HDBaseT HDMI Matrix CAT5E/6 35m (4K*2K @60Hz 4:4:4) with
Click the image to zoom
4x4 HDBaseT HDMI Matrix CAT5E/6 35m (4K*2K @60Hz 4:4:4) with 4 Receivers
$2,722.19
In stock
— ships in 1 business day
Description

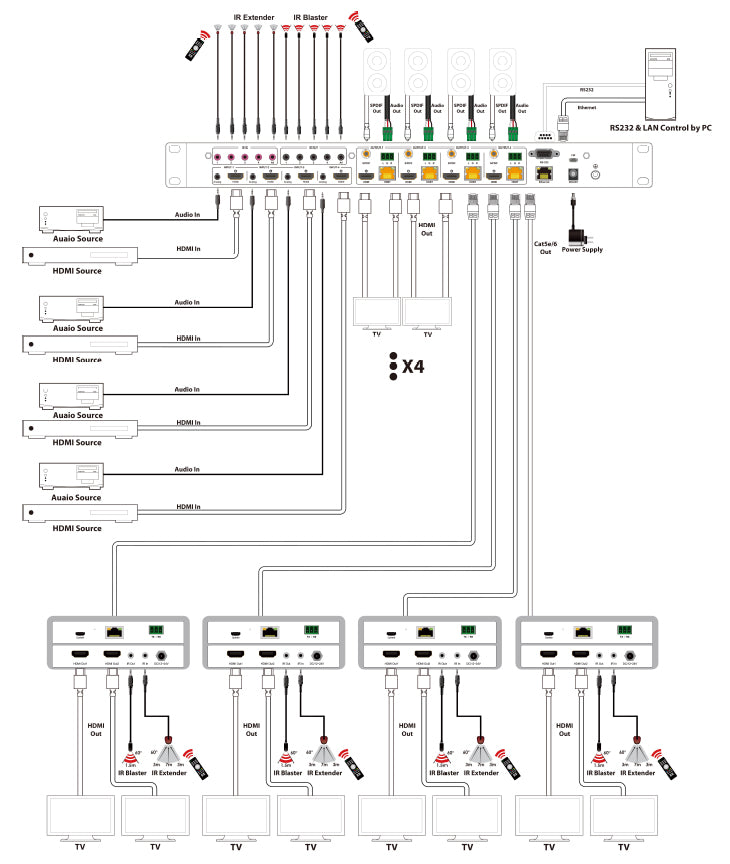

This 4x4 HDBaseT HDMI matrix switch enables you to connect up to four HDMI sources to up to four HDMI displays. It can transmit from 115ft (35m) away at a resolution of 4K@60Hz or 230ft (70m) away at a resolution of 1080P@60Hz. Any one of the four inputs can be displayed on any one of the four outputs. It is typically used to connect HDMI sources such as DVD players, Blu-ray players, satellite receivers or gaming systems to HDMI displays such as HDTVs, HD projectors or HDMI monitors.
Features:
Specifications
4x4 HDBaseT HDMI Matrix CAT5E/6 35m (4K*2K @60Hz 4:4:4) with 4 Receivers
This 4x4 HDBaseT HDMI matrix switch enables you to connect up to four HDMI sources to up to four HDMI displays. It can transmit from 115ft (35m) away at a resolution of 4K@60Hz or 230ft (70m) away at a resolution of 1080P@60Hz. Any one of the four inputs can be displayed on any one of the four outputs.
Color: Black
Housing: Metal Enclosure
Dimensions: 438mm L x 394mm W x 44mm H (Main Unit)139.4mm L x 66.8mm W x 20mm H (Main Unit)
Rackmountable: Compliant, with 1U rack design
Operating Temperature: -5° to 40°C
| Product | 4x4 HDBaseT HDMI Matrix CAT5E/6 35m (4K*2K @60Hz 4:4:4) with 4 Receivers |
| Color | Black |
| Housing | Metal Enclosure |
| Dimensions | 438mm L x 394mm W x 44mm H (Main Unit)139.4mm L x 66.8mm W x 20mm H (Main Unit) |
| Rackmountable | Compliant, with 1U rack design |
| Operating Temperature | -5° to 40°C |
| Operating Humidity Range | 5 to 90% RH (no condensation) |
| Storage Temperature | -10° to +60°C |
| Input Voltage | 125 V |
| Power Consumption | 68 watts (Max) - Main Unit2.5W, 5W - Receiver |
| Power Supply | 24V1A |
| Input | 4 x HDMI Female |
| Output | 4 x HDBaseT (RJ45) Female |
| Video Resolution (35m) | Maximum 4K*2K@60Hz |
| Video Resolution (70m) | Maximum 1080p@60Hz |
| Video Formats Supported | 4K@60Hz,YUV4:4:4 8bit 4k@30Hz/1080P/1080i/720P/576P/480P/576i/480i |
