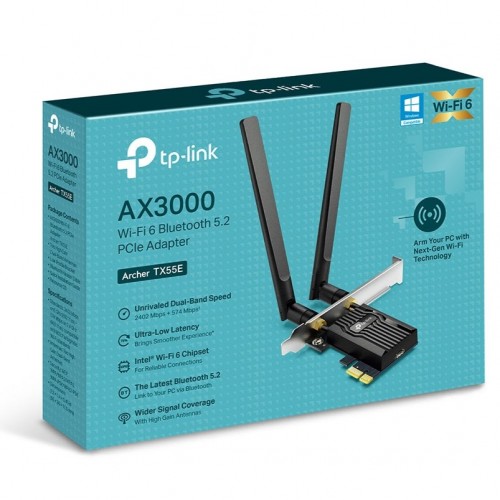

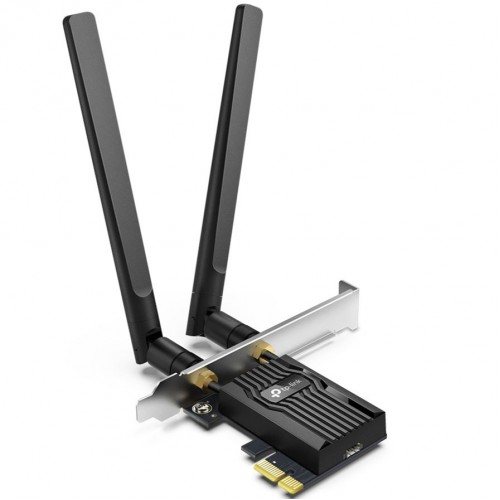

TP-Link Archer TX55E AX3000 WiFi 6 Bluetooth 5.2 PCIe Adapter
$62.49
In stock
— ships in 1 business day
Description
TP-Link Archer TX55E AX3000 WiFi 6 Bluetooth 5.2 PCIe Adapter; HARDWARE FEATURES; Dimensions2.4 x 1.4 x 0.45 in; (55 x 36 x 11.5 mm); Antenna TypeTwo High-Gain Dual Band Antennas; ChipsetIntel Wi-Fi 6 Chipset; BLUETOOTH FEATURES; Standards and ProtocolsBluetooth 5.2, Bluetooth 5.0, Bluetooth 4.2, Bluetooth 4.0; InterfaceF_USB 2.0; WIRELESS FEATURES; Wireless StandardsIEEE 802.11ax/ac/n/a 5 GHz; IEEE 802.11ax/n/g/b 2.4 GHz; Bluetooth 5.2/5.0/4.2/4.0; WLAN Signal Rate5 GHz; 11ax: Up to 2402 Mbps(dynamic); 11ac: Up to 1733 Mbps(dynamic); 11n: Up to 300 Mbps(dynamic); 11a: Up to 54 Mbps(dynamic); 2.4 GHz; 11ax: Up to 574 Mbps(dynamic); 11n: Up to 300 Mbps(dynamic); 11g: Up to 54 Mbps(dynamic); 11b: Up to 11 Mbps(dynamic); WLAN Reception Sensitivity5 GHz :; 11ax HT160：-56.25dBm; 11ax HT80: -59dBm; 11ax HT40: -62.25dBm; 11ax HT20: -65dBm; 11ac HT160：-62dBm; 11ac HT80: -65.5dBm; 11ac HT40: -69.75dBm; 11ac HT20: -73.75dBm; 11n HT40: -74.5dBm; 11n HT20: -77.5dBm; 11a 54Mbps: -77.75dBm; 11a 6Mbps: -94.5dBm; 2.4GHz :; 11ax HT40: -60.75dBm; 11ax HT20: -63.75dBm; 11n HT40: -73dBm; 11n HT20: -76.25dBm; 11g 54Mbps: -76.5dBm; 11b 11Mbps: -89dBm; WLAN Transmit Power5 GHz : 27dBm(FCC) / 23dBm(CE) (EIRP); 2.4 GHz : 26dBm(FCC) / 20dBm(CE) (EIRP); WLAN ModesInfrastructure mode; Wireless SecuritySupport 64/128 bit WEP, WPA/WAP2/WPA3, WPA-PSK/WPA2-PSK, 802.1x; Modulation TechnologyDBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM, 1024QAM; OTHERS; CertificationCE, FCC, RoHS; Package ContentsArcher TX55E; Two High-Gain Antennas; Low-Profile Bracket; Standard Bluetooth Header Cable; Quick Installation Guide; Resource CD; System RequirementsWindows 10(64-bit) only; EnvironmentOperating Temperature: 0℃~40℃ (32℉~104℉); Storage Temperature: -40℃~70℃ (-40℉~158℉); Operating Humidity: 10%~90% non-condensing; Storage Humidity: 5%~90% non-condensing
Specifications
TP-Link Archer TX55E AX3000 Wi-Fi 6 Bluetooth 5.2 PCIe Adapter
The TP-Link Archer TX55E is an AX3000 dual-band Wi-Fi 6 PCIe adapter that adds fast wireless and Bluetooth 5.2 to a desktop PC. Built on an Intel Wi-Fi 6 chipset, it delivers up to 2402Mbps on 5GHz and 574Mbps on 2.4GHz with 160MHz channels, OFDMA and MU-MIMO. WPA3 security and two high-gain antennas round it out, and standard and low-profile brackets are included for most cases.
Model: Archer TX55E
Wi-Fi: AX3000 Wi-Fi 6, Dual-Band
Bluetooth: 5.2
Interface: PCIe
Antennas: 2 x High-Gain External
| Product | TP-Link Archer TX55E Wi-Fi 6 PCIe Adapter |
| Model | Archer TX55E |
| Chipset | Intel Wi-Fi 6 |
| Wi-Fi Standards | 802.11ax/ac/n/a (5GHz), 802.11ax/n/g/b (2.4GHz) |
| Wi-Fi Speed | Up to 2402Mbps (5GHz) + 574Mbps (2.4GHz) |
| Wi-Fi 6 Features | 160MHz Channels, OFDMA, MU-MIMO, 1024-QAM |
| Bluetooth | Bluetooth 5.2 (Backward Compatible with 5.0/4.2/4.0), via Internal USB 2.0 Header |
| Antennas | 2 x High-Gain Dual-Band External Antennas |
| Security | WPA3, WPA/WPA2, 802.1x |
| Brackets | Standard & Low-Profile Included |
| OS Support | Windows 11 / 10 (64-bit) |
