Antec 750W 80+Bronze PCIE5.1 Non-Modular ATX3.1 Power Supply
Click the image to zoom

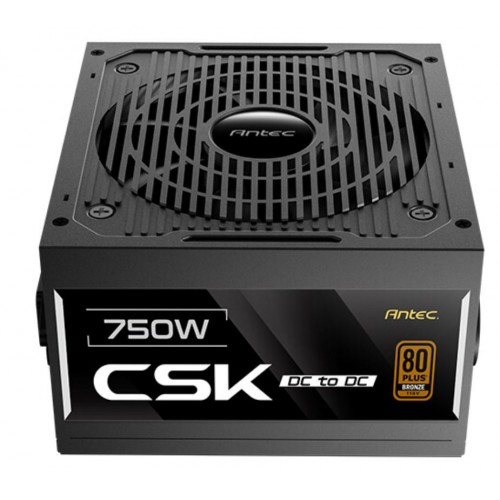

Antec 750W 80+Bronze PCIE5.1 Non-Modular ATX3.1 Power Supply - Black
$96.24
In stock
— ships in 1 business day
Description
750W 80+ Bronze non-modular Power Supply compatible with ATX3.1, with a native 16-pin PCIe 5.1 connector rated to 300W; active PFC; 120mm silent fan; 5-year warranty; connectors include 24-pin main, two 8-pin CPU, four PCIe, six SATA, three Molex
Specifications
Antec CSK750DC 750W 80 PLUS Bronze PCIe 5.1 Non-Modular ATX 3.1 Power Supply
Model: CSK750DC
Warranty: 5 Years
| Brand | Antec |
| Model | CSK750DC |
| Type | ATX 12V 2.52 / ATX 3.1 |
| Color | Black |
| Power Output | 750W |
| Efficiency Rating | 80 PLUS Bronze |
| Modular Type | Non-Modular |
| PCIe Standard | PCIe 5.1 Ready |
| PFC | Active PFC |
| Cooling Fan | 120mm Silent Fan |
| Input Voltage | 100V - 240V |
| Input Current | 12A Max |
| Input Frequency | 50Hz - 60Hz |
| Power Good Signal | 100 - 500 ms |
| Operating Temperature | 0°C - 40°C |
| Protection Features | OCP, OVP, UVP, SCP, OPP, OTP, SIP, NLO |
| Main Power Connector | 1 x 24 (20+4) Pin |
| CPU Connectors | 2 x 8 (4+4) Pin |
| PCIe Connectors | 4 x 8 (6+2) Pin |
| 12V-2x6 Connector | 1 x 16 (12+4) Pin PCIe 5.1 / 300W |
| SATA Connectors | 6 x SATA |
| Molex Connectors | 3 x Molex |
| Certifications | 80 PLUS Bronze, cTUVus, TUV, CB, RCM, CE, FCC, BSMI, KC, UKCA, ICES, BIS |
| Dimensions | 140 x 150 x 86 mm |
| Net Weight | 1.80 kg |
| Gross Weight | 2.00 kg |
| Features | PCIe 5.1 Support, ATX 3.1 Compatible, 120mm Silent Fan, Active PFC, Multiple Protection Circuits |
