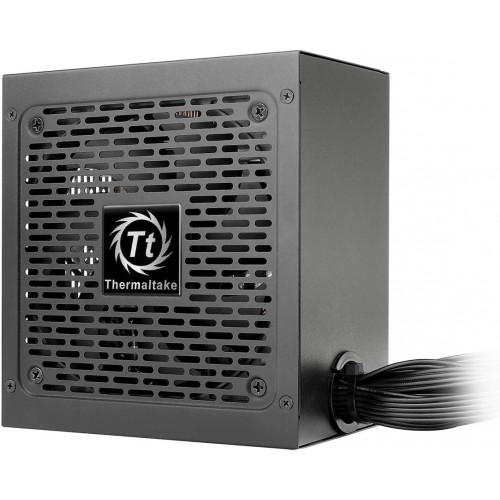

Thermaltake 550W Smart BX1 80+Bronze Non-Modular ATX Power Supply
$74.99
In stock
— ships in 1 business day
Description
550W 80+ Bronze non-modular ATX12V v2.3/EPS v2.92 Power Supply; 550W continuous/660W peak output; 12cm hydraulic-bearing fan; active PFC; rated operating temperature 5-40°C; MTBF at least 100,000 hours
Specifications
Thermaltake Smart BX1 550W 80 PLUS Bronze Non-Modular Power Supply
Model: SPD-550AH2NKB
Part Number: PS-SPD-0550NNFABU-1
Condition: New
| Brand | Thermaltake |
| Series | Smart BX1 |
| Model | SPD-550AH2NKB |
| Part Number | PS-SPD-0550NNFABU-1 |
| Color | Black |
| Type | ATX 12V v2.3 / EPS v2.92 |
| Form Factor | ATX |
| Power Output | 550W |
| Peak Output | 660W |
| Efficiency Rating | 80 PLUS Bronze |
| Modular Type | Non-Modular |
| Cooling Fan | 120mm Hydraulic Bearing Fan |
| RGB Fan | No |
| PFC | Active PFC |
| Input Voltage | 100V - 240V |
| Input Frequency | 50Hz - 60Hz |
| Input Current | 10A Max |
| Power Good Signal | 100 - 500 ms |
| Hold-Up Time | >16 ms at 70% Load |
| +12V Rail Design | Single Rail |
| Output Rail | +12V @ 42A |
| PCIe Connectors | 2 x 6+2-Pin PCIe |
| Operating Temperature | 5°C to 40°C |
| Operating Humidity | 20% to 85% Non-Condensing |
| Storage Temperature | -40°C to 55°C |
| Storage Humidity | 10% to 95% Non-Condensing |
| MTBF | 100,000 Hours Minimum |
| Dimensions | 150 x 86 x 140 mm |
| Safety Approvals | CE, CB, TUV, UL, FCC, BSMI |
| Features | 80 PLUS Bronze Certified, Active PFC, Single +12V Rail, Hydraulic Bearing Fan, Low Noise Operation |
