Thermaltake 550W Smart BX1 RGB 80+Bronze Non-modular ATX Pow
Click the image to zoom

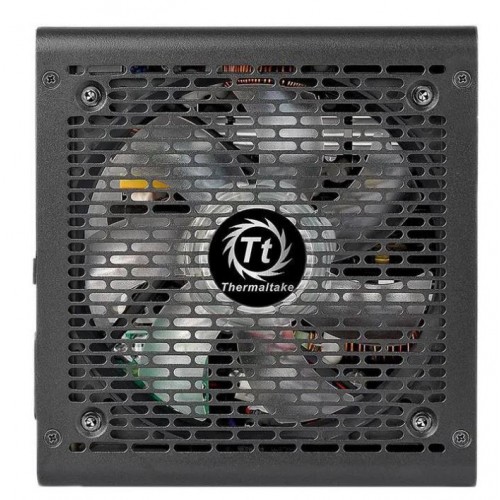

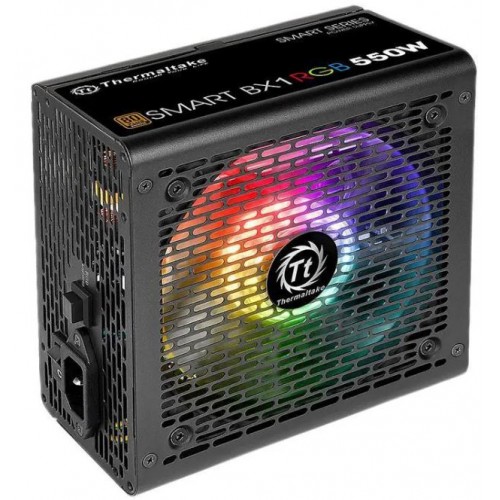

Thermaltake 550W Smart BX1 RGB 80+Bronze Non-modular ATX Power Supply
$73.74
In stock
— ships in 1 business day
Description
550W 80+ Bronze non-modular Power Supply with a 120mm 10-LED RGB smart fan; active PFC; single +12V rail; SLI/Cross Fire ready; connectors include 24-pin ATX, 4+4-pin EPS, two PCIe 6+2-pin, six SATA; MTBF over 100,000 hours
Specifications
Thermaltake Smart BX1 RGB 550W 80 PLUS Bronze Non-Modular Power Supply
Model: PS-SPR-0550NHFABU-1
Condition: New
| Brand | Thermaltake |
| Series | Smart BX1 RGB 550W |
| Model | PS-SPR-0550NHFABU-1 |
| Type | Intel ATX 12V v2.3 / EPS 12V v2.92 |
| Power Output | 550W |
| Efficiency Rating | 80 PLUS Bronze Certified |
| Efficiency | >85% Efficiency |
| Modular Type | Non-Modular |
| Cooling Fan | 120mm RGB Smart Fan |
| RGB Lighting | 10 LED RGB Fan with 7 Colors and 3 Lighting Modes |
| PFC | Active PFC |
| +12V Rail Design | Single Rail |
| Main Connector | 24-Pin ATX |
| CPU Connector | 1 x 4+4-Pin EPS |
| PCIe Connectors | 2 x 6+2-Pin PCIe |
| SATA Connectors | 6 |
| Molex Connectors | 4 |
| Floppy Connector | 1 |
| Input Voltage | 100V - 240V |
| Input Frequency | 50Hz - 60Hz |
| Input Current | 10A |
| Output Rail | +12V @ 38A |
| SLI Ready | Yes |
| CrossFire Ready | Yes |
| Over Voltage Protection | Yes |
| Maximum PSU Length | 140 mm |
| MTBF | >100,000 Hours |
| Capacitors | 105°C Japanese Main Capacitors |
| Dimensions | 3.39" x 5.51" x 5.91" |
| Certifications | 80 PLUS Bronze, CE, CB, TUV, UL, FCC, BSMI |
| Features | RGB Fan Lighting, Single +12V Rail, Japanese Capacitors, SLI & CrossFire Ready, Intel C6/C7 Support |
