Thermaltake 700W 80Plus Smart Non-Modular ATX Power Supply
Click the image to zoom

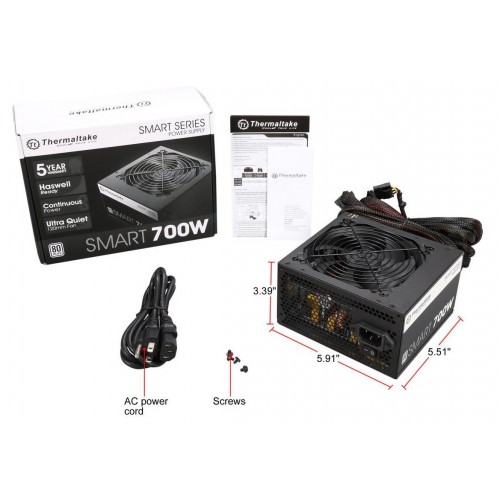

Thermaltake 700W 80Plus Smart Non-Modular ATX Power Supply
$83.74
In stock
— ships in 1 business day
Description
700W 80 Plus Certified non-modular ATX12V 2.3 Power Supply; single 120mm fan rated 1800 RPM; active PFC; SLI/Cross Fire ready; connectors include 20+4-pin ATX, 4+4-pin EPS, two PCIe 6+2-pin, six SATA; MTBF over 100,000 hours
Specifications
Thermaltake Smart 700W 80 PLUS Non-Modular ATX Power Supply
Model: PS-SPD-0700NPCWUS-W
| Brand | Thermaltake |
| Series | SMART Series |
| Model | PS-SPD-0700NPCWUS-W |
| Type | Intel ATX 12V 2.3 |
| Power Output | 700W |
| Efficiency Rating | 80 PLUS Certified |
| Efficiency | 80% - 87% Efficiency @ 20% - 100% Load |
| Modular Type | Non-Modular |
| Cooling Fan | 120mm Fan (1800 RPM ±10%) |
| PFC | Active PFC |
| +12V Rail Design | Single Rail |
| Main Connector | 24-Pin ATX (20+4) |
| CPU Connector | 1 x 4+4-Pin EPS |
| PCIe Connectors | 2 x 6+2-Pin PCIe |
| SATA Connectors | 6 |
| Molex Connectors | 5 |
| Floppy Connector | 1 |
| Input Voltage | 100V - 240V |
| Input Frequency | 50Hz - 60Hz |
| Input Current | 12A Max |
| Power Good Signal | 100 - 500 ms |
| Hold-Up Time | 16 ms Minimum at 60% Load |
| Haswell Ready | Yes |
| SLI Ready | Yes |
| CrossFire Ready | Yes |
| Maximum PSU Length | 140 mm |
| MTBF | >100,000 Hours |
| Protection Features | OVP, UVP, OCP, OPP, OTP, SCP |
| Dimensions | 86.11 x 150.11 x 139.95 mm |
| Weight | 2.11 kg |
| Certifications | 80 PLUS, CE, CB, TUV, UL, FCC |
| Features | 80 PLUS Certified, Single +12V Rail, SLI & CrossFire Ready, Active PFC, Intelligent Fan Control, Intel ATX12V 2.3 Compliant |
