M12 8-pin X-Code Male Connector
Click the image to zoom

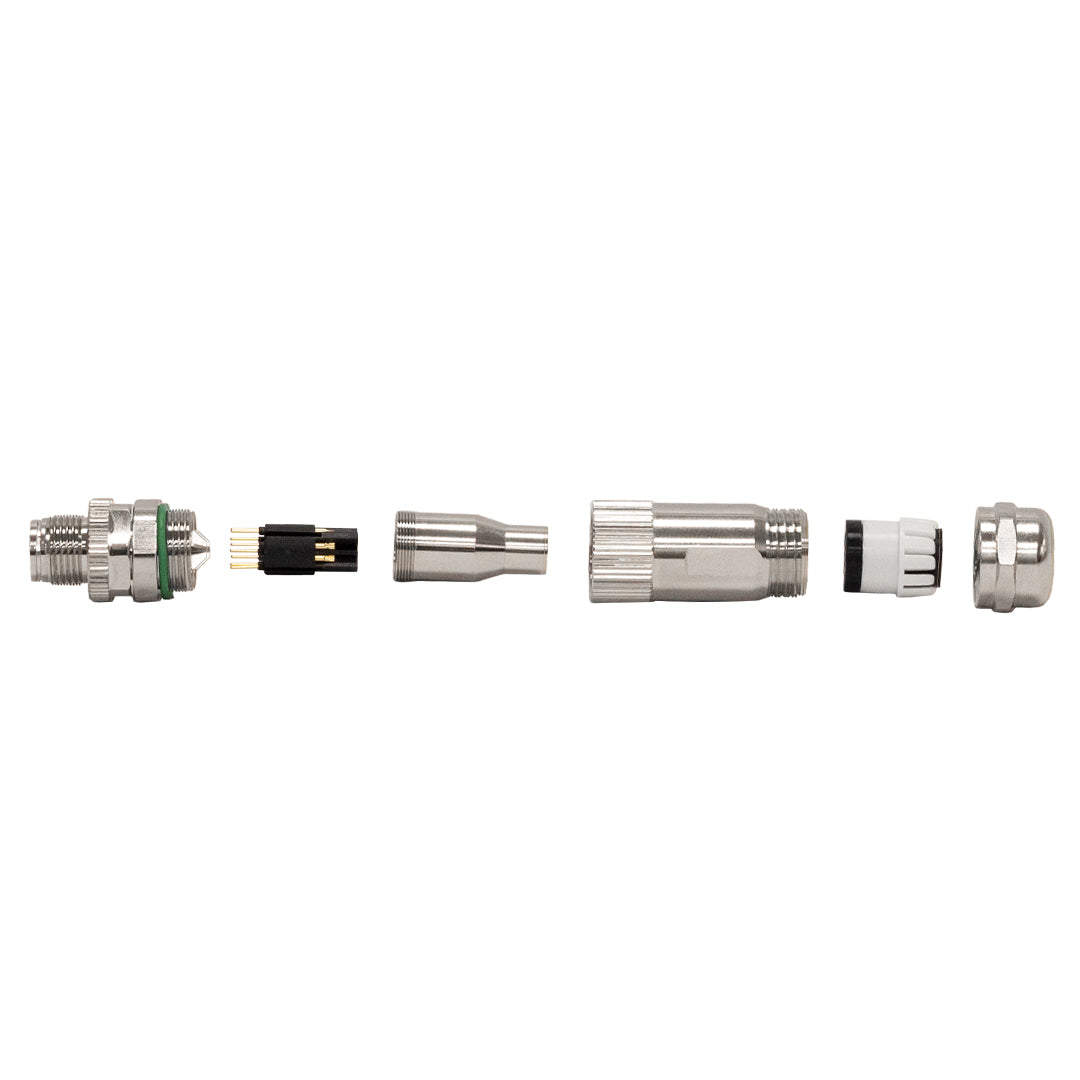

M12 8-pin X-Code Male Connector
$32.66
In stock
— ships in 1 business day
Description
This M12 X-coded 8-pin male connector features a metal housing and crimp for 6–8mm cables. With 50VAC/60VDC/16A power rating, it’s ideal for industrial automation, sensors, robotics, and more.
Specifications
M12 8-pin X-Code Male Connector
This M12 X-coded 8-pin male connector features a metal housing and crimp for 6–8mm cables. With 50VAC/60VDC/16A power rating, it’s ideal for industrial automation, sensors, robotics, and more.
Color: Silver
Gender: Male
Housing: Metal
Contacts: 8
Termination: Solder
| Product | M12 8-pin X-Code Male Connector |
| Color | Silver |
| Gender | Male |
| Housing | Metal |
| Contacts | 8 |
| Termination | Solder |
| Cable Diameter | 6 ~ 8mm |
| Pin Contact Material | Copper-zinc alloy (CuZn) |
| Socket Contact Material | Copper-tin alloy (CuSn) |
| Contact Plating Material | Gold |
| Mechanical Operation | ＞100 mating cycles |
| Temperature Range | -25℃ to 85℃ |
| Rated Voltage | 50VAC / 60VDC |
| Rated Current(40℃) | 16A |
| Contact Resistance | ≤10mΩ |
| Insulation Resistance | ≥100MΩ |
