M12 4-pin D-Code Male Connector
Click the image to zoom

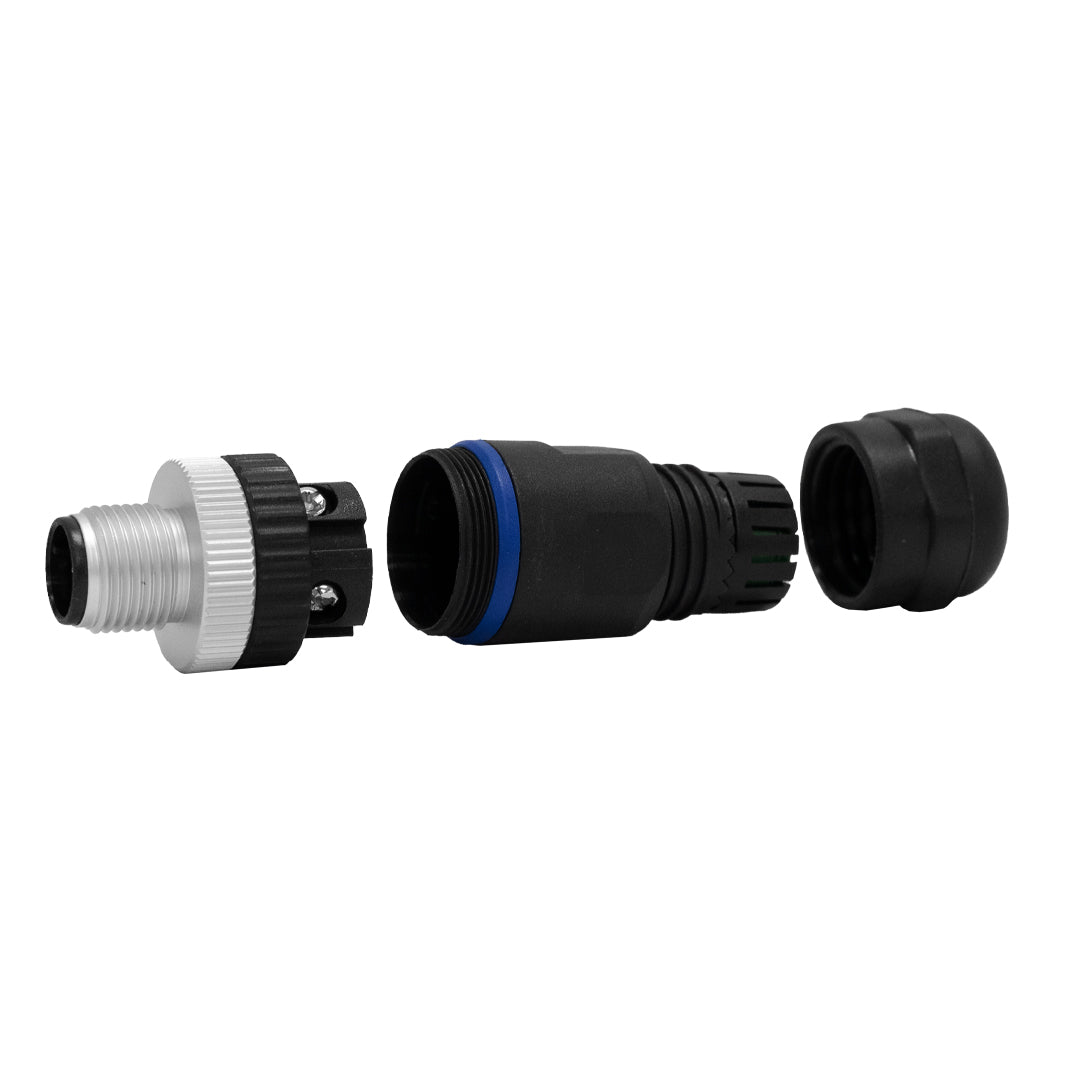

M12 4-pin D-Code Male Connector
$11.90
In stock
— ships in 1 business day
Description
This M12 D-coded 4-pin male straight connector features a plastic housing and screw clamp for 6–8mm cables. With 250V/4A power rating, it’s ideal for industrial automation, sensors, robotics, and more.
Specifications
M12 4-pin D-Code Male Connector
This M12 D-coded 4-pin male straight connector features a plastic housing and screw clamp for 6–8mm cables. With 250V/4A power rating, it’s ideal for industrial automation, sensors, robotics, and more.
Color: Black
Gender: Male
Housing: Plastic
Contacts: 4
Termination: Screw clamp
| Product | M12 4-pin D-Code Male Connector |
| Color | Black |
| Gender | Male |
| Housing | Plastic |
| Contacts | 4 |
| Termination | Screw clamp |
| Cable Diameter | 6 ~ 8mm |
| Pin Contact Material | Copper-zinc alloy (CuZn) |
| Socket Contact Material | Copper-tin alloy (CuSn) |
| Contact Plating Material | Gold |
| Mechanical Operation | ＞100 mating cycles |
| Temperature Range | -25℃ to 85℃ |
| Rated Voltage | 250V |
| Rated Current(40℃) | 4A |
| Contact Resistance | ≤10mΩ |
| Insulation Resistance | ≥100MΩ |
