L6-30R Power Cord Connector - Screw on
Click the image to zoom

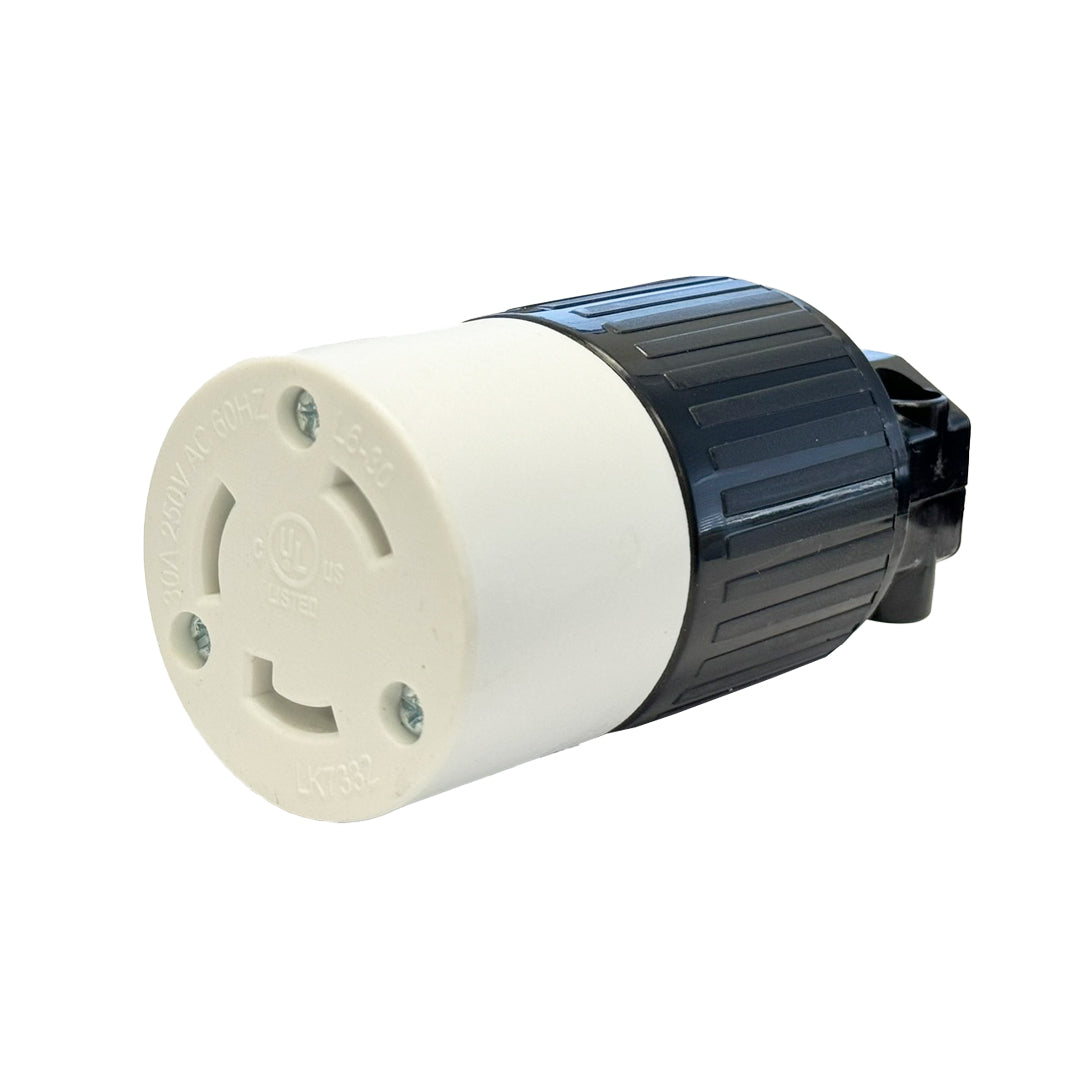

L6-30R Power Cord Connector - Screw on
$15.00
In stock
— ships in 1 business day
Description
This L6-30R power cord connector is a 2-pole 3-Wire grounding heavy-duty plug. The tough nylon body provides impact and chemical resistance. The powerful offsetting cord grip clamps on individual conductors and outer cord jacket prevents strain on the terminals.
Specifications
L6-30R Power Cord Connector - Screw on
This L6-30R power cord connector is a 2-pole 3-Wire grounding heavy-duty plug. The tough nylon body provides impact and chemical resistance. The powerful offsetting cord grip clamps on individual conductors and outer cord jacket prevents strain on the terminals.
No. of Poles: 2-Pole
No. Of Conductors: 3 Wires
Connectivity: Screw Terminals
Contact Holder & Terminal Retainer Material: Polycarbonate
Housing Material & Cord Clamp: Nylon
| Product | L6-30R Power Cord Connector - Screw on |
| No. of Poles | 2-Pole |
| No. Of Conductors | 3 Wires |
| Connectivity | Screw Terminals |
| Contact Holder & Terminal Retainer Material | Polycarbonate |
| Housing Material & Cord Clamp | Nylon |
| Contact Material | Copper Alloy |
| Terminal & Ground Screw Material | Brass |
| Wire Size | .375” to .930” (16~8 AWG, 9.5~23.6 mm) |
| Power Rating | 30A 250V |
| Operating Temperatures | Maximum Continuous 65 °C,Minimum -20 °C (w/o impact) |
| Flammability | UL 94 V-0 |
| L6-30R | Female |
| c(UL)us | Compliant |
| RoHS | Compliant |
| REACH | Compliant |
