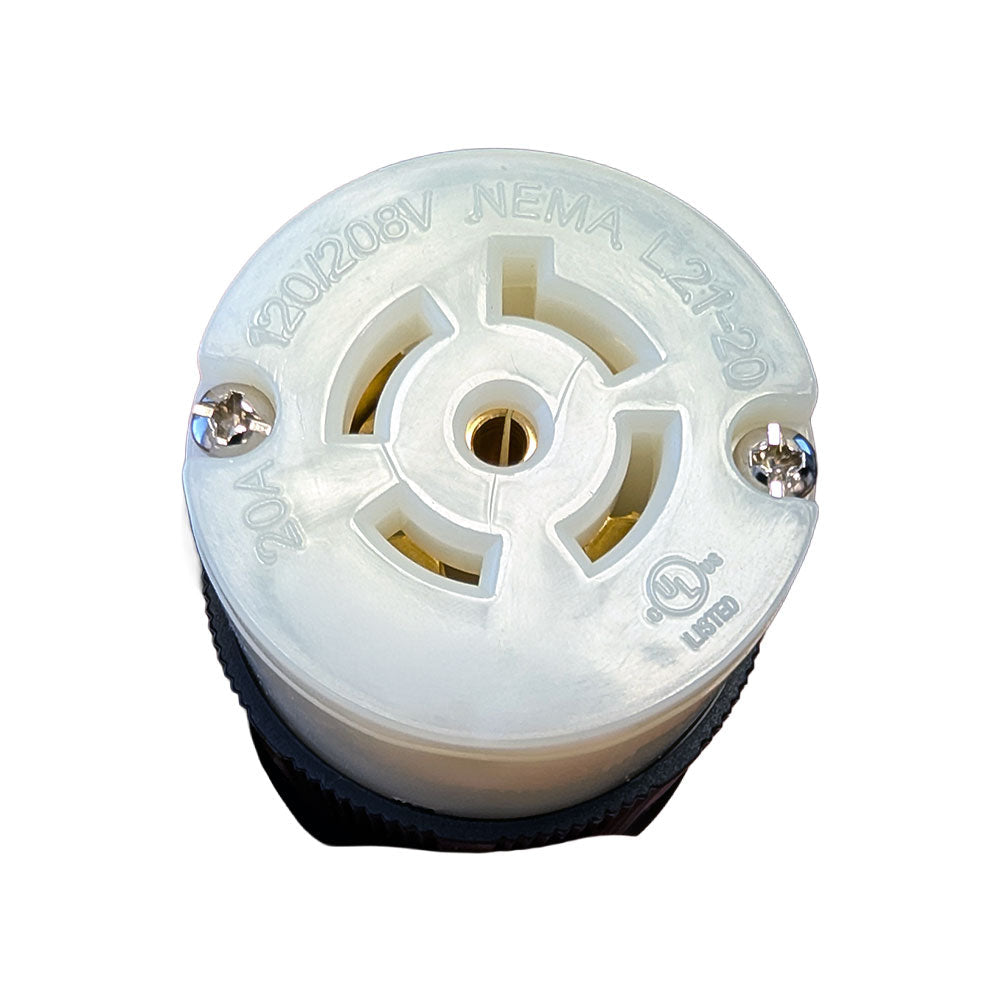

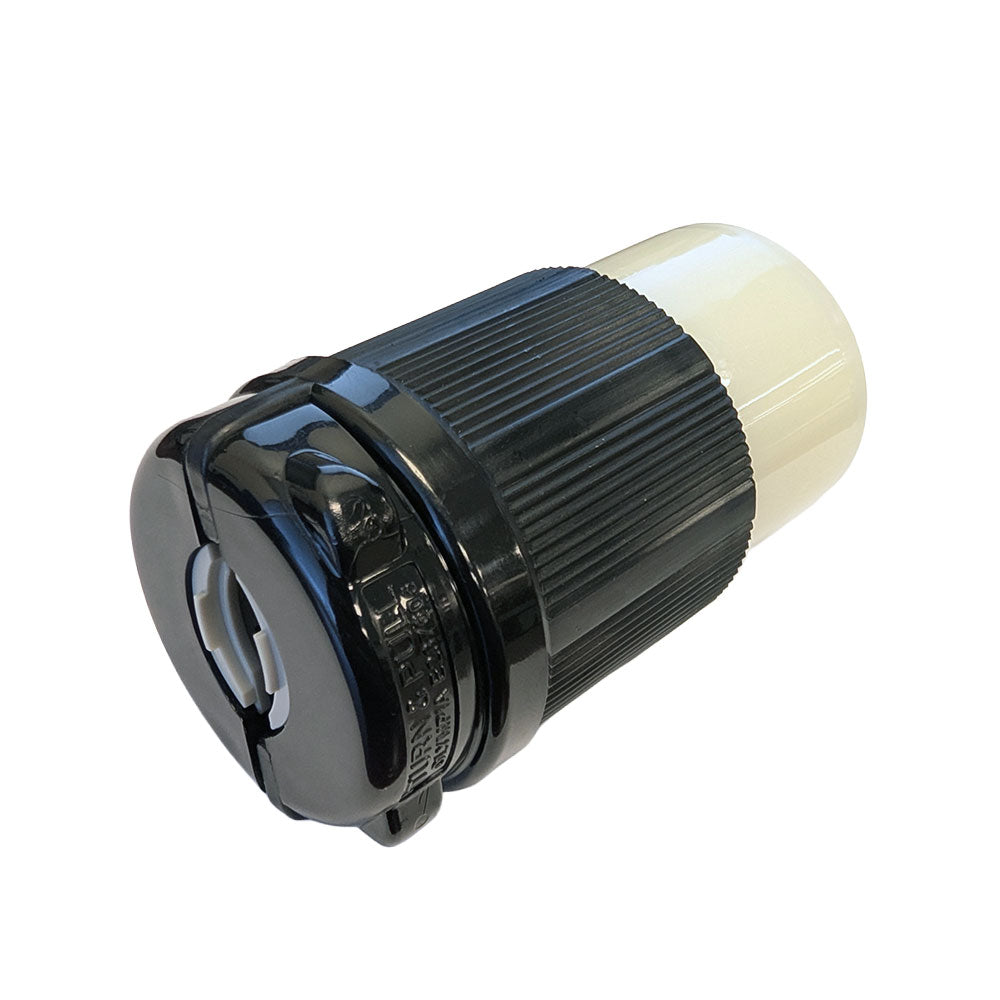

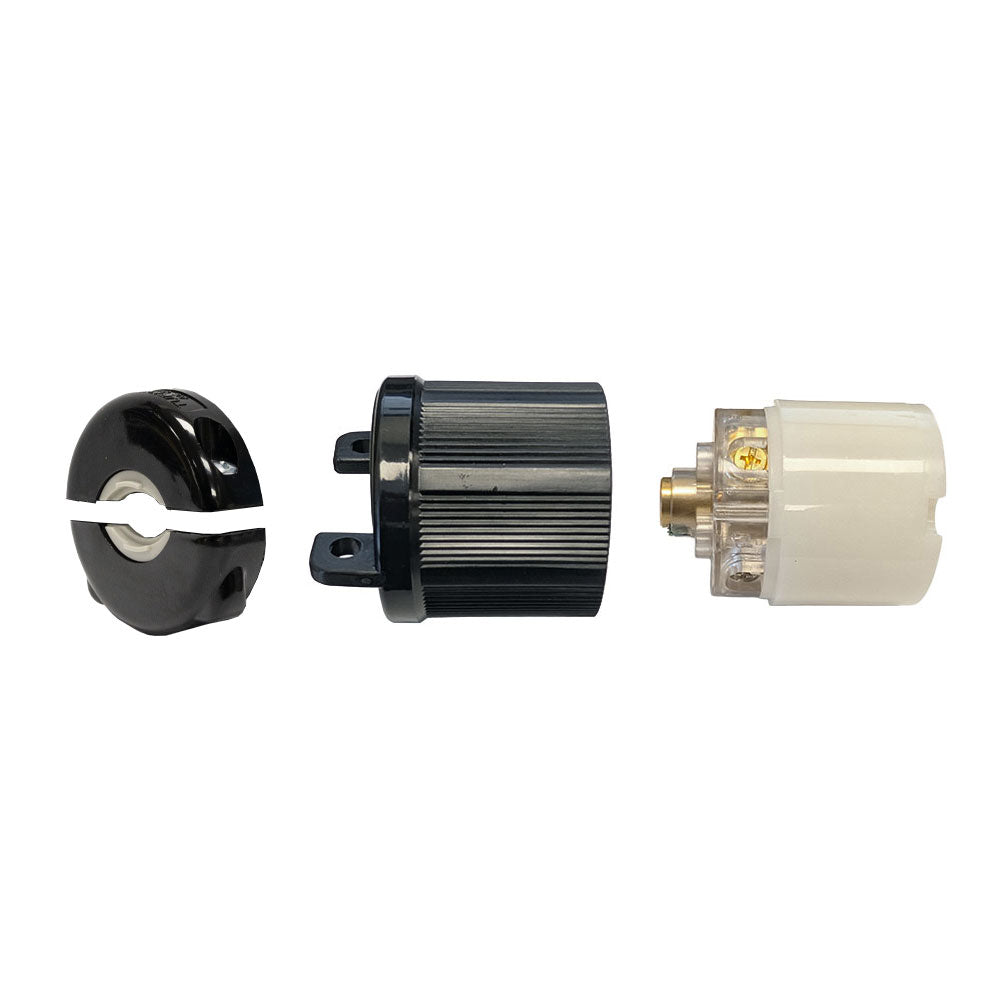

L21-20R Power Cord Connector - Screw on
$29.00
In stock
— ships in 1 business day
Description
This L21-20R power cord connector is a 4-pole 5-conductor grounding heavy-duty plug. The tough nylon body provides impact and chemical resistance. The powerful offsetting cord grip clamps on individual conductors and outer cord jackets prevent strain on the terminals.
Specifications
L21-20R Power Cord Connector - Screw on
This L21-20R power cord connector is a 4-pole 5-conductor grounding heavy-duty plug. The tough nylon body provides impact and chemical resistance. The powerful offsetting cord grip clamps on individual conductors and outer cord jackets prevent strain on the terminals.
No. of Poles: 4-Pole
No. Of Conductors: 5 Conductor
Connectivity: Screw Terminals
Material: Polycarbonate
Operating Temperature: Maximum continuous 75℃ and Minimum -40℃ without Impact
| Product | L21-20R Power Cord Connector - Screw on |
| No. of Poles | 4-Pole |
| No. Of Conductors | 5 Conductor |
| Connectivity | Screw Terminals |
| Material | Polycarbonate |
| Operating Temperature | Maximum continuous 75℃ and Minimum -40℃ without Impact |
| Cable Diameter Range | 0.375 - 1.156 inch |
| Wire Gauge Compatibility | 8-16AWG |
| Power Rating | 20A 120/208V |
| Phase | Three Phase |
| L21-20R | Female |
| c(UL)us | Compliant |
| RoHS | Compliant |
| Package Quantity | 1 |
| Product Weight | 0.15 lbs [0.06kg] |
